Hot Sale 5.5 Ton Wheel Loader ZL50GN With 3m3 Rock Bucket to
Eastern Africa
The performance of ZL50GN is considered to be the best among
loaders. The whole vehicle has good quality. It is mainly used for
shoveling, loading, unloading, transporting bulk materials such as
earth and stone. It can also perform light shoveling operations on
rocks and hard soil. It is comfortable to drive, simple and
flexible to operate, the boom can be lifted quickly, the direction
can be swung flexibly, the stability is very good, the loading and
unloading speed is fast, and it is strong and durable. Accessories
are easy to install and remove, and replacement costs are low.
1. Stronger structure
With a 3.3m ultra-long wheelbase and a 17.5t ultra-large machine
weight, this vehicle is both powerful and capable. 17 tons of
powerful breakout force, leading the industry. 16.5 tons of
powerful traction force, capable of handling various heavy-load
operations effortlessly.
2. Higher reliability
The bucket is made entirely of high-strength steel plates, which
enhances wear resistance and impact resistance by over 30% and
extends its service life. The lubricating oil passages at key hinge
points have been optimized, eliminating the need for drilling holes
on the pins. As a result, the strength and service life of the pins
have more than doubled, setting a new industry standard. Utilize
high-precision steel pipes, argon arc butt welding, and surface
spraying techniques to effectively prolong the service life. New
dust-proof respirators made from advanced materials are fully
implemented to ensure system cleanliness and prolong the lifespan
of components. The new desert filter has a better filtration
effect, effectively protecting the engine and enabling it to handle
high dust conditions with ease.
3. Improved driving comfort
It adopts a single-handle pilot control hydraulic system, which
provides precise control and easy operation. Additionally, the
operating force required is only 1/3 of that required by ordinary
products. Introducing a new luxury air-conditioned cab that is
well-sealed, spacious, and offers a wide field of view. It features
multi-window three-dimensional air supply for rapid defrosting, as
well as quick heating or cooling capabilities.
The new digital combined instrument panel is beautiful and elegant.
The steering gear is adjustable both front and rear, providing a
comfortable operation experience. The working device is equipped
with an automatic leveling function, which enhances work efficiency
and reduces labor intensity at any position.
The cab and hood have been dampened and noise-reduced, resulting in
a reduction of more than 6 decibels in noise levels. The interior
is fully covered and exquisite, with a molded rubber floor that is
sealed and dust-proof. Additionally, a multi-functional re-tractor
is included to create an excellent operating environment for you.
4. Easier maintenance
The new frame structure, engine hood, and large flip-up side door
make maintenance more convenient. The pressure of each system is
centrally displayed, making it convenient to monitor the pressure
of each system. A ball valve is installed on the air reservoir to
facilitate tire inflation and daily air filter cleaning in the
field. A centralized fuse box improves the reliability of the
electrical system and makes daily maintenance more convenient.
| Description | Parameter value | Unit |
| Rated operating load | 5500 | kg |
| Bucket capacity | 3 | m³ |
| Machine weight | 17500±300 | kg |
| Dump clearance at maximum lift | 3100~3780 | mm |
| Reach at maximum lift | 1100~1220 | mm |
| Wheel base | 3300 | mm |
| Tread | 2250 | mm |
| Max.breakout force | 175±5 | kN |
| Max.horse power | 160±5 | kN |
| Hydraulic cycle time-raise | ≤6 | s |
| Total hydraulic cycle time | ≤10.5 | s |
| Min. turning radius over tyres | 5925±50 | mm |
| Articulation angle | 38 | ° |
| Gradeability | 30 | ° |
| Tyre size | 23.5-25-16PR | |
| Overall machine dimension L×W×H | 8225×3016×3515 | mm |
| Model | SC11CB220G2B1, Euro II | |
| Rated Power | 162 | kW |
| Travel Speed | 13/17km/h | Ⅰ-gear(F/R) |
| 41km/h | Ⅱ-gear(F) |
ZL50GN Wheel Loader Tyre (23.5-25-16PR) Picture:

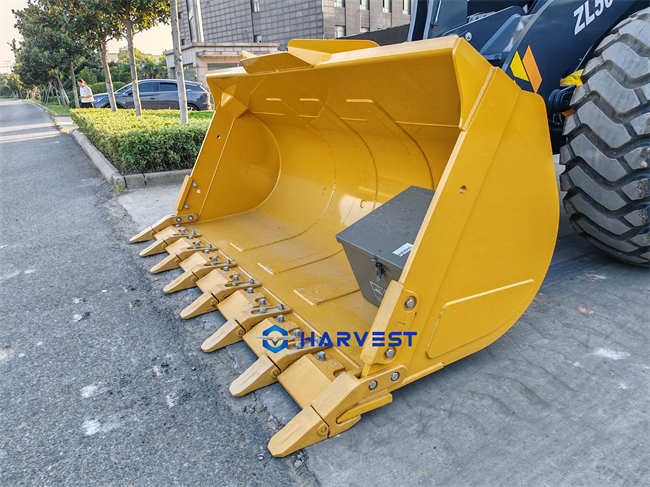

ZL50GN Front Wheel Loader Rock Bucket with Reinforced Rib Pictures:
