Construction Motor Grader GR180 Five Shanked Ripper 142kW Hot Sale
GR180 grader is widely used in large-area ground leveling
operations such as highways, airports, and graders. The reason why
the grader has a wide range of auxiliary operation capabilities is
that its moldboard can complete 6 degrees of movement in space.
1. It adopts a new appearance design.
2. It uses an articulated frame and cooperates with the front wheel
steering to have a small turning radius, so it is maneuverable and
flexible.
3. The gearbox adopts electro-hydraulic control power shifting,
with 6 forward gears and 3 reverse gears.
4. Using international matching hydraulic parts, the operation is
reliable.
5. The blade movement is fully hydraulically controlled.
6. The adjustable console, seat, control handle and instruments are
reasonably arranged and easy to use, improving driving comfort.
7. The rear axle is a three-stage drive axle equipped with a
NO-SPIN self-locking differential.
8. The cab is luxurious and beautiful, with wide vision and good
sealing.
9. It can be equipped with a front bulldozing board, a rear ripper,
a front ripper, and an automatic leveling device.
GR180 Motor Grader Technical Specification
Basic parameters | Engine model | 6CTA8.3-C190-Ⅱ |
Rated power/speed | 142kW/2200rpm |
Overall dimension (standard) | 8900x2625x3420 |
Total weight (standard) | 15400 kg |
Tire specification | 17.5-25 |
Ground clearance (front axle) | 430mm |
Tread | 2156mm |
Space of front and rear axles | 6219 mm |
Space of middle and rear wheels | 1538 mm |
Performance parameters | Forward velocity | 5､8､11､19､23､38km/h |
Reverse speed | 5､11､23km/h |
Tractive effort f=0.75 | ≥79 kN |
Maximum gradeability | ≥25% |
Tire inflation pressure | 260kPa |
Working system pressure | 18MPa |
Transmission pressure | 1.3—1.8Mpa |
Working parameters | Maximum steering angle of front wheel | ±50° |
Maximum slant angle of front wheel | ±17° |
Maximum oscillating angle of front axle | ±15° |
Maximum oscillating angle of equilibrium box | ±15° |
Maximum steering angle of frame | ±27° |
Minimum turning radius | 7.3m |
Scrape knife | Maximum lift height | 450mm |
Maximum cutting depth | 500mm |
Maximum tilt angle | 90° |
Cutting angle | 28°—70° |
Angle of revolution | 360° |
Length & chord height | 3965x610mm |
Oil filling amount | Coolant | 50L |
Fuel tank | 280L |
Engine | 24L |
Transmission | 38L |
Balancing box | 46L |
Drive axle | 28L |
GR180 Motor Grader Pictures

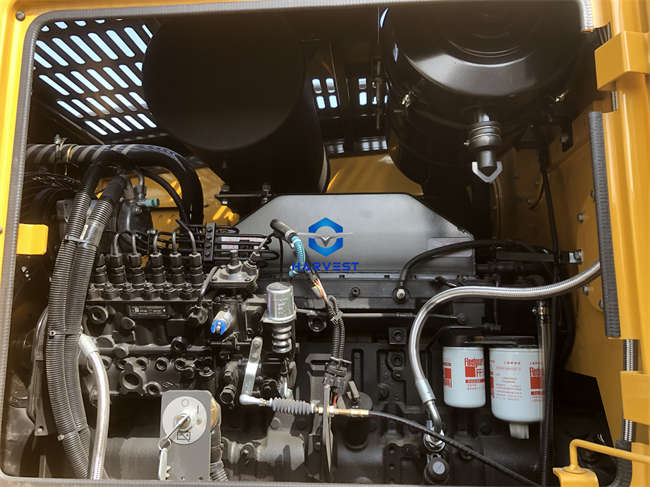

China Road Grader GR180 Engine 142kW Euro 2
Construction Motor Grader GR180 Tyres 17.5-25

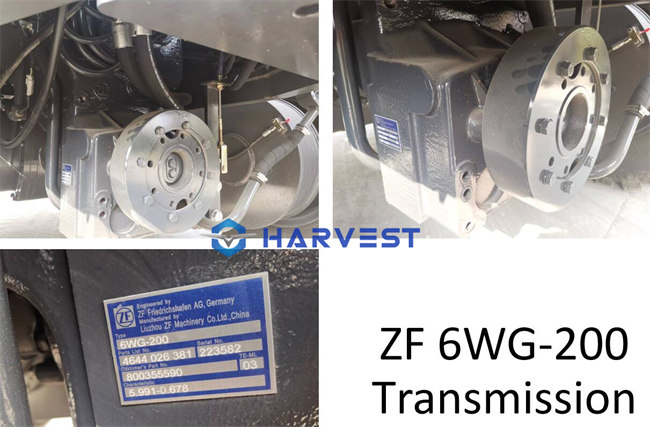

Germany ZF Transmission Of Motor Grader GR180
Shipping
one 40ft container can load 1 unit
