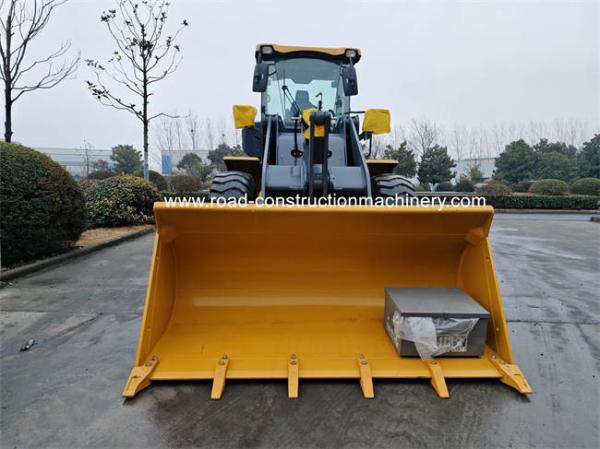

3 Ton Small Wheel Loader LW300FN in Zimbabwei for Construction
The advantages of LW300FN loader include: 1. High reliability: LW300FN loader is made of high-quality materials, has the characteristics of high structural strength and good durability, and can operate stably in various harsh working environments. 2. Powerful functions: LW300FN loader is equipped with a high-performance engine and hydraulic system, with excellent power and work efficiency, and can quickly complete various loading and unloading operations. 3. Easy to operate: LW300FN loader adopts advanced hydraulic transmission technology, with flexible control and easy operation, and can meet the needs of various working scenarios. 4. Good comfort: LW300FN loader adopts a user-friendly design. The cab is spacious and comfortable, the operating console is reasonably laid out, and the operating feel is good, which reduces the operator's work pressure. 5. Easy maintenance: The maintenance of LW300FN loader is very simple, and key components are easy to disassemble and replace, reducing equipment downtime and maintenance costs. 6. High safety performance: LW300FN loader adopts advanced safety technology and has the characteristics of good stability, good braking effect, and good anti-skid performance, ensuring the safety of operators. Generally speaking, LW300FN loader has the advantages of high reliability, powerful functions, easy operation, good comfort, easy maintenance and high safety performance. It is a loader with superior performance. close
3 Ton Wheel Loader Technical Specifications:
Operating Weight: 10,600kg
Dimensions (LXWXH): 7,150mmx2,500mmx3,118mm
Rated Load: 3,000kg
Bucket Capacity: 1.8m3
Dumping Clearance: 2,930mm
Dumping Reach: 1,010mm
Lift Arm Raise Time: 5.6s
Total Hydraulic Cycle Time: 10s
Wheel Base: 2,600mm
Tread: 1,850mm
Articulation Angle: 35o
Min. Turning Radius at Outer Edge of Bucket: 6,060mm
Min. Turning Radius over Outside Tire: 5,165mm
Grade-ability: 28o
Min. Ground Clearance: 405mm
Travel Speed: 0-40km/h
Max. Breakout Force:130kN
Max. Drawing Force: 95kN
WEICHAI WP6G125E22 ENGINE
Rated Power: 92kW /2,200rpm
Displacement: 6.75L
Peak Torque: 530N.m/1,400-1,500rpm
Number of Cylinder-Bore x Stroke: 6-Φ105mm x 130mm
Fuel Tank: 170L
Hydraulic Tank: 170L
