♦What is walk-behind roller?
It is a roller that is operated by both hands for compaction
operations, which requires convenient operation, lightweight, and
suitable for compaction operations in narrow areas and occasions
where large rollers cannot enter.
It is divided into walk-behind single-wheel rollers and walk-behind
two-wheel rollers;
It has the characteristics of easy operation, small size and
compact structure. Convenient transportation, large labor force and
high efficiency. It is suitable for compaction in narrow areas that
cannot be accessed by large rollers.
The roller is used for compacting loose granular soil, gravel,
paving stones and asphalt pavement. It is mainly used in small
places near corners, roadsides, foundations and other structures.

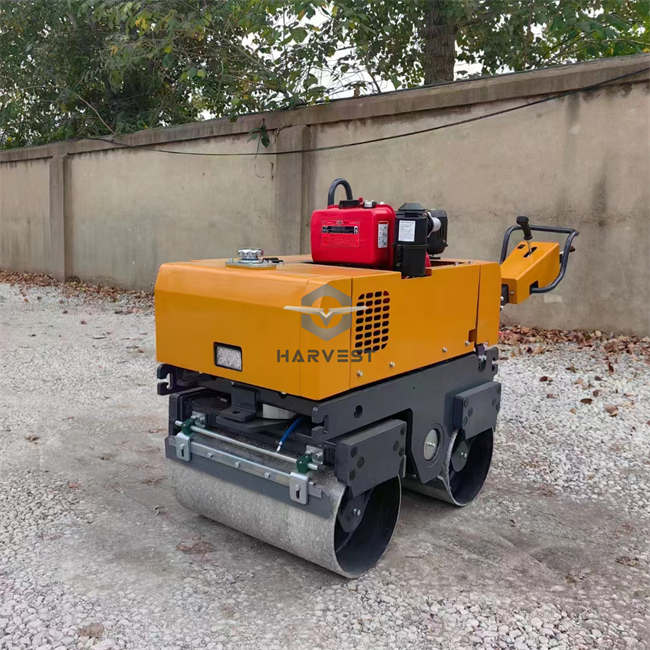

Features of Full Hydraulic Walking-Behind Vibratory Roller SVH80
for Sale
1. Equipped with famous brand engine, could guarantee quality
stability and excellent performance.
2. Hawkeye-shaped body design, wide field of vision, and beautiful
appearance
3. Used international famous brand hydraulic pump and motor, which
can be steplessly shifted and walk forward and backward.
4. LED display instrument panel.
5. Assembled with working light and warning light, could work at
night.
6. Ergonomic chair.
7. Passed CE, SGS and ISO certification and won Red Star Award
design.
8. The steel wheels are equipped with outline marker lamps, could
ensure the safety of the operator.
Product Introduction
⇒ This machine uses diesel engine as the power source, which is
powerful, reliable and durable.
⇒ Fully enclosed chain and V-belt drive reduce wear and tear on
parts.
⇒ Drum made of manganese plate lasts longer than drum made of
ordinary steel.
⇒ Integrated design of operating mechanism, more convenient and
comfortable operation.
⇒ Imported BDU, durable and reliable.
⇒ The machine can work back and forth, which is more efficient and
more convenient to use.
⇒ Compact structure and beautiful appearance.
| ITEM NO/DETAILS | SVH80 | SVH80C | SVH80S |
| ENGINE | | |
| Engine | HONDA GX390 | CHANGFA/CHANGCHAI180F | GOLDEN FLYING FISH RD90N-1 |
| Engine type | Single cylinder, OHV, air-cooled, four-stroke, gasoline | Single cylinder, vertical, air-cooled, four-stroke, diesel | Single cylinder, vertical, water-cooled, four-stroke, diesel |
| Number of cylinders | 1 |
| Output power (KW) | 9.7 | 4.8 | 5.88 |
| Rating speed(RPM) | 3600 | 2400 |
| Fuel consupmtion(G/KWH) | 313 | 320 | 330 |
| Lubricating oil volume(L) | 1.1 | 1.65 | 1.85 |
| DRIVING | | |
| Electrical equipment(V) | 12 |
| Drive mode | Variable plunge pump, stepless speed change, two wheel |
| Walking speed (KM/H) | 0--3.5 |
| Theoretical climbing ability(%) | 30 |
| STEERING | |
| Steering mode | Hydraulic cylinder steering |
| Steering system | Swivel support plate |
| EXCITING SYSTEM | |
| Vibration wheel | __ |
| Drive form | Mechanical transmission, electromagnetic clutch |
| Vibration frequency (HZ) | 65 |
| Vibration amplitude (MM) | 0.5 |
| Exciting force(KN) | 25 |
| SPRINKLING SYSTEM | |
| Water spray form | Gravity-type water |
| CAPACITY | |
| Hydraulic oil capacity(L) | 28 |
| Fuel capacity(L) | 6.5 | 3.5 | 10 |
| Water tank capacity (L) | 30 |
| SIZE | |
| Working width(MM) | 700 |
| Overall length(MM) | 2350 |
| Machine height(MM) | 1700 |
| Ground clearance(MM) | 170 |
| Width of wheel(MM) | 680 |
| Diameter of wheel(MM) | 355 |
| Drum thickness(MM) | 10 |
| WEIGHT | |
| Weight(KG) | 800 |
| Static load(N/CM) | 58/63 | 56/64 | 61.5/65.5 |
