Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck

Henan Harvest Machinery & Truck Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck from wholesalers

    Buy cheap Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck from wholesalers
    • Buy cheap Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck from wholesalers
    • Buy cheap Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck from wholesalers
    • Buy cheap Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck from wholesalers
    • Buy cheap Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck from wholesalers

    Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck

    Ask Lasest Price
    Brand Name : Harvest
    Model Number : HY350
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Harvest HY350 4 Wheel Drive 3.5m3 8 Ton Self Load Concrete Mixer Truck

    4 Wheel Drive 3.5 Self Load Concrete Mixer Mobile Self-Loading Concrete Mixer

    Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
    The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. Compared with concrete mobile mixer, the self loading concrete mixers can bring you great benefits.

    Specification

    mixing drum
    Drum capacity : 4.8m³
    Real capacity : 3. 5M3
    14m3 concrete output/h,up to 4 batches per hour
    mixing speed: 3 gears both positive & inversion turns;
    maxing slewing angle of the drum: 270 degree.
    engine paramters
    Yuchai 4108 Turbo , rated power/turns: 95kw (129HP)/ 2400rpm.
    drive system
    hydraulic component( variable stroke pump) : Danvers
    two grades gear transmission : road/off road, 4wheel drive,two wheel steering
    speed
    low gear speed: 0-9.5km/h, high gear speed : 0-28km/h
    cabin
    front cabin with rops &fops design
    hydraulic sytem
    2 variable stroke pumps provide power separately to car drive and mixer.
    2 constant rate pumps provide power to drum slewing , brake, water.
    cooling: water / air
    joystick
    all working operation designed in one joystick
    bucket
    capacity: 0.6m3 hydraulic controlled door
    chute

    adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement

    water sytem
    water pump with high pressure washing gun
    climbing angle
    30 degree with full load
    brake
    wet brake, parking brake with gear box
    tires
    off-road engineering tire 16/70-20 PR16
    steering
    Back axle steering, all hydrauli
    inner steering radius: 1988mm / 4130mm
    outer steering radius:3767 mm/6030mm
    electric system
    battery : 2X12V 120Ah, provide lighting and ignition
    fuel tank
    110L
    hydraulic oil tank
    80L
    carframe
    all steel welding
    weight
    off load:8t, full load :18t
    weighing system
    equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc.
    discharge
    60°,discharge concrete
    dimension(LxWxH)
    6100*2300*2900

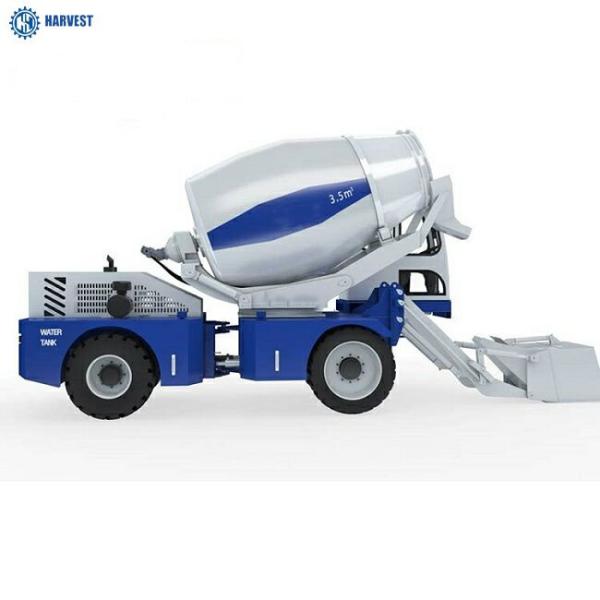

    3.5cbm self-loading mixer
