SEM 655D wheel loader Product Information
SEM 655D wheel loader Product Description
| Main Specifications |
| Rated load capacity (Kg) | 5000 |
| Operating weight with standard bucket (Kg) | 16700 |
| Bucket capacities (M3) | 2.7-4.5 |
| Wheelbase (mm) | 3200 |
| Overall Dimensions L*W*H (mm) | 8085×2963×3463 |
| Engine |
| Model | 6LT9.3 |
| Rated power (kW) | 162 |
| Rated speed (r/min) | 2000 |
| Displacement (L) | 9.242 |
| Operating Specifications |
| Dump clearance (mm) | 3058 |
| Breakout Force (kN) | 168 |
| Articulated angle (°) | 38±1° |
| Hydraulic system |
| Implement system type | Twin pump flow merging hydraulic system |
| System Pressure setting (Mpa) | 17 |
| Hydraulic cycle time (s) | 9.5 |
| Boom Raise time (s) | 5.13 |
| Axle |
| Main drive type | Spiral bevel gear, single stage |
| Final drive reduction type | Planetary type, single stage |
| Rear - oscillating +/- (°) | ±11° |
| Steering system |
| System type | Flow amplifying |
| Steering pump type | Gear pump |
| System pressure setting (MPa) | 16 |
| Steering angle L/R ( °) | 38 ±1° |
| Brake system |
| Service brake | Dry&caliper,Air-to-oil control |
| Parking brake | Drum-type shoe brake,spring applied & oil released |
| Transmission |
| Type | Counter shaft / Power shift |
| Transmission gears | F4/R4 |
| Torque converter type | Single stage 3 elements |
| Maker & type | SEM TR200 |
| Forward I/ Reverse I (km/h) | 7.8 / 7.8 |
| Forward II/ Reverse II (km/h) | 15 / 15 |
| Forward III/ Reverse III (km/h) | 22 / 22 |
| Forward IV/ Reverse IV (km/h) | 39 / 39 |
| Tires |
| Size | 23.5-25 |
| Type | Bias |
| Layers | 16 |
| Textured type | L3 /E3 |
SEM 655D Wheel Loader 5 Ton Front Loader Bucket 3m3 From China
Factory supply
The SEM655D wheel loader is reliable and durable, efficient in
operation, economical and energy-saving, and comfortable in
operation. It is widely used in heavy-duty conditions such as port
aggregates, mine site cleaning, steel plant slag removal, and
large-capacity earth and stone handling. The product has been
widely recognized by customers since its launch.
Sangong Machinery SEM655D Loader
Like you, never rested at mediocrity
Born for pioneering

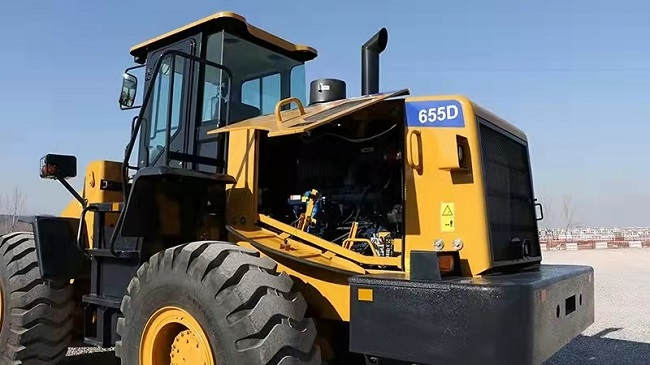

SEM 655D wheel loader Product Display
Efficient hydraulic system makes it easy to use.
The design of three-position four-way valve with floating function,
good micro-motion performance, realizes high-precision operation
Pilot oil high pressure filter to prevent stuck valve
The reliability of the transmission system is a gene engraved in
the bones.
Fixed-shaft gearbox has simple structure, optimized design of key
components, higher reliability and longer life
The first gear has large insertion force, the second gear has a
fast operating speed, and the 1/2 gear combined operation
efficiency is better
Slope operation switch, slope operation is more stable and safer
The optimized torque converter matches the engine more reasonably
and has higher efficiency; the single-stage three-element structure
is simple, the core components are strengthened and the reliability
is higher
Equipped with a drive axle with a carrying capacity of 28 tons,
with large carrying capacity, high reliability and long life

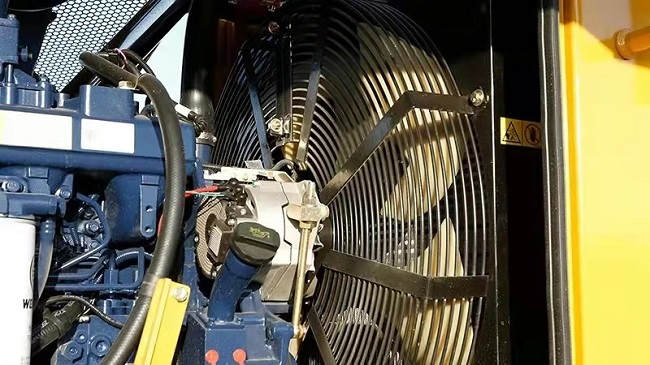

Fast cooling is only a basic skill, but heat balance is the real
skill.
Water temperature and oil temperature can achieve better heat
balance and keep all parts at a better working temperature
Not much need to be repaired, but it saves time and effort and
makes it easier to repair.
The transmission torque converter is installed separately, which is
more convenient for disassembly and maintenance
The fixed-shaft gearbox is simple and reliable in design, easy to
maintain, and low in maintenance cost
Hydraulic system and brake system with pressure measuring
connector, convenient for pressure detection
The water tank protection net can be opened for easy cleaning of
the cooling module
• High and low speed combined work with high-position automatic
leveling device,
Shoveling efficiency is greatly improved
• Its heavy-duty frame is equipped with a mature fixed-axis drive
system,
The overhaul period under heavy load conditions has been extended
year-on-year;
• The design of the three-position four-way valve with floating
function allows you to work finely,
Achieve high-precision operations;
• The front and rear frame positioning pins adopt tapered roller
bearings,
Higher carrying capacity and safer;
• Slope operation switch, slope operation is more stable and safer;
• The pilot oil high-pressure filter prevents stuck valves.
162kW 2000rpm
Rated load
5000 kg
Operating weight
16500 kg
Mold forming panoramic cab,
It's more than just vision.
• Humanized cab not only means better vision,
The mechanically adjustable high-back suspension seat is also more
comfortable.
• Side doors with sliding windows provide good ventilation and
lower noise.
• The wind direction of the instrument panel is adjustable, which
is more convenient for defrosting.
Big seat
Integrated inductance meter
no matter where
Its performance is amazing.
Different working conditions have different requirements for
loaders. Whether it is port aggregates, mine site cleaning, steel
mill slag removal, large-capacity earth and stone handling, the
SEM655D loader can meet various needs in medium or heavy load
conditions, and at the same time It is also suitable for the
handling of loose objects such as sand and gravel plants, coal
cargo yards and construction sites.
Specification:
