HB62K 62m 8x4 Concrete Pump Truck With Benz Chassis

The HB62K pump truck is a lightweight series of concrete pump trucks independently developed by . With the excellent quality of "safe, reliable, environmentally friendly and leading", it is ahead of the domestic industry and synchronized with the international advanced technology. It is the ultimate pump truck with four-axle "X" outriggers. If you need welcome to contact us get good price.
Main technical highlights of the product
(1) Four-axle Mercedes-Benz chassis: This chassis is National III emission, with high power, high torque, high efficiency and energy saving, and strong off-road capability. The first and second axles are front steering axles with high driving stability and flexibility. The vehicle is short in length and beautiful in appearance.
(2) Chassis engine direct power: Take power directly from Mercedes-Benz original engine gearbox, abandon the traditional pump truck transfer case power take-off method, and have high reliability and stability during operation.
(3) Six-section "RZ" folding arm: The self-developed computer simulation optimization algorithm for the boom of the pump truck is far ahead of the peers. The fine pump truck boom structure layout is the most compact model of the existing pump truck. Based on the bionic 6-section boom technology, the boom is easy to extend, the boom has a wide range of fabrics, and the fabric is flexible, with a maximum fabric height of 62 meters.
(4) The outriggers can be stretched flexibly and the whole vehicle has high stability: the first three-stage "X" type telescopic and rear swing type outrigger structure greatly improves the stability of the pump truck. It has the function of unilateral operation to meet the construction requirements of narrow sites.
(5) Unique skirt valve technology: equal bending moment design, uniform force on the bearing parts at both ends of the large shaft, low wear and long life; uniform contact between the end faces of the glasses plate and cutting ring, small wear, long service life, and reduce the ease of user replacement Number of damaged parts.
(6) Adopting industry-leading full hydraulic reversing open system technology: The Schwing hydraulic system is completely hydraulic in the reversing signal detection, processing, reversing, buffering and other processes, without any electrical components, and is truly full hydraulic Technology, pollution-free and high reliability.
(7) Integrate Schwing pumping hydraulic reversing buffer control technology: reduce the impact of pumping reversing by 80%, effectively reducing the vibration of the whole vehicle; the reliability of the entire hydraulic system is further improved, and the mean time without failure rate is further extended by 800 hour.

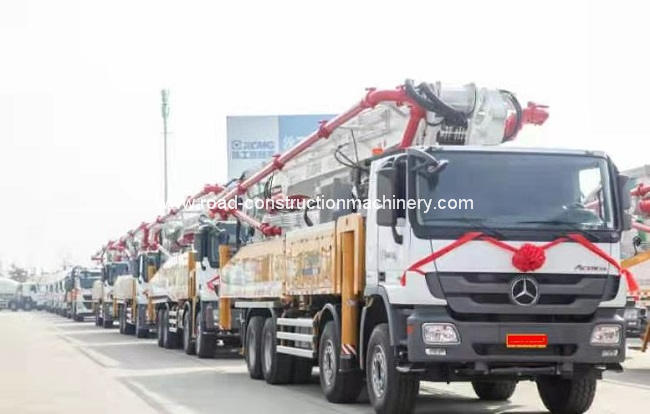

Pump Truck Picture
