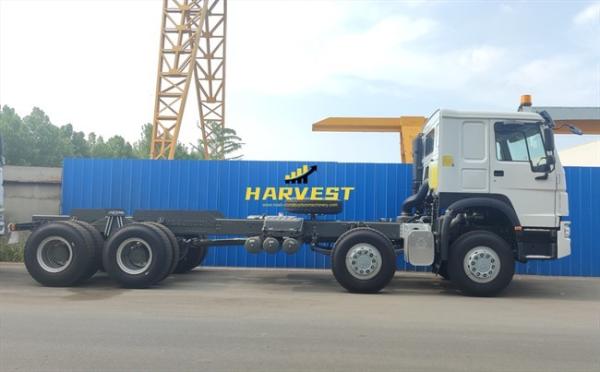

Hot-sale Sinotruk Howo 8x4 Diesel 400hp Heavy Duty Cargo Truck chassis

Hot sale Sinotruk Howo 8x4 Diesel 400hp Heavy Duty Cargo Truck Chassis

Our HOWO trucks are a good choice for transporting all kinds of goods. The good quality and stability of Sinotruk 8x4 truck will benefit you. It is equipped with 76 cab, 1 berth and air conditioner for you to drive more comfortable. The transmission is HW19710 manual transmission with 10 forward gears and 2 reverse gears.

Advantages:

The price advantage of this product is obvious. The truck has a powerful engine and a sturdy frame, making it suitable for all kinds of road conditions, especially difficult ones. Due to its reasonable structure and superior performance, this truck can be used in various road conditions.
During production, the whole truck frame is rust cleaned and sandblasted before being painted.
Before delivery, the truck body is sprayed with wax to prevent pollution by seawater during transportation.
Our after-sales service provides technical support and training. We can customize the products for you according to your requirements.

Specification

Engine	Engine model	W12.400E201, Euro II emission standard
	Maximum output(kw/rpm)	294/1900(400hp)
	Maximum torque(nm/rpm)	1800/1000-1400
	Displacement (L)	11.596
	Pattern (Type)	6-cylinder in-line with water inter cooling, two valve & the supercharger in the back
Cab	Driving type	Left Hand Drive (RHD is optional)
	Cab type	HW76 flat roof cab with one bed, with A/C. Up and down, front and back, adjustable steering wheel, VDO instrumentation and control module, double locking structure belt, sun shade
Clutch	Single-plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance, standard 430B type
Transmission	HW19710; 10 speeds; main & vice structure
Steering	ZF8118, German advanced technology
Front axle	VGD95 drum type
Rear axle	HC16, double reduction
Fuel tank	400L
Electrics	Operating voltage (single wire system): 24V; Generator: 1540W;
	Starter: 24V, 7.5Kw; Battery: 2X12V, 165Ah, 2 batteries
Brakes	Service brake; Parking brake; Auxiliary brake & ABS/EVB ( is optional)
Tires/ Wheel	12.00R20, 12pcs + 1 spare
Chassis	Front/rear suspension semi-elliptic reinforced leaf springs & Shock absorber & The horizontal stabilizer
Other optional	All lights device: Cigar-lighter, horn, headlamps, fog lights, brake lights
	Optional: Recorder & Traveling data etc
Weight Parameters	Kerb. Mass		13070kg
	Total mass		31000kg
performance parameters	Max. speed		102km/h
	Max. gradeability		50%
	Approach/departure angle		16/15(degree)
Dimension Parameters	Overall dimension		9800×2496×3048(mm)
	Wheel base		1800+3800+1350(mm)

SINOTRUK HOWO 8x4 Heavy Duty Cargo Truck Chassis: Spare Tire Rack

HOWO 8x4 Heavy Duty Cargo Truck Chassis: Intake Pipe

Hot-sale 400hp HOWO 8x4 Heavy Duty Cargo Truck Chassis: Front Mirror
