HBXG SD8N Crawler Bulldozer With Cummins Engine 257kw, Elevated
Sprocket
1. Powerful power system: SD8N bulldozer are track-type dozer with elevated sprocket,
hydraulic direct drive, semi-rigid suspended and hydraulic
controls. Equipped with power separating hydraulic-mechanic type
Torque converter, planetary, power shift and one lever control
transmission. SD8N bulldozer equipped with Pilot hydraulic control
system. The powerful engine and efficient hydraulic transmission
system make the bulldozer have excellent driving force and driving
ability.
2. Stable and reliable working performance: The stable and reliable working performance is not only based on
the track chassis of the automatic balancing system and the precise
electronic control system, but also in the bulldozer's excellent
smoothness and accurate operation ability. Whether delicate
excavation work is required or efficient steering operations are
required, SD8N bulldozer is able to reliably complete the task.
Even in bad weather or extreme environments, its stable and
reliable performance gives users peace of mind.
3. Multi-functional operation application: Through the replaceable working device, SD8N bulldozer can adapt to
different kinds of working environment, and can be used for a
variety of operations such as land leveling, soil moving, and soil
piling.
4. Humanized operation experience: The humanized operating experience is reflected in the reasonable
design of the console and the reasonable arrangement of buttons, so
that the operator can easily get started. The wide field of view
design allows the operator to better grasp the entire environment
during the operation, ensuring that the work is completed safely
and efficiently.
5. Energy-saving design: The energy-saving design not only uses the advanced hydraulic
transmission system and efficient engine, but also ensures that
SD8N bulldozer can achieve lower fuel consumption and higher work
efficiency. Through energy efficient design, the bulldozer can
reduce costs and emissions during long working hours, while
maintaining efficient and stable working conditions. This design
allows users to focus on engineering tasks without having to think
too much about energy consumption.
Overall, HBXG SD8N bulldozer has the advantages of powerful power
system, stable and reliable working performance, multi-functional
application, humanized operating experience and labor-saving and
energy-saving design. SD8N bulldozer can be equipped with many
optional equipment and attachment, it can be used in road building,
hydro-electric construction, land clearance, port and mine
development and other construction field.
Technical Specification of HBXG SD8N Track Bulldozer
| Parameter | SD8N |
| Overall weight(kg) | 32790 |
| Engine brand | Cummins |
| Engine model | NTA855-C360S10 |
| Rated power(kw) | 257 |
| Rated revolution(rpm) | 2100 |
| Emission standard | Stage 2 |
| Rated fuel consumption(g/kw.h) | 208 |
| Machine external dimensions(mm) | 6103*3940*3549 |
| Track center distance(mm) | 2083 |
| Gradient | 30°/25° |
| Min.ground clearance(mm) | 556 |
| Blade type | Semi-U blade |
| Blade capacity(m³) | 11.24 |
| Max.cutting depth(mm) | 582 |
| Undercarriage type | The track is triangle shape, the sprocket is elevated elastic
suspended. |
| Track shoe width(mm) | 560 |
Number of track rollers (each side) | 8 |
| Pitch (mm) | 216 |
| Max. system pressure (MPa) | 20 |
| Pump type | Gears oil pump |
| System output(L/min) | 220 |
| Gear | 1st 2nd 3rd |
| Forward(km/h) | 0-3.5 0-6.2 0-10.8 |
| Reverse(km/h) | 0-4.7 0-8.1 0-13.9 |

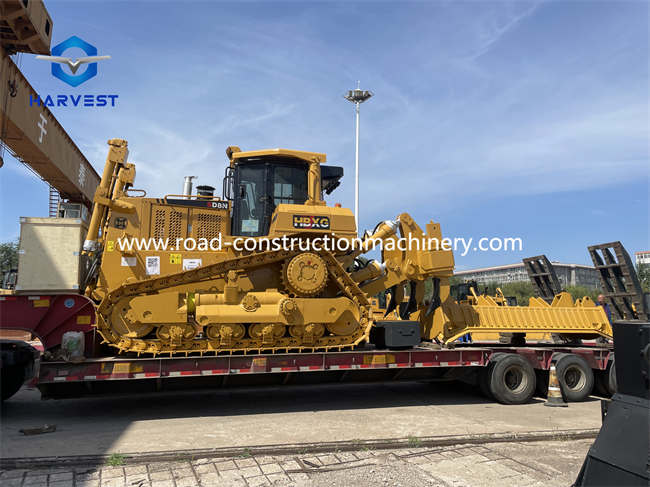

HBXG 257kw SD8N Track Bulldozer With Single Shank
SD8N Elevated Sprocket Track Bulldozer with Semi-U Tilting Blade
