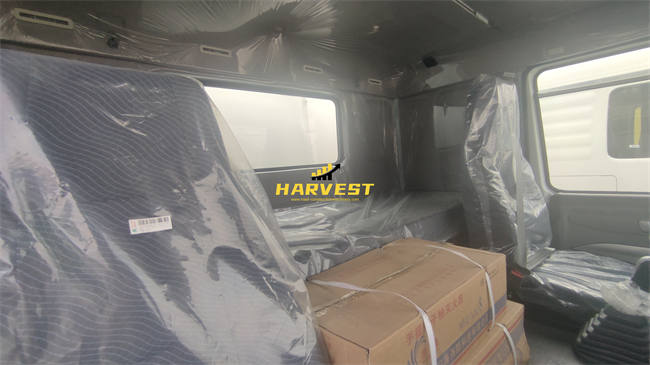

Cabin
| HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper
system with three speeds, damped adjustable driver's seat, with
heating and ventilating system, exterior sun visor, safety belts,
adjustable steering wheel, air horn, air conditioner with
transverse stabilizer, with 4-point support fully floating
suspension + shock absorber |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine, Engine Model: WP12.400E201, Euro2, 400hp cylinder in line with water cooling, turbo-charging & intercooling Displacement: 11.596L |
Transmission | SINOTRUK HW19710,10 forward and 2 reverse, with HW70 flange PTO Ratio: 14.28, 10.62, 7.87, 5.88 , 4.38, 3.27, 2.43, 1.80, 1.34,
1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance. |
| Front Axle | VGD95(drum), 1x9000KGS steering with double T-cross section beam |
| Rear Axles | HC16(drum), 2x16000KGS Pressed axle housing, central single reduction with hub reduction
and with differential locks between wheels and axles Ratio: 4.42 |
| Chassis | Frame: double frame (8/8+300), With Oil Bath Filter Front suspension: 10 semi-elliptic leaf spring, hydraulic
telescopic double-action shock absorbers and stabilizer Rear suspension: 15 leaf semi-elliptic springs, bogie spring and
stabilizer |
| Brake System | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air
operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights,
indicators and reverse light |
| Tires | 12.00R20, radial tires with one spare tire. With 2 U-Pull. |
| Oil Tank | 400L+400L |

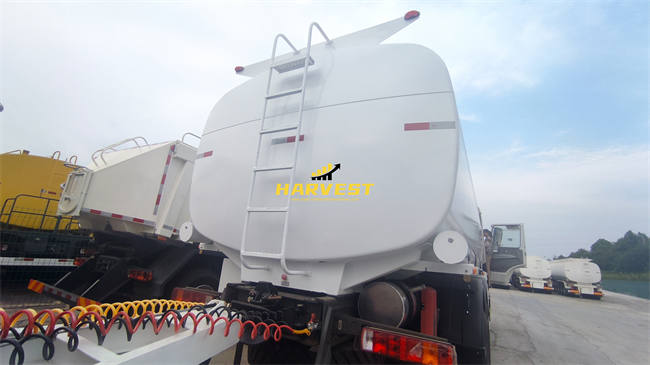

| Fuel Tank | Material: carbon steel Q235B Tank Thickness: 5mm, end plate 6mm Volume: 24000 Liters Compartments: 3, 8000L, 8000L, 8000L 3 European standard manhole with 3 breath valve, 3 sea valve, 3
discharging valve,15m hose, 45L flow, Aluminum alloy folding
handrail, ladder, fueling machine, fueling gun, flow meter, pump,
bottom oil loading system, 10m tube with connection, with trailer system 2 fuel tank & exhaust on one side, petrol control system on another
side Dimension: 8850x2300x1600mm |
| Dimension | 11700x2500x3350mm |
| Color | White |
