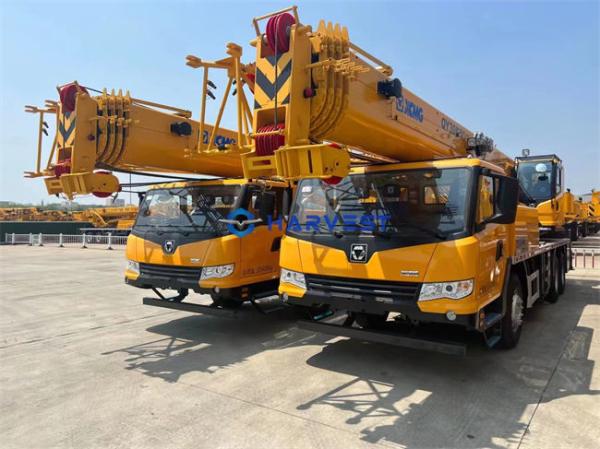

30 Ton Mobile Truck Crane QY30K5C 5-Section Boom Lifting Height 43m
Description: Truck Crane
Model: QY30K5C
Standard Equipment: Shangchai brand SC9DF300.1Q5 electronic turbocharged and inter-cooled diesel engine(221kw/2,200rpm, Euro 5 emission), FAST 8JS125T transmission(8 forward shifts/1 reverse shift), three axles(second axle and third axle for driving, first axle for steering), first axle mechanical steering with hydraulic power assistance, undercarriage constant flow open hydraulic system composed of constant three-way gear pump, power take-off and load-sensing multi-way valve, 5 hydraulic outriggers, cabin with cold and warm air conditioner, left-driving, 5-section u-type telescopic 43m boom, 1-section trussed 9m jib, hirschmann moment limiter, pilot control, one 30t main crane hook, one 3t auxiliary crane hook.
Specifications
1. 3 axles
2. Max. Total Rated Lifting Load: 30,000kg
3. Max. Lifting Height of the Fully-Extended Boom: 42.8m
4. Max. Lifting Height of the Fully-Extended Boom and Jib: 51.1m
5. Base Boom Length: 10.8m
6. Length of the Fully-Extended Boom: 43m
7. Max. Length of the Fully-Extended Boom and Jib: 52m
8. Tyres: 315/80R22.5,
Technical Specification of QY30K5C Telescopic Truck Crane
