8X4 SHACMAN F3000 Heavy Dump Truck Euro 2 Power 400HP ISO Approved
8X4 SHACMAN F3000 Dump Truck Euro 2 Power 400HP Warranty 1 Year
One sleeping bed,Hydraulic main seat, four point hydraulic
suspension, electric control automatic thermostatic air
conditioner, manual window lifter, manual turnover, oil bath air
filter, steel plate bumper, hinged upper pedal, 180Ah maintenance
free battery, reinforced oil pan protective barrier, headlamp
protective barrier, LED tail lamp with protective barrier, nut
protective cap, fuel system anti-theft, battery box anti-theft,
installation of a long-term coarse filter Chassis with spare tire,
rear axle stabilizer bar, mining pattern, sunshade lights are all
yellow, 1 danger warning light, left oil tank, cast front extension
beam + middle traction device, radio with USB connector
With high-quality strength to create greater value for customers,
we provide a 1-year warranty and complete after-sales maintenance
services so that you have no worries. If you need welcome contact
me get good price
SHACMAN F3000 Dump Truck Technical Parameters
| Model | SX3315JU406 |
| Photo (Only for reference) | |
| Drive type | 8x4 Dump truck |
| color | red/blue/green |
| Cabin | |
| Type | F3000 cab |
| Equipments | One sleeping bed,Hydraulic main seat, four point hydraulic
suspension, electric control automatic thermostatic air
conditioner, manual window lifter, manual turnover, oil bath air
filter, steel plate bumper, hinged upper pedal, 180Ah maintenance
free battery, reinforced oil pan protective barrier, headlamp
protective barrier, LED tail lamp with protective barrier, nut
protective cap, fuel system anti-theft, battery box anti-theft,
installation of a long-term coarse filter Chassis with spare tire,
rear axle stabilizer bar, mining pattern, sunshade lights are all
yellow, 1 danger warning light, left oil tank, cast front extension
beam + middle traction device, radio with USB connector |
| kerb mass(kg) | 14600 kgs |
| GVW (kg) | ≤70000 kgs |
| Dimensions | |
| Truck Size(mm) | 10735*2490*3790mm |
| Wheel base(mm) | 1800+3975+1400 |
| Engine | |
| Brand | WEICHAI |
| Model | WP12.400E201 |
| Power(hp) | 400HP |
| Displacement(L) | 11.596L |
| Max. torque | 1,800 N.m／1000-1400 rpm |
| Emmission Standard | Euro II |
| Transmission | |
| Brand | FAST (technology fuller) |
| Model | 12JSD200T-B+QH50 |
| Gear Shift | 12-forwards, 2-reverses |
| Clutch | |
| Diameter(mm) | Φ430 |
| Suspension | |
| Front Suspension | Semi-elliptic leaf springs with shock absorbers |
| Rear Suspension | Semi-elliptic leaf springs |
| Axles | |
| Brand | MAN technology |
| Front axle | 9500kg x2 , MAN |
| Rear axle | 16000kg×2, MAN double reduction axle |
| Ratio | 5.262 |
| Brake | |
| Running brake | Dual circuit compressed air brake |
| Parking brake | Rear wheel spring power brake |
| Assistant brake | Exhaust braking WEVB |
| Tyres | |
| Model | 12.00R20 (12+1pcs) with mine pattern |
| Fuel tank | |
| Tank capacity(L) | 400L Iron tank with protection cover |
| Upper body | |
| Upper body size | 7600×2300×1700mm |
| Upper body thicness | 8mm*6mm |
| Upper body capacity | 30 M3 |

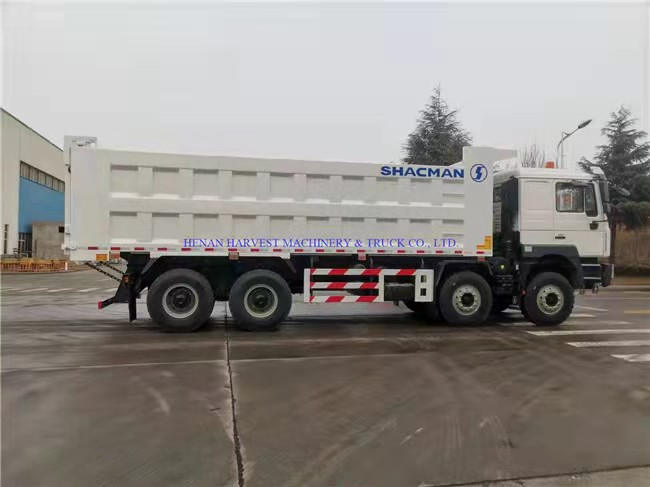

SHACMAN F3000 Dump Truck Picture
