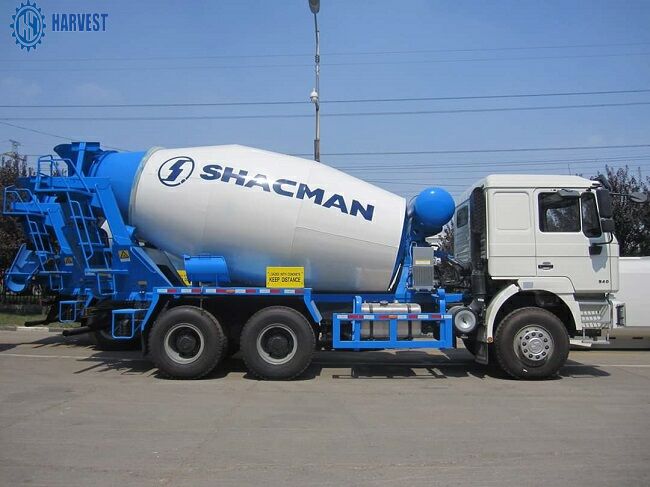

10 Wheelers 6x4 Capacity 10cbm SHACMAN H3000 Concrete Mixer Truck
The H3000 narrow body cab is meticulously engineered for intercity
transportation and construction applications. Its exceptional
maneuverability significantly boosts productivity by facilitating
seamless navigation through urban landscapes, thereby ensuring the
consistent and efficient completion of transport duties.
Concrete mixer truck consists of truck chassis and concrete mixing
delivery device, mixing tank keeping rolling during the
transportation process. It is special purpose vehicle that combines
the functions of concerete mixing and delivery.
Working Principle
The power is obtained from the chassis through the power output
device, which drives the variable pump in the hydraulic system, and
converts the mechanical energy into hydraulic energy in the
metering motor, which drives the speed reducer, which drives the
mixing device and mixes the concrete.
Golden industry chain
Cummins engine: ISM11 electronic diesel engine with 10.8L displacement, the power
range covers 250-440HP to meet EU two to six emission standard.
Fast gear: The market share is over 70%, the market maintenance is 5 million,
the MT, AMT, AT, hydraulic retarder and other product type covers
6-16 gears with high quality, high reliability, high stability and
high cost performance.
Hande axle: German MAN TGS, the product mainly conclude truck axle, bus axle
and engineering vehicles axle, the truck axle include: 3.5T-9.5T
front axle, 6T-16T single and double reduction rear axle, while the
double reduction rear axle has the advantage of light weight,
strong loading capacity and torque capacity in the industry.
Main Configuration
1. H3000 cabin with one sleeping bed, four-point suspension, A/C, hydraulic seat, remote
throttle controller.
2. CUMMINS ISF345 engine, 345hp, euro 3 emission standard, it is
easy for you to get spare parts in local market.
3. FAST 10JSD180 manual gearbox, 10 forward & 2 reverse.
4. MAN 9500kg front axle
5. 16500kg MAN technology drive axles
6. Radial 12.00R20 tyres, 10pcs with 1 spare tire
7. Mixer capacity 10m3, thickness 5mm, end plate 6mm
8. Imported pump, motor and reducer
Specification
| Product Name | SHACMAN 10cbm Mixer Truck |
| Chassis Model | SX5256GJBHR384C |
| Drive type | 6x4 |
| Color | yellow/blue/white |
| Cabin | |
| Type | H3000 Lengthened half-height top cab |
| Equipments | One sleeping bed, four-point suspension, A/C, Hydraulic seat,
remote throttle controller. |
| Curb mass(kg) | 12.500 kgs |
| GVW (kg) | GVWW35,000 kgs |
| Dimensions | |
| Truck Size(mm) | 8575*2495*3774mm |
| Wheel Base(mm) | 3775+1400mm |
| Engine | |
| Brand | CUMMINS |
| Model | ISME345 30+PTO |
| Rated Output | 254KW |
| Displacement(L) | 10.8L |
| Max. torque | 1,710 N.m/ 1000-1200 rpm |
| Emmission Standard | Euro III |
| Transmission | |
| Brand | FAST (technology fuller) |
| Model | 10JSD180 |
| Gear Shift | 10-forwards, 2-reverses |
| Clutch | 430 |
| Battery | 180Ah |
| Suspension | |
| Front Suspension | Multi leaf springs |
| Rear Suspension | Multi Leaf springs |
| Axles | |
| Brand | MAN technology |
| Front axle | 9500kg, MAN |
| Rear axle | 16000kgx2, MAN double reduction driven axle |
| Ratio | 5.262 |
| Brake | |
| Running brake | Dual circuit compressed air brake |
| Parking brake | Rear wheel spring power brake |
| Assistant brake | / |
| Tyres | |
| Model | 12.00R20 (10+1pcs) |
| Fuel tank | |
| Tank capacity(L) | 400L tank |
| material | Aluminium shell |
| Fifth Wheel | |
| model | / |
| mixer tanker |
| capacity | 10 m3 mixer tanker |
| Warranty | 18 months,Unlimited mileage |
