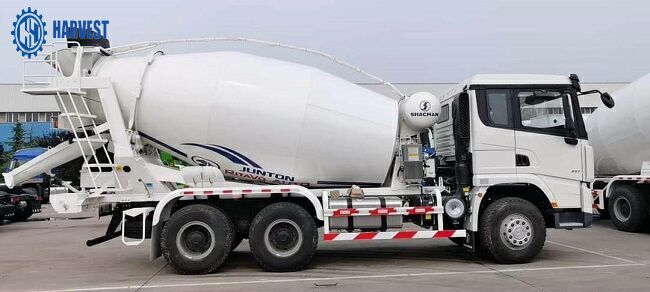

SHACMAN New Model 6x4 X3000 10m3 Transit Mixer with Euro 4 Cummins
350hp Engine
The X3000 series is the continuation of 46 years of technological
innovation. It is a brand new product for logistical
transportation. With outstanding power and fuel economy, a spacious
and comfortable interior and excellent safety, the X3000 series is
the new
Characteristic
New Innovations: The X3000 series is the latest product to be introduced. This
vehicle series boasts many new innovations to increase performance,
efficiency and comfort.
1. Special engine MAP, double cylinder load dump air compressor,
throttle off technology, optimized fan control logic
2. New European style cabin design, full CFD optimization, drag
coefficient decreased to 0.53
3. Intelligent electrical network architecture: Volvo electric
design system
4. Engine inlet and cooling module, large air inlet cross section,
higher air intake, patented cooling system, low air inlet
resistance
5. MAN new single layer lightweight structure frame, formed from
6000T high strength hydraulic press
Superior quaiity: Assembled from the world's top components and assemblies with the
quality of European trucks and the first Chinese truck manufacturer
to pass the European ECE-R29 standard heavy truck collision test.
■ Vehicle attendance rate 16.6% higher than competing products
■ Weichai high powered engines joint with AVL, BOSCH efforts to
build golden power system
■ Cummins high powered engines, five key systems leading the world
■ FAST 12 speed transmission, unique structure of twin shaft main
box, auxiliary box using fine pitch helical gear design
■ Hande 7.5 tons axle and 13 tons maintenance free 2.714 ratio
single reduction axle
■ Internationally famous brand - Williams pedal mechanism, imported
ZF steering machine, Eaton clutch
Main Configuration
1. X3000 cabin with one sleeping bed, four-point suspension, A/C, hydraulic seat, remote
throttle controller.
2. CUMMINS ISF350 engine, 350hp, euro 4 emission standard, it is
easy for you to get spare parts in local market.
3. FAST 10JSD180 manual gearbox, 10 forward & 2 reverse.
4. MAN 9500kg front axle
5. 16500kg MAN technology drive axles
6. Radial 12.00R20 tyres, 10pcs with 1 spare tire
7. Mixer capacity 10m3, thickness 5mm, end plate 6mm
8. Imported pump, motor and reducer
Specification
| Product Name | SHACMAN 10cbm Mixer Truck |
| Drive type | 6x4 |
| Color | yellow/blue/white |
| Cabin | |
| Type | H3000 Lengthened half-height top cab |
| Equipments | One sleeping bed, four-point suspension, A/C, Hydraulic seat,
remote throttle controller. |
| Curb mass(kg) | 12.500 kgs |
| GVW (kg) | GVWW35,000 kgs |
| Dimensions | |
| Truck Size(mm) | 8550*2490*3450mm |
| Wheel base(mm) | 3775+1400mm |
| Engine | |
| Brand | CUMMINS |
| Model | ISME345 30+PTO |
| Power(hp) | 345HP |
| Displacement(L) | 10.8L |
| Max. torque | 1,710 N.m/ 1000-1200 rpm |
| Emmission Standard | Euro IV |
| Transmission | |
| Brand | FAST (technology fuller) |
| Model | 10JSD180 |
| Gear Shift | 10-forwards, 2-reverses |
| Clutch | |
| Diameter (mm) | 430 |
| Suspension | |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Leaf spring suspension |
| Axles | |
| Brand | MAN technology |
| |
| Front axle | 9500kg, MAN |
| Rear axle | 16000kgx2, MAN double reduction driven axle |
| Ratio | 5.262 |
| Brake | |
| Running brake | Dual circuit compressed air brake |
| Parking brake | Rear wheel spring power brake |
| Assistant brake | / |
| Tyres | |
| Model | 12.00R20 (10+1pcs) |
| Fuel tank | |
| Tank capacity(L) | 400L tank |
| material | Aluminium |
| Fifth Wheel | |
| model | / |
| mixer tanker |
| capacity | 10 m3 mixer tanker |
| Warranty | 18 months,Unlimited mileage |
