SHACMAN 6x4 10m3 Transit Mixer Truck with Weichai 380hp CNG Engine
for Uzbekistan
F3000 is designed with an improved driver’s cab utilizing advanced
technologies from the German truck giant, MAN. Spacious,
comfortable and safe, the F3000 cab will bring a peace of mind to
you on the job.
1. Frame type structure, local strengthening design, for maximum
safety
2. Industry leading torsional stiffness and bending stiffness
3. Highly efficient cabin design; reducing drag and increasing air
intake to the engine
4. Toughened laminated windshield glass, ensuring safe operation
5. Greater driver field of vision; allowing better driver awareness
6. Spacious interior and storage space, up to 620mm wide cushioned
bed
Main Parameter
Chassis Model: F3000
Drive type: 6x4, 10 wheelers
Engine: WEICHAI WP12NG380A0, CNG 380hp, Euro III emission standard
Gearbox: FAST brand 10JSD180, 10 forward and 2 reverse
Application: A natural gas vehicle (NGV) is an alternative fuel vehicle that
uses compressed natural gas (CNG) or liquefied natural gas (LNG).
Natural gas vehicles should not be confused with vehicles powered
by LPG (mainly propane), which is a fuel with a fundamentally
different composition.
Methane is the cleanest burning hydrocarbon and many contaminants
present in natural gas are removed at source. Existing
gasoline-powered vehicles may be converted to run on CNG or LNG,
and can be dedicated (running only on natural gas) or bi-fuel
(running on either gasoline or natural gas). Diesel engines for
heavy trucks and busses can also be converted and can be dedicated
with the addition of new heads containing spark ignition systems,
or can be run on a blend of diesel and natural gas, with the
primary fuel being natural gas and a small amount of diesel fuel
being used as an ignition source. It is also possible to generate
energy in a small gas turbine and couple the gas engine or turbine
with a small electric battery to create a hybrid electric motor
driven vehicle.
Specification
| Model | SX5255GJBDT534T CNG MIXER TRUCK |
| Drive type | 6x4 |
| Color | white, yellow, blue |
| Cabin | |
| Type | F3000 cabin |
| Equipments | One sleeping bed, four-point suspension, A/C, Desert air filter |
| Curb mass(kg) | 12,500 kgs |
| GVW (kg) | GVW≤40,000 kgs |
| Dimensions | |
| Truck Size(mm) | 10150*2490*3450mm |
| Wheel base(mm) | 5300+1400mm |
| Engine | |
| Brand | WEICHAI |
| Model | WP12NG380A0+PTO |
| Power(hp) | 380HP |
| Displacement(L | 11.596L |
| Max. torque | 1,500 N.m／1400-1600 rpm |
| Emmission Standard | Euro III |
| Transmission | |
| Brand | FAST |
| Model | 10JSD180 |
| Gear Shift | 10-forwards, 2-reverses |
| Clutch | |
| Diameter(mm) | Φ430 |
| Suspension | |
| Front Suspension | Multiple leaf spring |
| Rear Suspension | Multiple leaf spring |
| Axles | |
| Brand | MAN technology |
| Front axle | 7500kg |
| Rear axle | 16000kg×2, MAN double reduction driven axle |
| Ratio | 5.262 |
| Brake | |
| Running brake | Dual circuit compressed air brake |
| Parking brake | Rear wheel spring power brake |
| Assistant brake | Exhaust braking WEVB |
| Tyres | |
| Model | 12.00R20 (10+1pcs) |
| Gas cylinder | |
| Capacity(L) | 8X150L |
| Material | Steel |
| Mixing tank | |
| Dimensions | 10m3 |
| Filling ratio | 0.67% |
| Fiulling speed | 3.5m3/min |
| Discharging speed | 2m3/min |
| Surplus ratio | 0.005% |
| Range of slump | 50-90mm |
| Mixing tanker | 0-16rpm |
| Gradientof the drum | 12° |
| Tanker diameter | 2300mm |
| Tanker lenghth | 5370mm |
| Tanker materials | δ5.0/Q345 |
| Reducer | Bonfiglioli 580L |
| Pump | SAAO 75 |
| Motor | SAAO 75 |
| Max working press | 32MPa |
| Volume of water tank | 450L |
| Water supply type | air |

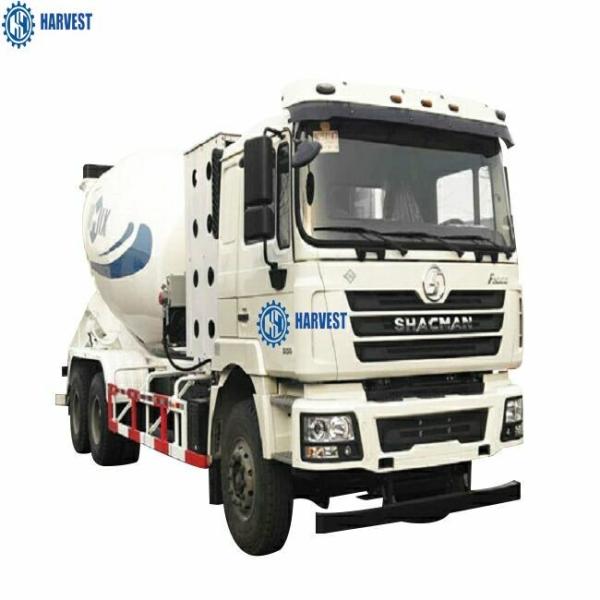

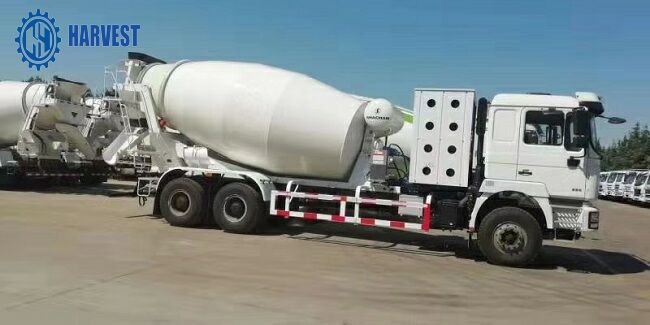

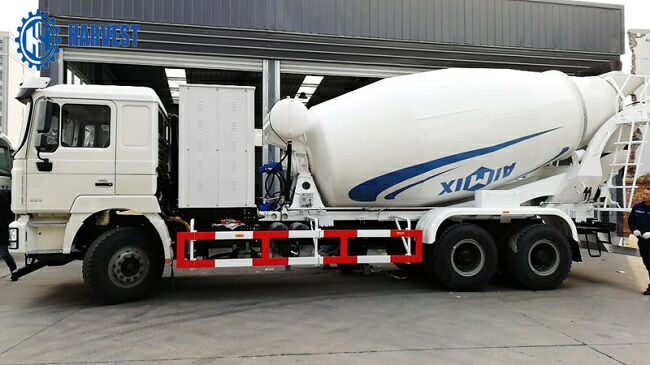

Mixer Picture
