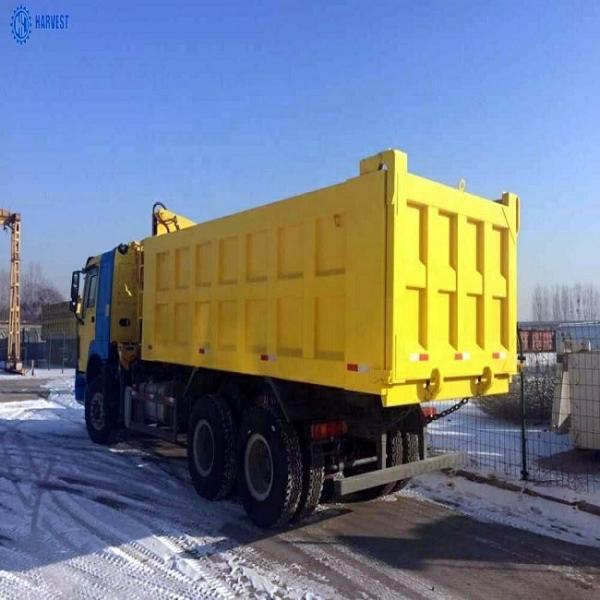

Howo 6x4 Right Hand Drive 30 Ton Dump Truck Munted Crane 5 Ton
Knuckle SQ5ZK2Q
Truck mounted crane is a kind of hydraulic lift and telescopic
system to achieve the goods up and down, rotation, lifting
equipment, usually assembled on the truck. Generally, by the truck
chassis, cargo compartment, take power, crane composition.
1. Advanced R & D and analysis means to ensure design reliability.
2. Four-link mechanism, lifting capacity stronger.
3. Flange telescopic arm connection structure.
4. Independent research and development of the rotating body, with
a strong driving force, may meet more demand conditions.
5. Hexagonal boom technology, good for neutral, cross-section
bending ability.
6. The unique floating three-point bridge structure design,
effectively reduce the vehicle running when the chassis beam bears
the additional force.
Specification of Crane & Truck
| Crane Model | SQ5ZK2Q |
| Max Lifting capacity | 5000kg |
| Max Lifting Moment | 10.5T.M |
| Max. hydraulic outreach | 8.01m |
| Crane Weight | 2011kg |
| Installation space | 1050mm |
| Rotation Angle | 360° all roation |
| Max Oil Flow of Hydraulic System | 25L/min |
| Max Pressure of Hydraulic System | 28Mpa |
| Truck Brand | SINOTRUK HOWO |
| Truck Model | ZZ3257N3847A |
| Driving Type | Right Hand Drive |
| Dimension(L* W * H) | 8545x2496x3600 |
| Cargo body size (L* W* H) | 4400*2300*1300mm bottom 8mm, side 6mm |
| |
| Wheel base (mm) | 3825+1350mm |
| Max speed(km/h) | 75 |
| Curb weight(kg) | 14400 |
Engine
| Model | WD615.69,water-cooled, four strokes, 6 cylinders in line with water
cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel |
| Horse Power, max(kw/rpm) | 336HP |
| Emission | EURO II |
| Fuel tanker capacity | 300L |
| Transmission | Model | HW19710,10 forward gears,2 reverse |
Brake system
| Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Steering system | ZF8198 hydraulic steering with power assistance |
| Front axle | HF9 |
| Rear axle | HC16 |
| Color | Optional |
| Tire | radial 12.00R20 |
| Tire quantity | 10+1 spare tire |
Electrical system
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500w |
| Starter | 7.5Kw/24V |
| Cab | HW76, single sleeper, with A/C, all-steel forward control,
55ºhydraulically tiltable to the front, 2- arm windscreen wiper
system with three speeds, laminated windscreen with casted-in radio
aerial, hydraulically damped adjustable driver’s seat and rigid
adjustable co-driver’s seat, with heating and ventilating system,
outer sun visor, adjustable roof flap, with stereo radio/cassette
recorder, safety belts and adjustable steering wheel, air horn,
with 4-point support fully floating suspension and shock absorbers |
