6 Axles 40m3 70 Ton U-shaped Dump Trailer For Manganese Transport
with Hyva Cylinder
1. 6 axles dump trailer is specially designed for heavy good
transportation, like stone and mining materials. It is strong
enough to carry up 80T in long distance delivery, rough road
situation.
2. The front three axles are air suspension with lifting. The rear
3-axle are mechanical suspension with 10 pieces leaf springs
Main Parameter
Tare Weight: 8500-115000 Kg
Dimension (Lx W x H): 11x2.3x1.65m
Capacity: 40CBM
Payload: 70ton
Side Wall: 6mm strengthened wall
Front Wall: 8mm strenthened
Hydraulic: HYVA hydraulic cylinder
Chassis: Heavy Duty I Beam Chassis
Axle: FUWA
Suspension Mechanical, Air Bags-Optional
Kingpin: JOST 3.5”, Exchangeable
Tire 385/65R22.5 and 315/80R22.5
Our Mission
China Trucks, Global Services
We do this by helping buyers find Trucks and Truck Parts quickly
and efficiently.
One-Stop Shop
Chinatruck.cc brings you hundreds of millions of Trucks in over 22
different major categories, including Heavy Duty Truck, Light
Truck, Special Vehicle, Truck Trailer etc.
Technical Support, Repair Consulting
As a One-stop Shop, we can supply truck and truck parts, and
Technical Support, as Maintenance Video, Maintenance Manual, Spare
Parts Catalogue and Parts Diagrams and so on.
Specification
| Type | 40CBM U-Shape Dump Tipping Trailer with Six Axles |
| Model | ZJV9840UZX |
| Parameter | Inner Dimension(mm) | length×width×height: 11,000x2,300x1,650 |
| King Pin Setting(mm) | 950 |
| Fifth Wheel Height(mm) | The height will be adjusted according to the tractor specification |
| Payload (kg) | 70,000 |
| Fabric | Main Beam(mm) | Submerged arc welding |
| Body(mm) | Floor: 8; Side wall: 6; Wear Resistant Steel NM450 |
| Configuration | Tire
| Type: 385/65R22.5, Triangle brand, equip 6 pcs per chassis;
315/80R22.5, Triangle brand, equip 13 pcs per chassis, (including 1
spare tyre) |
| Rim | Type: 11.75-22.5, equip 6 pcs per chassis; 9.0-22.5, equip 13 pcs
per chassis. |
| Axle | FUWA 13T, 3 sets；Fuwa 16T, 3 sets, without ABS |
| Suspension | The front three axles are air suspension with lifting. The rear
3-axle are mechanical suspension with 10 pieces leaf springs |
| Hydraulic System | HYVA FCA214-5 hydraulic system |
| Landing Gear | CIMC 30T |
| Kingpin | JOST 3.5”, Exchangeable |
| Brake System | Rear 3-axle Dual air brake system, 30/30 type, WABCO brake valve. |
| ABS | Non |
| Electrical System | 24V, LED lamp |
| Paint | primer + top coat, polyurethane paint |
| Spare Tire Carrier | equip 2 set per chassis |
| Tool Box | 1 set |
| Tarp | 1 set |
| Color | optional |

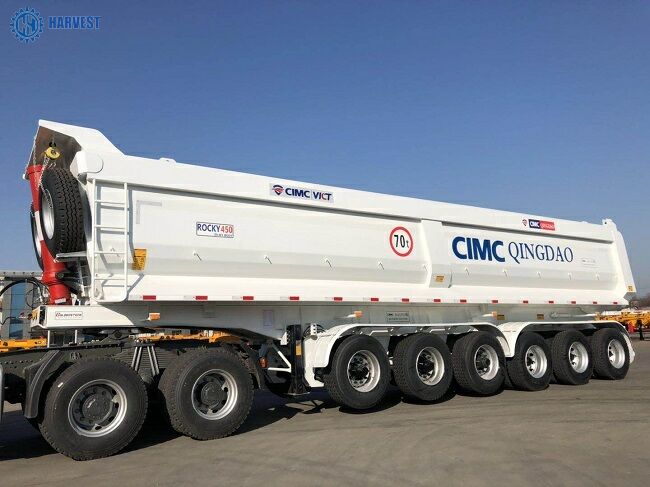

Trailer Pictures
