8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica

Henan Harvest Machinery & Truck Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica from wholesalers

    Buy cheap 8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica from wholesalers
    • Buy cheap 8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica from wholesalers
    • Buy cheap 8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica from wholesalers
    • Buy cheap 8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica from wholesalers

    8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica

    Ask Lasest Price
    Brand Name : HARVEST
    Model Number : LTC208
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica

    8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica

    LTC208 hydraulic vibratory rollers are manufactured according to international advanced technology and using
    imported components from abroad. The machine is a double drums tandem vibratory roller. It is primarily used for
    the compaction of road bituminous course, sand gravel mixtures and RCC material. Being a universal compaction
    equipment for highway, municipal road, park area and industry ground etc.
    Full hydraulic two wheels drive and vibration. Double frequency and double vibration system;
    Reliable CUMMINS diesel engine for convenient operation and maintenance;
    Hydrostatic center articulated steering (optional patented crab mechanism);
    Cabin is comfortable and spacious with air conditioner, and the flexible steering seat facilitate the operation;
    The driver's cabin can be turned on one side as a whole, to facilitate maintenance;
    For-type frame, good hold-down property;
    Hydraulic plunger pump and motors are made by American manufacturer DANFOSS

    Specification of 8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica

    Model
    LTC214
    LTC212
    LTC210
    LTC208
    Operating mass
    kg
    14000/12000
    10000/8000
    Front axle load
    kg
    7000/6000
    5000/4000
    Rear axle load
    kg
    7000/6000
    5000/4000
    Static linear load
    N/cm
    333/286
    238/231
    Form of frame
    Fork-type
    Fork-type
    Water tank capacity
    L
    2×600
    2×400
    Fuel tank capacity
    L
    154
    80
    Hydraulic tank capacity
    L
    65
    65
    Vibration frequency
    mm
    High ampl.
    0.8
    0.67
    Low ampl.
    0.4
    0.34
    Vibration frequency
    Hz
    High ampl.
    40
    45
    Low ampl.
    46
    50
    Centrifugal force
    kN
    High ampl.
    160×2
    90×2
    Low ampl.
    90×2
    69×2
    Travel speed
    km/h
    0-12
    0-10
    Turning radius
    mm
    7000
    6000
    Grade ability
    %
    40
    40
    Steering angle
    °
    ±30
    ±30
    Drum diameter
    mm
    1350
    1150
    Drum width
    mm
    2100
    1730
    Transverse swing angle of the vibrating wheel
    °
    ±8
    ±8
    Type of water spray
    mm
    Pressure
    Pressure
    Wheelbase
    mm
    3717
    3217
    Overall length
    mm
    5060
    4558
    Overall width
    mm
    2250
    1840
    Overall height
    mm
    3300
    2674
    Ground clearance
    mm
    324
    258
    Diesel model
    Cummins 6BT5.9
    Cummins 4BT3.9
    Diesel power
    kw
    110
    75
    Diesel speed
    r/min
    2300
    2400

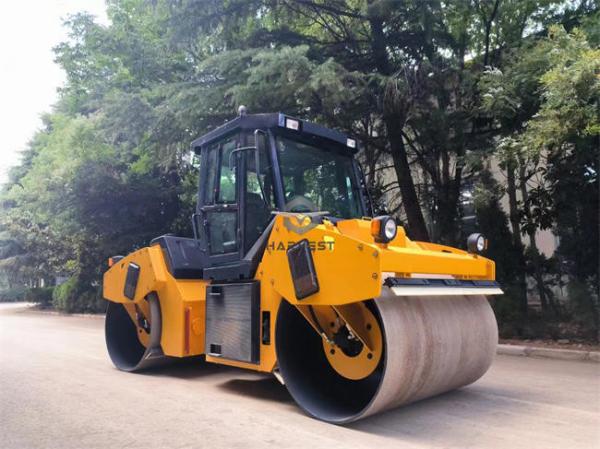

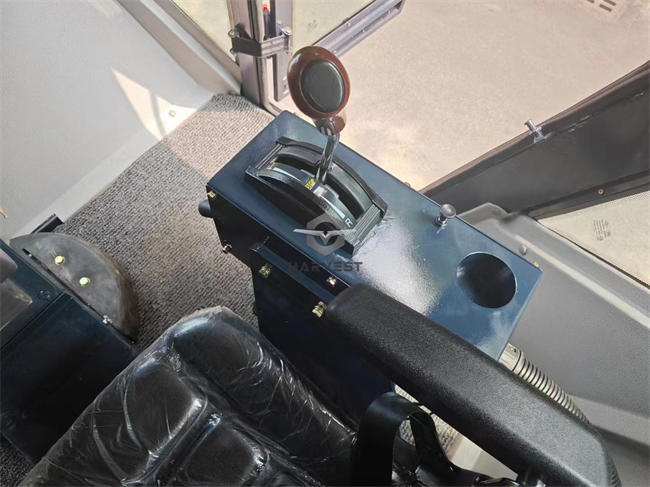

    Detailed Pictures of 8 Ton Tandem Roller Double Drum Roller LTC208 for Sale in Jamaica
