Sinotruk HOWO 6x4 420hp Powerful Dumper 30 Ton U-shaped Dump Truck
Application: This model can meet the requirements of severe environment like
construction site and mining area for short distance transportation
of mining rock, soil as well as engineering construction material.
Advantages
1. Good cargo body structure, high rigidity, hight loading
capacity.
2. Good sealing structure has the better sealing effect.
3. The advanced hydraulic control system helps to avoid wrong
operation, it has higher safety and running efficiency.
4. The whole truck structure has characteristics lower center of
gravity,with higher security when lifting the cargo body.
5. Wonderful apperance of cabin, safety, reliable.
6. Lower fuel consumption.
7. Enough strong engine power
Our Service: 24 hours online,Offer professional advices on trucks purchasing.
Suppy Customized Products with your specific requirements.Top
quality, workable price, fast delivery guaranteed by international
production line.
Supply free one set of filter element for your purchased truck.
1) Bucket shape, size, thickness, weight can be designed and
produced according to your request
2) Experienced sales team recommend you suitable truck for your
market
3) Fast production & delivery time after receiving payment
4) Perfect after-sales service to solve your problems or claims
Warranty
One year or 60,000 kilometers, whichever comes first from the date
of shipping in Bill of Lading.
Spare parts will be offered at factory price at any time once you
need.
Tyres Option: radial 12.00R20, 12R24, tubeless12R22.5,13R22.5
315/80R22.5
Delivery & Shipping
Packaging: All the trucks will be polished with wax before shipping
Shipping: flat rack, bulk vessel, roro
We will choose the most economic way to ship your truck to help you
save shipping cost
Specification
| Name | HOWO DUMP TRUCK |
| Model | ZZ3257V3847A |
| Drive type | 6x4 |
| Brand | HOWO |
| Engine | D12.42-20 420hp, euro 2 |
| Engine Type | 6-cylinder in line, 4-stroke, water-ooled, turbo-charged &
inter-cooled, direc-t injection |
| Displacement(L) | 9.726 |
| Maximum output (Kw/r/min) | 309/2200 |
| Valve | 2 |
| Rated Quality(kg) | 12600,12410 |
| Kerb mass (kg) | 12270,12460 |
| Wheel base (mm) | 3825+1350 |
| Tire | 11.00-20,12.00-20 18PR |
| Overhang(front/rear) | 1500/1939,1500/1870 |
| Appearance dimensions (mm) | 8545*2496*3170 |
| Box dimensions(mm) | 5800*2300*1090 |
| Max. speed (km/h) | 75 |
| Passengers | 2 |
| Approach/Departure(°) | 19/23 |
| Total mass(kg) | 25000 |
| Fuel | Diesel |
| Fuel tank capacity (L) | 300L |
| Axle | 3 |
| Axle Load | 7000/18000 |
| Front axle | SINOTRUK HF9 Front Axle |
| Front axle loading capacity (kg) | 9000 |
| Rear axle | SINOTRUK HC16 Heavy reduction drive axle |
| Rear axles loading capacity(kg) | 2*16000 |
| Front Tread | 2022,2041 |
| Rear Tread | 1830/1830 |

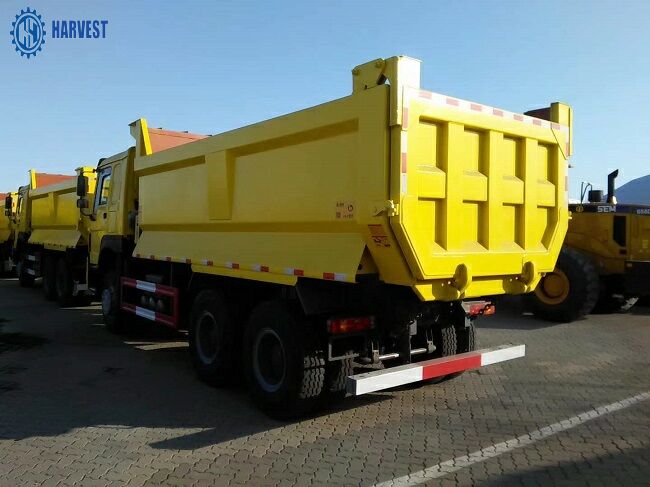

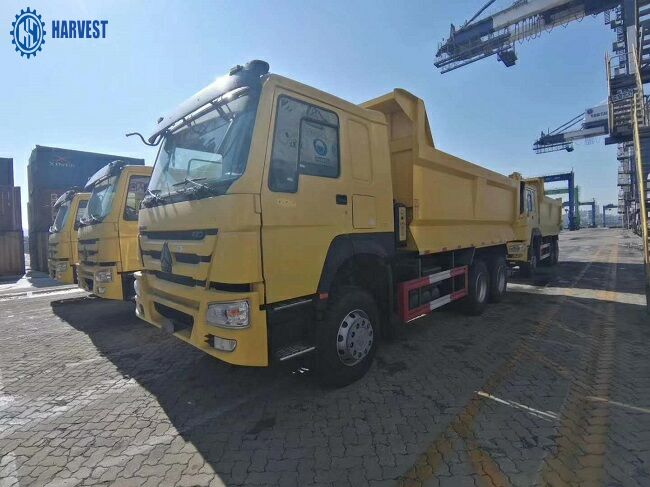

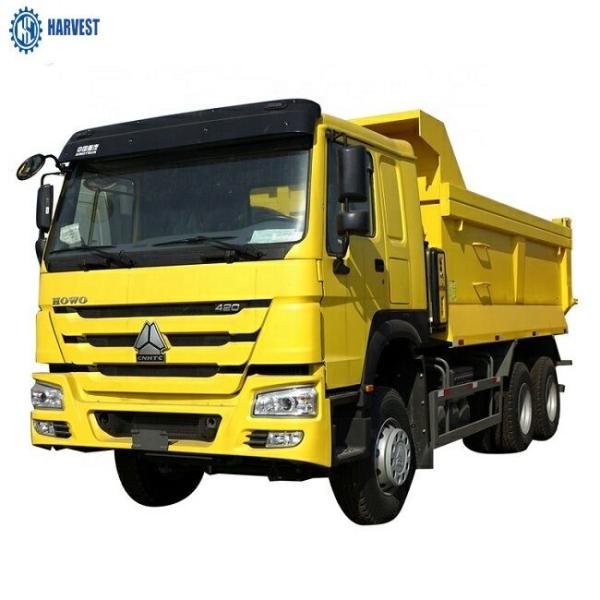

Truck Picture
