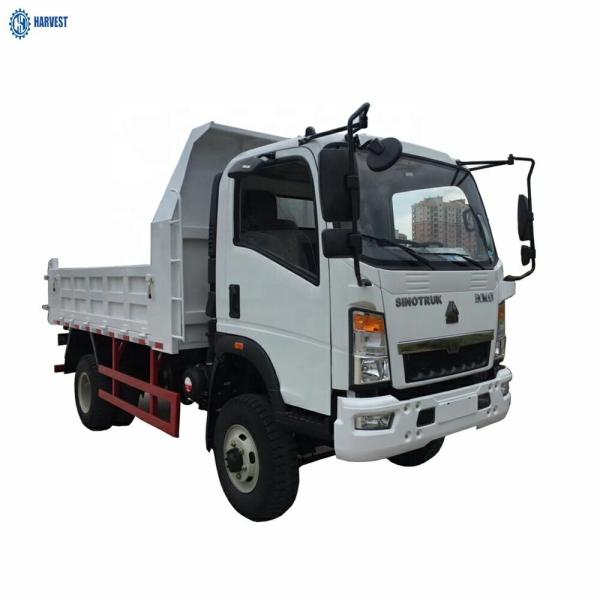

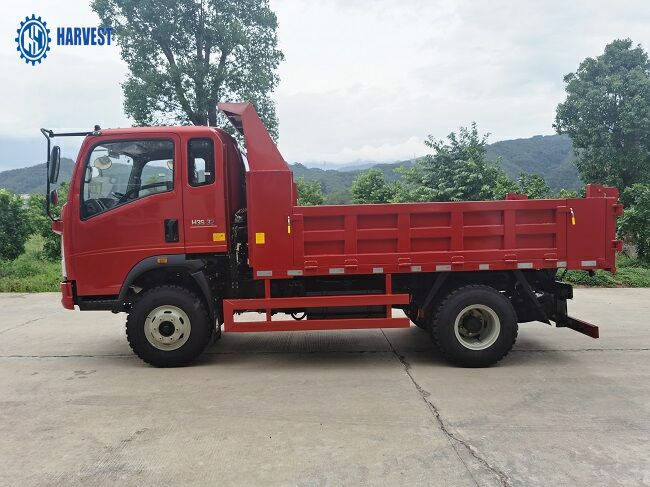

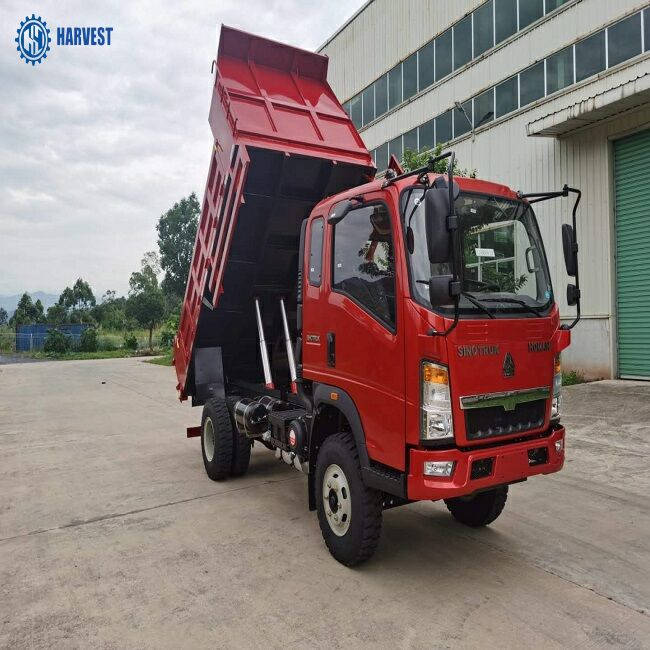

8 Ton Loading Cpacity Tipper SINOTRUK HOMAN 4x2 110hp Mini Dump Truck

Homan light dump truck is more powerful than Howo chassis, frame adopt high tensile steel

4x2 left hand drive, 8 ton loading capacity, wheel base: 3200mm
Cabin: 1760mm, 2 seats & 1 sleeper with A/C, Engine brand: YUNNEI YN4100QBZL, 110hp, Gearbox: WLY10H46, 6 forwards & 1 reverse, manual control, Steering: GY80A hydraulically assisted, Tire: 8.25R16, 7pcs including 1 spare tire
Brakes service brake: dual circuit compressed air brake
Auxiliary brake: Exhaust brake, Clutch booster
Body dimension: 3600*2000*600 mm, thickness: bottom 5mm, side 3mm.
Hydraulic system: middle tipping

Curb weight: 4500kg, gross weight: 9300kg

Loading capacityfront axle : 2800kg, rear axle 9300kg capacity

Features

1. The dumper truck can be classify by lifting way, one is rear dump, another is side dump.
2. Choosing domestic or famous foreign brand for the main parts of hydraulic system
3. Dump body material Q235, Q345, Q610 or wear–resisting steel for the dump body
4. Type of dump body: square shape or U-shape/ half-round-shape
5. The length of dump body is from 4m to 12m, providing related design according to customer’s requirement.

Our Service

1) Bucket shape, size, thickness, weight can be designed and produced according to your request

2) Experienced sales team recommend you suitable truck for your market

3) Fast production & delivery time after receiving payment

4) Perfect after-sales service to solve your problems or claims

Warranty

One year or 60,000 kilometers, whichever comes first from the date of shipping in Bill of Lading.

Spare parts will be offered at factory price.

Applications: It can be used for transporting sand, stone & building material in construction site.

This model can meet the requirements of severe environment in construction site and mining area.

Specification

Pictures
