SINOTRUK HOWO 6x4 371hp Manual 30 Ton Heavy Duty Dump Truck for
Transportation
HOWO-7 6x4 30 ton dump truck is the most popular model of SINOTRUK
because Euro 2 emission make the engine work well even the oil
quality is not so good. It will help you to save maintenance cost
and continue your project smoothly.
At the same time, you can easily get spare parts of it, which will
enable you to repair or replace some problem parts in time.
Comfortable cabin with 4 point full -floating air suspension, adjustable steering wheel with various heightsand angles, air suspension seat, MP3, 1 slepper for driver to have a rest. Double arm windscreen
wiper system with three speeds, damped adjustable driver's seat,
with heating and ventilating system, exterior sun visor, safety
belts, air horn, air conditioner, with transverse stabilizer and
shock absorber.
Applications
It can be used for transporting sand, stone & building material in
construction site.
This model can meet the requirements of severe environment in
construction site and
mining area.
Competitive Advantage
1. Affordable price
2. Good quality
3. Powerful engine
4. Low fuel consumption
Our Service
1) Bucket shape, size, thickness, weight can be designed and
produced according to your request
2) Experienced sales team recommend you suitable truck for your
market
3) Fast production & delivery time after receiving payment
4) Perfect after-sales service to solve your problems or claims
Warranty
One year or 60,000 kilometers, whichever comes first from the date
of shipping in Bill of Lading.
Spare parts will be offered at factory price.
Product Specification
Truck Mode | ZZ3257N3847A |
Driving Type | Left Hand Drive (RHD for option) |
Cabin | HW76, with 1 sleeper & A/C |
Engine | WD615.47, 371hp, Euro II |
Transmission | HW19710, 10 forward & 2 reverse |
Steering | ZF8118 hydraulic steering |
Front Axle | HF9, 1*9000kg |
Rear Axles | HC16, 2*16000kg |
Bucket Size | 5600x2300x1500mm(20cbm) |
Bucket Thickness | bottom 8mm, side 6mm |
Dimension (Lx W x H) (unloaded)(mm) | 8545x2496x3450 |
Lift type | middle lifting (front lifting for option) |
Wheel base (mm) | 3825+1350 |
Curb weight(kg) | 12190 |
Loading Weight(kg) | 12680 |
Fuel tanker capacity(L) | 300 |
Clutch | Single-plate dry clutch Φ430mm |
Tire | 12.00R20 10+1 spare tire |
Fuel Tank | 300L |
Max. speed | 75km/h |
Oil Consumption | 35L/100kms |

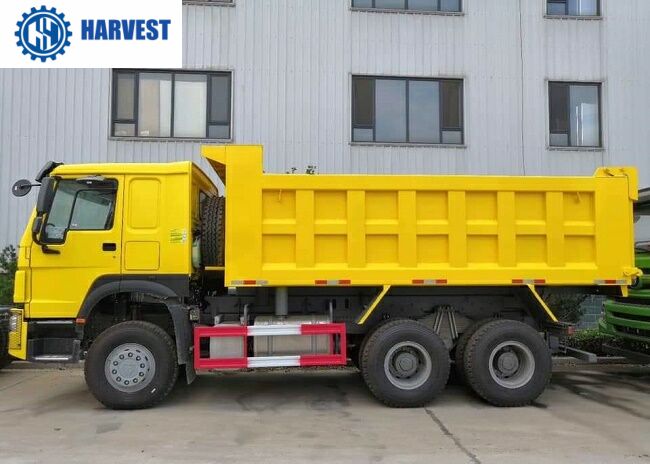

Product Picture
