6x4 Sinotruk Howo 371hp 20m3 Dump Truck 30 Ton Tipper with 12R22.5
Tyres
This truck is with HW76 cabin, HW76 long cab with Super-large LCD
screen ,one sleeper , large area of windshield glass, air
conditioner, heating system, adjustable seat, two-speed wiper and
glass washer, sun visor, safety belts, adjustable steering wheel,
air horn, with 4-point support fully floating suspension and shock
absorbers with transverse stabilizer.
Engine: WD615.47, 371
Gearbox: HW19710, 10 forward & 2 reverse, manual
Steering: ZF8118 hydraulic with power assistance
Cylinder: T type middle lifting
Front axle: HF9
Drive axles: HC16
Tyres: 13R22.5 tubeless tyres special for Ghana market
Options: 2 alarms on the top of cabin
Application
Dump truck is the vehicle that unloads cargo by hydraulic or
mechanical lift.
Can be divided into backward tilting and lateral tilting.
Loading, downloading and transport earthwork, gravel and bulk
materials.
Dump trucks often work with excavators, loaders, pavers, belt
conveyors and other construction machinery.
Common drive types of dump trucks usually have 4*2, 6*4, 8*4 and so
on.
Our Available Trucks
HOWO Dump truck, 4x2, 6x4, 8x4
HOWO Tractor truck, 4x2, 6x4
HOWO Cargo truck, 4x2, 6x4, 8x4
HOWO Concrete mixer truck, 7m3, 9m3, 12m3
HOWO Water tank truck, Oil tank truck
HOWO Sewage suction truck, compressed garbage truck
HOWO Truck mounted crane, 5t, 10t, 20t
Our Service
1. Supplying reliable and durable quality truck spare parts
2. Immediate stock, quick delivery and professional service
3. Professional Sinotruk spare parts supplier
4. Customized packaging on customer requirement.
5. Professional training for customers.
Warranty
One year or 60,000 kilometers, whichever comes first from the date
of shipping in Bill of Lading.
Spare parts will be offered at factory price.
Product Specification
Truck Mode | ZZ3257N3847A |
Driving Type | Left Hand Drive (RHD for option) |
Cabin | HW76, with 1 sleeper & A/C |
Engine | WD615.47, 371hp, Euro II |
Transmission | HW19710, 10 forward & 2 reverse |
Steering | ZF8118 hydraulic steering |
Front Axle | HF9, 1*9000kg |
Rear Axles | HC16, 2*16000kg |
Bucket Size | 5600x2300x1500mm(20cbm) |
Bucket Thickness | bottom 8mm, side 6mm |
Dimension (Lx W x H) (unloaded)(mm) | 8545x2496x3450 |
Lift type | middle lifting |
Wheel base (mm) | 3825+1350 |
Curb weight(kg) | 12190 |
Loading Weight(kg) | 12680 |
Fuel tanker capacity(L) | 300 |
Clutch | Single-plate dry clutch Φ430mm |
Tire | tubeless 12R22.5, 10+1 spare tire |
Fuel Tank | 300L |
Max. speed | 75km/h |
Oil Consumption | 35L/100kms |

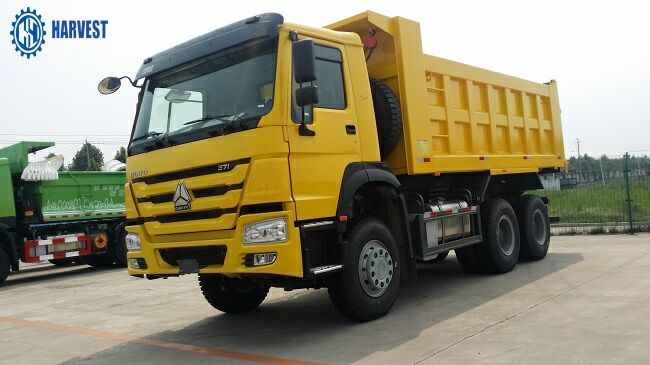

Truck Picture
