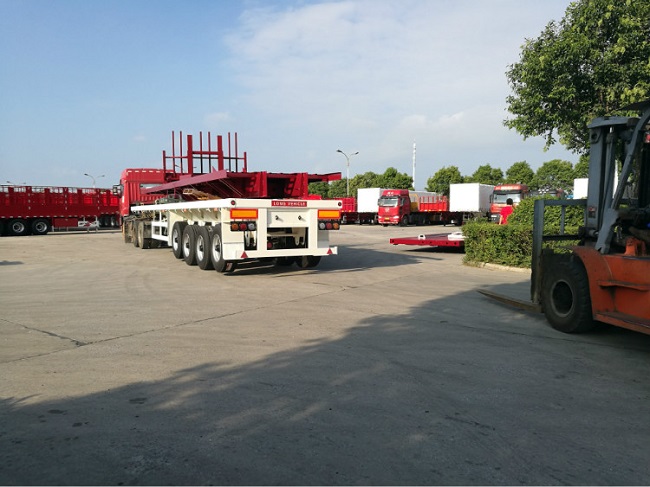

4 Axles 80ton 40ft 45ft Flatbed Flat Bed Container Semi Trailer
Used Truck Trailer
Flatbed Trailer for carrying 40ft container, 20ft container and
other dry bulk cargo. In general, the flatbed trailer suit for
carrying loads 40 ton~60 tons weight. Actually, flatbed trailer is
the simplest trailer for dry bulk cargo, we also can offer other
model according to your different requirements, extendable flatbed
trailer for transporting wind blade, steel pipes and fittings and
other long items, flatbed trailer with upright column for log
loading, etc.
Length: Approx12,489mm
Width: Approx2,480 mm
Height: Approx1460mm@ unload
King Pin Location: Approx933mm from the front face of the front
bolster
Landing gear position: Approx2,323mm from the king pin
Axle spacer: Approx7,626mm + 1,300mm+1,300mm
King Pin Height: Approx1,146mm with the chassis level
Steel Structure:
Material: High strength low alloy steel (Q345) with 350 MPa yield
strength is used for hot rolled I-beam and fabricated parts.
King Pin: JOST 3.5” Bolting king pin.
Landing Gear: JOST E100
Suspension: Steel suspension with 8 pieces of leaf spring.
Axles: 13T square axle 10holes, 4 pieces, Fuwa Brand
Rims: 9.0-22.5, steel, 17 pieces.
Tires: 12R22.5/315/80R22.5/13R22.5, 17pieces.
Twist lock: ISO type twist locks, 12units
Brake system: WABCO,ABS brake, 2S/2M
Electric system: 24V Chinese standerd
Platform: Floor bed bolt with laminated wood floor.
Side Guard: STEEL
Tool Box: One
Spare Tire & Carrier: NONE
NOTE: All the details not mentioned above should be comply with
Chinese standard.
Product parameters
| Tare Weight | 8T |
| Payload | 60T |
| Axle Weight Load | 13T |
| Axle number | Four |
| Axle | FUWA |
| Suspension | FUWA |
| King Pin | 50# traction pin Jost brand |
| Outside Dimensions (LxWxH) | 13000×2500×1490mm |
| Container Twist Locks | 12pieces |
| Rim | 9.00-22.5 Zhengxing Brand |
| Steel Spring | 10pieces |
| Tire specs. | 12.00R22.5 Triangle Brand |
| Number of Tire | 16 pieces |
| Spare Tire Carriers | 2 pieces |
| Main beam height is 500mm |
| Frame Beam | Upper plate is 14mm, lower plate is 16mm,middle is6 mm. |
| Platform bed | 3mm diamond steel plate |
| Landing Leg Support | JOST E100 |
|
| Brake Chamber | Four double and two single chamber( TKL brand ) |
| ABS system | Without |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| LED brand |
| Front marker lamp | front corner marker lamp is red, Reflector lamp is white |
| Side marker lamp | Orange |
| Rear lamp | Red |
| Turn signal lamp | Orange |
