    FUWA 3 Axles 40 Ton Loading Capacity 40ft Skeleton Semi Container Trailer

    Ask Lasest Price
    Brand Name : Harvest
    Model Number : 40ft
    Certification : ISO CCC
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    FUWA 3 Axles 40 Ton Loading Capacity 40ft Skeleton Semi Container Trailer

    40ft Skeleton Container Semi Trailer With FUWA 3 Axles 40 Ton Loading Capacity

    3axles 40ft Skeleton container transport semi truck trailer are globally versatile products. Its purpose is to transport semi trailers of 20ft, 40ft and 45ft containers. In the past, semi trailers were manually welded. But now the trailer industry has officially entered the era of robot welding. Fully automatic laser cutting machine. With high precision, fast cutting, not limited to cutting pattern restrictions, automatic typesetting saving materials, smooth cuts, etc., it will gradually improve or replace the traditional metal cutting process equipment. The mechanical part of the laser cutter head has no touch with the work, and it will not scratch the working surface during the work; the laser cutting speed is fast, the slit is smooth and flat, and generally no subsequent processing is required; the cutting heat affected zone is small, the steel sheet deformation is small, and the slit is narrow ( 0.1mm~0.3mm); no mechanical stress in the incision, no shear burr; high processing precision, good repeatability, no damage to the surface of the material; NC programming, can process any plan, can cut the whole board with large format, no need open the mold, save time and economy.

    What are the advantages of the fully automatic welding robot?

    1) Stabilize and improve the quality of welding, can reflect the quality of welding in the form of numerical values

    2) improve labor productivity

    3) improve the labor intensity of workers, working in harmful environments

    4) and reduce the requirements for workers' operating technology.

    5) Shorten the preparation period for product modification and reduce the corresponding equipment investment.

    Technical Specification

    Gross WeightAbout 5.7 tons

    Outer side dimension

    12450 × 2490 × 1557mm
    Loading Capacity≤ 45T (40FT)
    Axle13T, FUWA Brand
    Tire12.00R22.5 13pieces, Triangle brand
    Rim9.00-22.5
    SuspensionMechanical suspension ( America Type)
    Spring leaf90(W)mm*13(Thickness)mm*10 Layer
    King pinJOST brand 2.0 bolts type
    Support legJOST brand E100
    Main beam

    Height: 500mm, upper plate is 10mm, middle plate is 6mm,

    down plate is 10mm ; Material is T700

    Brake chamberWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two piece of 45L air tank
    Twist LocksTwelve pieces (Lifting type)
    ValveWABCO valve
    ABSKemi
    LightLED light
    Voltage24V
    Receptacle7 ways (7 wire harness)
    Tool boxOne piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
    PaintingComplete Chassis sand blasting to clean rust, electrophoretic primer and powder spray
    Shipping Terms:Transport by bulk cargo carrier, RORO or 40HQ container.

    Product Display

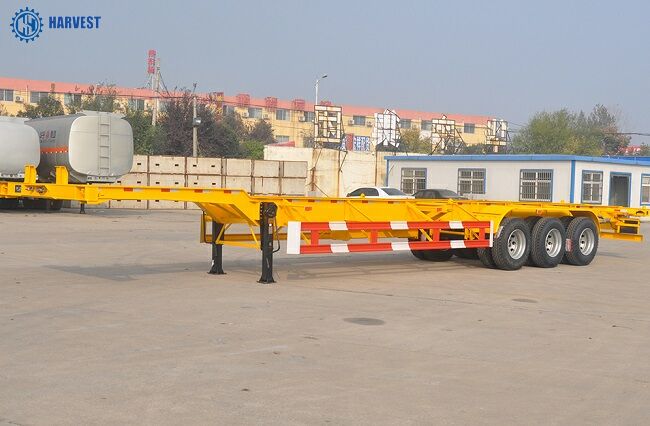

    Quality FUWA 3 Axles 40 Ton Loading Capacity 40ft Skeleton Semi Container Trailer for sale
