Sinotruk HOWO 4x2 6m3 Garbage Compactor Truck 5T Capacity Waste
Collection Truck
Garbage compactor truck ,also called compactor garbage truck ,
garbage truck for sale , trash compactor , compression garbage
truck , refuse truck , garbage collection vehicle, waste truck
container garbage truck, compact garbage trucks, waste compactor
trucks, compactor garbage truck for sale etc
Garbage compactor truck capacity from 3 cbm to 18cbm all available
.
Our Garbage compactor truck advantage :
1. Dual operation both at the rear of compactor garbage truck and
inside cabin , easy control
2. Famous brand hydraulic pump to drive hydraulic valve to keep
garbage compactor truck safety
3. Cheap price , one year warranty
4. Garbage bin lifting system could design as customer’s
requirement .
5. Lock system is operated by machinery hydraulic system can reduce
second pollution mostly.
Garbage type as following:
1.There are compactor truck ,swing arm type garbage truck,skip
garbage truck ,self- dump garbage truck ,sealed garbage truck ,arm
type garbage truck ..etc from our factory
2. with boat type bucket ,squared type bucket ,sealed type bucket ,
trapezoidal bucket etc.
3.dustbin can separate with truck body,so one truck with more
buckets
Specification
| Name | SINOTRUCK HOWO 6cbm Compression Garbage Truck |
| Gross weight(Kg) | 9900 | Driving type | 4x2 |
| Curb weight(Kg) | 6920 | Overall dimension (mm) | 6790*2325*2910 |
| Axles | 2 | Cab seats (man) | 3 |
| Wheelbase (mm) | 3360 | | |
| Chassis specification |
| Chassis model | ZZ1047D3414C145 | Manufacture | SINOTRUK |
| Brand name | SINOTRUK | Tyre No. | 6+1 |
| Tyre | 7.00R16 | Gearbox | 6 forwards |
| Fuel type | Diesel | Emission standard | Euro Ⅲ |
| Cab | Flat single cab, luxurious interiors and seats, air conditioning is
optional |
| Performance |
| Body capacity(m3) | 6 | Hopper capacity(m3) | 1 |
| Compression cycle time(S) | 30 | Unload garbage time(S) | 40 |
| Control system | Manual +Automatic |
| Main Characteristic |
1. Can choose 240L(single bin,double bins) or 360L,660L,1100L
standard bin lifting and turnover mechanism,can also choose ground
hopper and other kinds of loading mechanism. 2.With manual and automatic two sets of control method, the
operator can control in the cabin, in the middle side or the back
of the truck , very convenient and efficient. 3.With working device of emergency braking stop button. 4.Garbage body use frame design, elegant, strong structure, large
effective capacity. 5.Equipped with special collection box, sewage directly into the
sewage tank in the process of compression, that is effectively
prevent second pollution caused by sewage leaks. 6.Through hydraulic system design, the truck achieve the function
of two-way garbage compression, that is improve the compressibility
,make the compression ratio up to 1:2.5, the garbage can reach more
then 600~800kg/m3 after compression. |

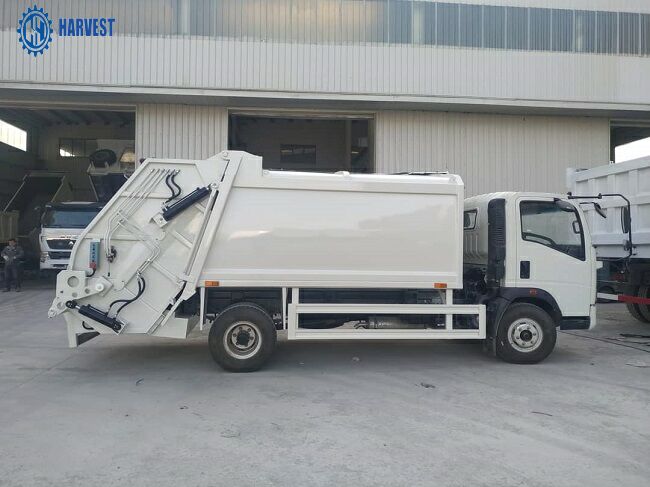

Compression Garbage Truck Pictures
