3 Axle New Flat Bed Trailer 40ft Container Flatbed Semi Trailer
With FUWA Axles
Flatbed Semi Trailer is mainly used for transporting containers and
can be used at ports as well as for transporting timber and other
goods.
In general, the flatbed trailer suit for carrying loads 40 ton~60
tons weight . Actually , flatbed trailer is the simplest trailer
for dry bulk cargo , we also can offer other model according to
your different requirements , extendable flatbed trailer for
transporting wind blade ,steel pipes and fittings and other long
items ,and flatbed trailer with front wall and so on .
1. Straight or gooseneck type, used to carry non-removable big size
objects in factory and construction site.
2. Made of high-strength steel, strong bearing, rational
construction and good stability.
3. The frame is welded by automatic submerged arc welding,
beautiful weld joint, reliable performance.
4. Good looking, easy to sell. Use shot blasting to improve the
surface.
Packing: Nude packing, polish with wax before the shipment.
Normally shipped by roro, bulk cargo ship.
Container and flat rack container are also avaliable when size is
suitable.
Shipping Shipped by bulk cargo
Bulk cargo ship is the most widely used sea transportation way.
Nearly all the trailers can be used this way as long as the tare
weight is under the bearing limits of the port crane. Certainly,
the freight is at a median price.
Shipped by container
Container shipment may be the most cheapest. But we need to cut the
tail of the trailer when the size is not suitable. You need to
confirm if you have the ability to assemble in local before you use
this way. Please pay attention to it.
Shipped by roro
Roro ship may be the most expensive. It is the same as bulk cargo
ship by stacking up 2 or 3 units together to save freight cost.
Though expensive, it could protect trailers much better. So you
could choose the suitable way according to your financial capacity.
Specification
| Tare weight | About 6000kg |
| Size | 12500mm×2500mm×1550mm |
| Payload | 40 ton |
| Main beam | Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom
flange16mm,width 140mm |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 3mm Flat Plate |
| Axle | 3 axle 13T ( Original FUWA brand ) |
| Landing gear | Two-speed, manual operating,heavy duty landing gear 28T |
| Suspension | Mechanical suspension |
| Leaf spring | Leaf spring 6sets , 10pcs,90×13 mm |
| Tire | 12R22.5 , 12pcs (Double Star Brand) |
| Wheel rim | 9.0-22.5 , 12pcs |
| Kingpin | 3.5” bolt-in king pin (JOST BRAND) |
| Twist lock | 12 pcs |
| Braking system | WABCO RE6 relay valve ; T30/30 spring brake chamber;40L air tanks |
| Lights | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of
anticorrosive prime,2coats of final paint |
| Accessories | One tool box;one spare tire carrier;one crank;one shaft head
wrench;four side light;two rear light |

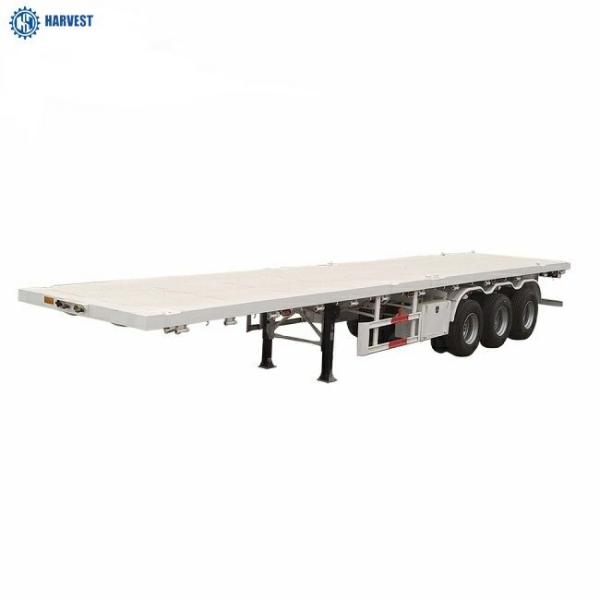

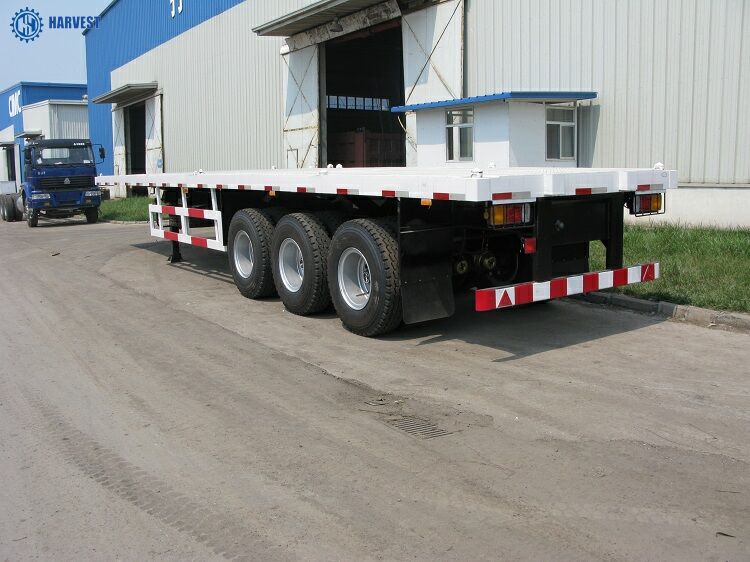

Flatbed Trailer Pictures
