Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry

Henan Harvest Machinery & Truck Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry from wholesalers

    Buy cheap Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry from wholesalers
    • Buy cheap Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry from wholesalers
    • Buy cheap Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry from wholesalers
    • Buy cheap Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry from wholesalers
    • Buy cheap Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry from wholesalers

    Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : ZZ1257N5847W
    Certification : CCC, ISO, SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Sinotruk 6x4 371hp 28000L 4 Compartments Diesel oil tanker lorry

    Sinotruk 6x4 371hp 28,000 Liters 4 Compartments Oil Truck with Fuel Tanker Trailer

    Description

    Fuel tank truck also called oil tank truck could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere.The tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.The material of the tanker could be carbon steel, stainless steel, aluminum alloy.

    Usage and Maintenance

    1, In order to prevent fire accident to block, on the exhaust pipe, silencer is damaged, pipeline leak, conducting electrostatic clip, are not allowed to damage or fracture and tapping oil vehicles parts, metal items, lest produce Mars block must be ready to.

    2. If tank sedimentation tank under freezing and may not be roasted in the fire, can use hot steam melt or pulls into thaw in the greenhouse.

    3. Cases of unsymmetry must make before driving force.

    4. Oil vehicles driving, the rear of the electrostatic belt must take to replace damaged in a timely manner.
    5,.A tanker truck operation before, should check whether the oil pipeline system, ground wire is disconnected, the exhaust pipe is damaged, found that the problem should be resolved first homework again.

    6. Hit oiling car parts are not allowed to use metal, lest produce Mars, homework should be careful not to produce Mars, oil should be in accordance with the relevant provisions.

    7. When you enter a loading oil tank to check, the outside of the tank must be watched .Must be in accordance with the relevantindustry operating procedures, make sure the personal property safety.

    8. In winter, if there is water in the self-priming pump must put all the water, to prevent frostbite to break the pump body.

    Specification

    Cabin
    HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner with transverse stabilizer, with 4-point support fully floating suspension + shock absorber
    Engine

    Make: SINOTRUK

    Diesel 4-stroke direct injection diesel engine,

    Engine Model: WD615.47, Euro2, 371hp

    cylinder in line with water cooling, turbo-charging & intercooling

    Displacement: 9.726L


    Transmission

    SINOTRUK HW19710,10 forward and 2 reverse, with HW70 flange PTO

    Ratio: 14.28, 10.62, 7.87, 5.88 , 4.38, 3.27, 2.43, 1.80, 1.34, 1.00,

    13.91(R1), 3.18(R2)

    SteeringZF power steering, model ZF8118, hydraulic steering with power assistance.
    Front Axle

    HF9(drum), 1x9000KGS

    steering with double T-cross section beam

    Rear Axles

    HC16(drum), 2x16000KGS

    Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles

    Ratio: 4.42

    Chassis

    Frame: double frame (8/8+300), With Oil Bath Filter

    Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

    Rear suspension: 15 leaf semi-elliptic springs, bogie spring and stabilizer

    Brake System

    Service brake: dual circuit compressed air brake

    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

    Auxiliary brake: engine exhaust brake

    Electrics

    Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw

    Alternator: 3-phase, 28 V, 1500 W

    Batteries: 2 x 12 V, 165 Ah

    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

    Tires12.00R24, radial tires with one spare tire. With 2 U-Pull.
    Oil Tank400L+400L
    Fuel Tank

    Material: carbon steel Q235B

    Tank Thickness: 5mm, end plate 6mm

    Volume: 28000 Liters

    Compartments: 6, 7000L, 7000L, 7000L, 7000L

    4 European standard manhole with 4 breath valve, 4 sea valve, 4 discharging valve,15m hose, 45L flow, Aluminum alloy folding handrail, ladder, fueling machine, fueling gun, flow meter, pump, bottom oil loading system, 10m tube with connection, with trailer system

    2 fuel tank & exhaust on one side, petrol control system on another side

    Dimension: 8850x2300x1600mm

    Dimension11700x2500x3350mm
    ColorWhite

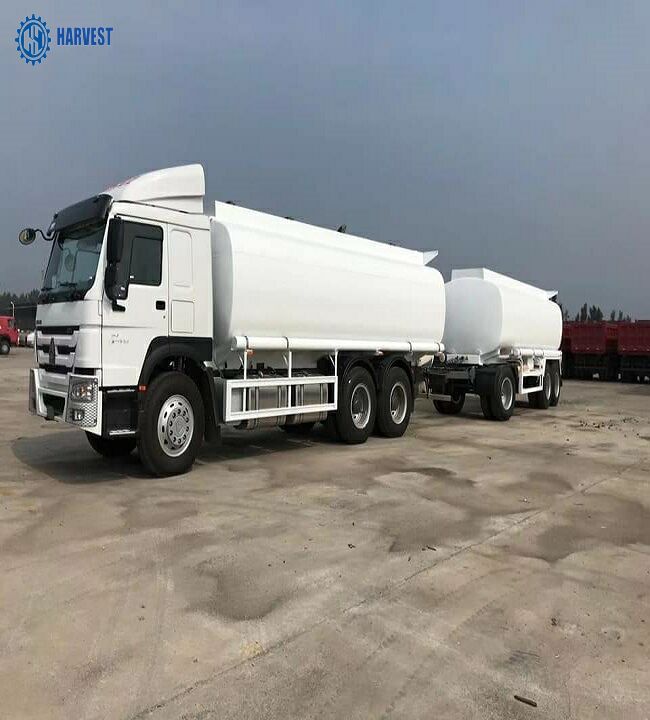

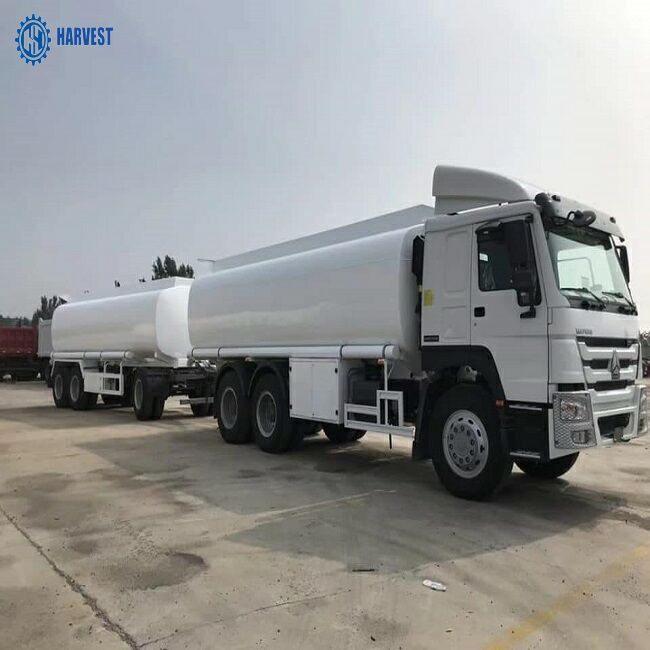

    Tanker Picture
