Sinotruk Howo 6x4 336hp 15,000 liters Fuel Tanker Truck for Oil
Transportation
Description
1) All the bodies adopt integral steel-framed structure, hard and
firm, allowing high collision resistance and external force
resistance.
2) Automatic painting line consisting of robots ensuring the body
appearance quality, corrosion prevention and weather resistance,
increasing the effective more than 2 times compared to the
conventional electrophoresis painting and allowing higher salvage
value of vehicle.
3) Cab manufactured by the welding line composed by international
advanced robots, safety and reliable top-level quality in China.
4) Each safety performance index completely meeting the latest
legal requirements of China , comprehensively enhancing the safety.
Applications
Custom Design – Every water truck is built to your unique specs
ensuring you receive a truck that fits into your fleet.
Extensively Tested – All quip puts all trucks through a rigerous
testing process to ensure all parts and components are working
properly.
Load Distribution – CAD drawings and load distribution software is
used in the design process to ensure the tank is placed correctly
for optimum load distribution.
Flexible installation options – Truck mounted tanks are engineered
in order to attain correct axle weight distribution tailored to any
truck specifications.
Easy maintenance For quick and trouble-free maintenance, our
systems feature bolted-on components and conveniently located
external water ways.
High Grade Polyethylene tanks result in a stronger, lighter, lower
centre of gravity tank,
Tank is fully CCC,SGS & ISO stabalised with impregnable colour
allowing for nil maintenance,
Suitable for Potable water and dense and corrosive liquids,
Frames and pipe-work are hot dip galvanised to counterpart the
incredible lifespan of the tank.
Specification
| Model | ZZ1257N4347N1 |
| Engine | WD615.69, 336hp, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure
oil pump Maximum output: 336PS (246kW) at 1900 rpm Maximum torque: 1290Nm at 1200-1500rpm Bore: 126mm Stroke: 130mm Displacement: 9.726L Compression ratio: 17.5:1 Specific fuel consumption: ≤189g/kWh Engine oil filling quantity: 25L |
| Clutch | SINOTRUK 430 diaphragm spring clutch, hydraulically operating with
air assistance |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00;
13.91/3.18(R) |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling
flange |
| Front Axle | New HF7 series, with drum brake system Steering with double T-cross section beam |
| Rear Axle | ST16 pressed axle housing, single reduction and differential locks
between axles; with drum brake system. Ratio: 4.3 |
| Chassis | Frame: High-strength U-profile frame, all cold riveted cross
members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic
telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs with hydraulic
telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel |
| Steering | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
| Braking System | Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear
wheels Auxiliary brake: engine exhaust brake |
| Wheel & Types | Rims: 8.5-20,10 hole-steel Types: 12.00R20 |
| Driver’s cab | Long cab, all steel forward control, 55° hydraulic tilting to the
front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in
radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with
stereo radio/cassette recorder, sun visor, safety belt, air conditioner, adjustable steering wheel. |
| Electrical System | Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators
and reverse lamp |
Tanker capacity: 15,000 liters, tank thickness is 4 mm, 2 Manholes,
2 breath valve, 2 bottom valve |

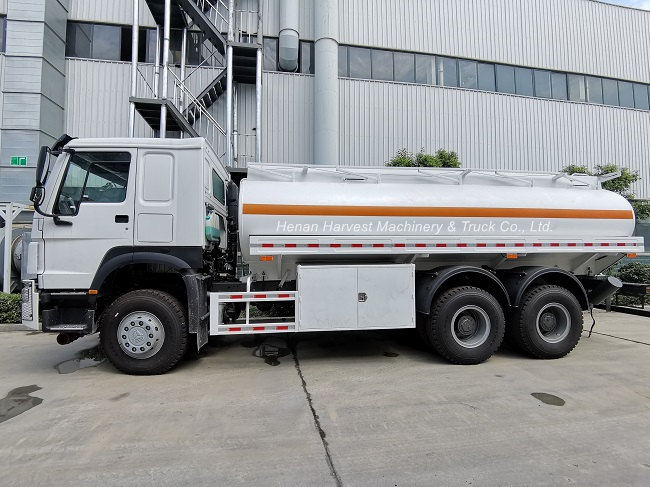

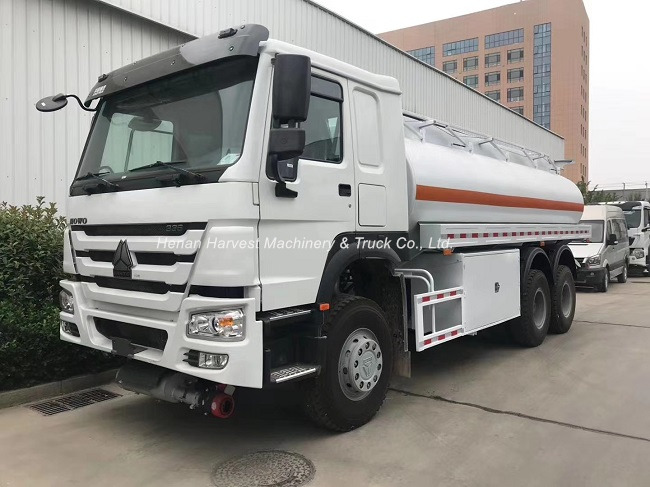

Fuel tanker pictures
