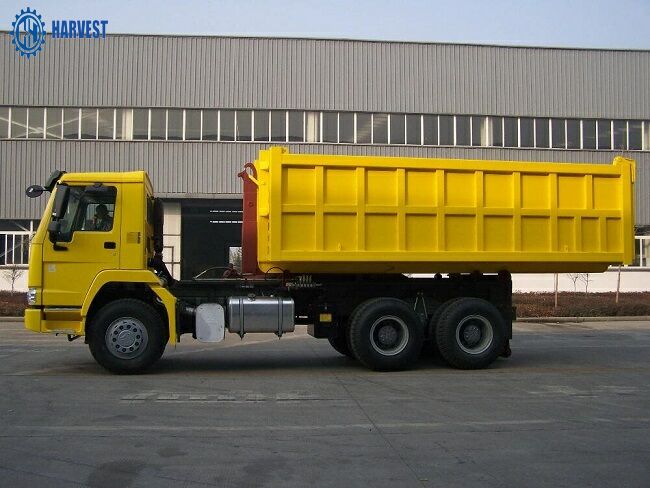

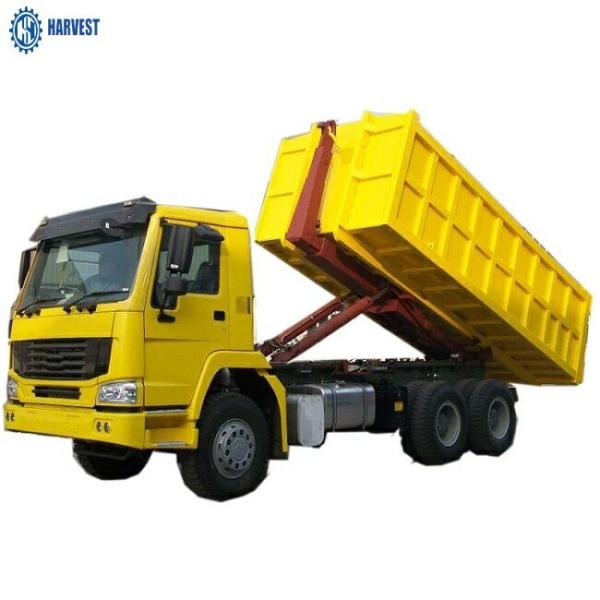

New 30 Ton Hook Arm Garbage Truck Howo Roll On Roll Off Garbage
Truck 12cbm Box
Garbage trucks are widely used in sanitation, municipal, factory and mining
enterprises, and residential areas where have a lot of garbage.
Garbage trucks are classified into compressed garbage trucks, swing arm type, dump type, sealed type,
docking type, hook type arm type, and pull arm type garbage truck. Garbage trucks can carry multiple compartments in one vehicle,
which can effectively prevent secondary pollution during the
loading and unloading process. The modified part is separable from
the original car chassis, which is easy to maintain and maintain
the mobility and driving performance of the original car. Customers who have special requirements for garbage trucks please
contact with us at any time. We can produce the trucks according to
your requirements.
Model: ZZ3257N4947C1
Color: Optional
Motor: WD615.87, 290hp Euro II
Transmission: HW19710, 10F and 2R, Manual
Steering: ZF8098, Power steering with hydraulic system
Cabin: HW76, Standard cab, one berth, with A/C, VDO
Front Axle: HF9 1x9000Kg
Rear Axle: HC16 1x16000Kg
Overall Dimensions: 10150x2496x3450mm
Loading Capacity: 30T
Box Capacity: 12m³
Garbage box dimensions: 6700x2300x1200mm, Floor 8mm & Side 6mm

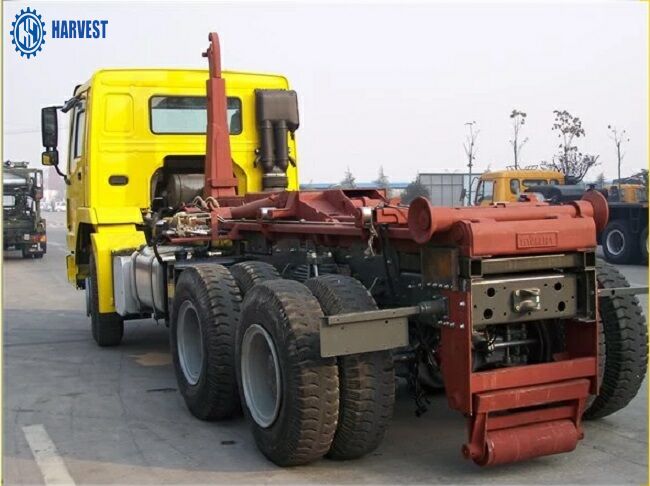

Imported Hyva 20ton Hydraulic hook lifting system
Tyre: 12.00-20, Nylon bias tyre, one spare tyre
Fuel Tank: 300L
Fuel Type: Diesel
Drive Model : Right hand drive & Left hand drive
Specification
| Type(hooklift) | Installation wheelbase | Box length | Hook Wheel Distance |
| 1T Hooklift | 2300mm | 2m | 1850mm |
| 1.5T Hooklift | 2600mm | 2.4m | 2127mm |
| 3T Hooklift | 2800mm | 2.6m | 2380mm |
| 5T Hooklift | 3308mm | 3.3m | 2857mm |
| 8T Hooklift | 3800mm | 4.1m | 3600mm |
| 10T Hooklift | 3950mm | 4.2m | 3615mm |
| 14T Hooklift | 4500mm | 4.35-4.85m | 4175mm |
| 16T Hooklift | 4700mm | 4.9-5.45m | 4625mm |
| 20T Hooklift | 1300+4500mm | 5.05-5.6m | 4985mm |
| 25T Hooklift | 1850+3800+1350mm | 6.5-7.0m | 6 100mm |
| Chassis model | ZZ1257M4347C |
| Driving form | 6x4 |
| Total mass(kg) | 24730 |
| Curb weight(kg) | 11600 |
| Engine | WD615.87(290HP), Euro II emission standard Engine type: Diesel 4stroke direct injection engine, 6cylinder inline with water cooling, turbo-charging & inter cooling |
| Cab | HW76(one bed with A/C) |
| Transmission | HW15710(10 Forward, 2 Revise) |
| Front axle | HF9 (9000kg) |
| Driving axle | HC16 (16000kg x 2) |
| Steering system | ZF8098 |
| Tire | 12.00R20 (11pcs, including one spare tire) |
| Wheelbase(mm) | 4350+1350 |
| front/rear Overhang (mm) | 1500/1025 |
| Approach/departure angle(°) | 16/26 |
| Maximum speed(km/h) | 90 |
| Number of spring leaf | 10/12 |
Compression Garbage Truck Pictures
