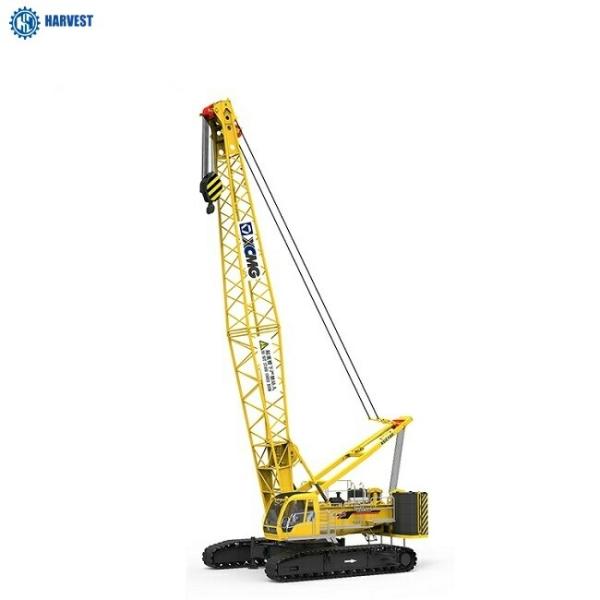

100 Ton Construction Lifting Machine Hydraulic Crawler Crane XGC100
Inheriting the advantages from the old generation product, XGC100
crawler crane pays more attention to the improvement of lifting
performance, assembly/disassembly and transport convenience and
operation comfort. It will bring new experience to customers with
multiple outstanding features such as new appearance, industry
leading lifting capacity and perfect self-assembly and disassembly
function.

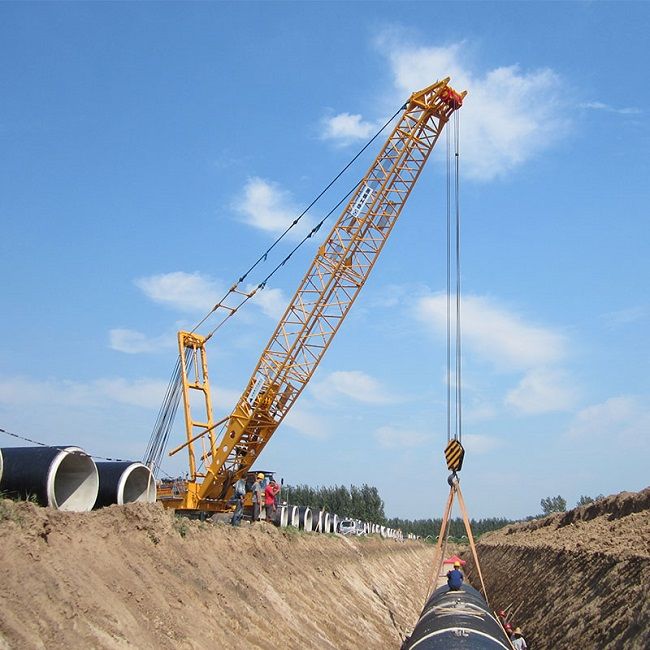

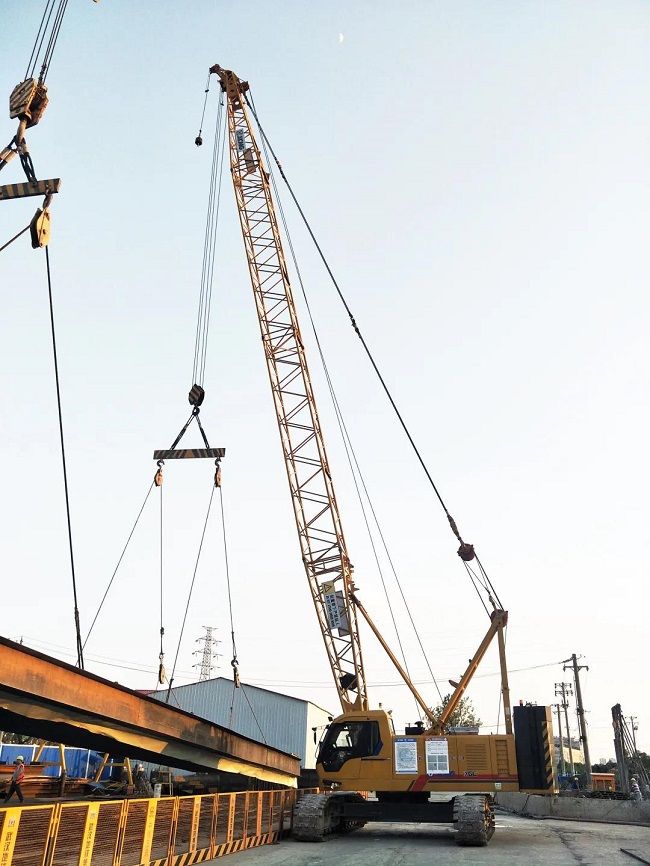

This crawler crane can be used for farmland construction and water
conservancy construction, petrochemical & power engineering, iron
and steel, non-ferrous metals, coal and other resource exploration
and construction, building construction, municipal construction,
port construction and other fields.
Electric control system Intelligent computer integrated
programmable control system is the key technology of the crane. PLC
programmable controller is used, in combination with conventional
electrics, to realize logic control and electronic proportional
control of the system, and to improve safety, reliability and
efficiency for crane operation.
Crane operation can be shown by a larger computer display, easy for
man-machine interaction. Hydraulic system Hydraulic system uses
pilot control,open type circuit combination, divided power controI
variable pump, LUDV valve control flow adjust, featuring less
enengy loss and higher working efficiency. System combination
Hydraulic system is combined with main oil circuit, control oil
circuit and auxiliary oil circuit. Main oil circuit controls main
movements such as lifting, luffing, slewing and travel, auxiliary
oil circuit is used for functions such as assembly, auxiliary
movement, radiation, etc. Hoist winch Main/auxiliary winch has
built-in speed reducer with independent drive, and oii supplied by
combination of two pumps, main hoist winch is installed with high-
strength boIt on turntable and auxiliary hoist winch installed with
pin shaft on boom base to reduce basic machine transport weight.
Main and auxiliary winch can be exchanged with each other. Speed
reducer gas disc type constant closed brake with oil-bath
lubrication for safe and reliable work without maintenance.
Specification
Item | Unit | Parameter value |
Parameter Item | - | XGC100 |
Operation performance parameter | | * |
Max. rated lifting capacity for boom | (t) | 100 |
Max. rated lifting capacity for fixed jib | (t) | 15.6 |
Max. rated lifting capacity for luffing jib | (t) | — |
Max. load moment | (t.m) | 575 |
Max. rated lifting capacity for tower jib | (t) | — |
Max. rated lifting capacity for boom single top | (t) | 13 |
Max. rated lifting capacity for special jib | (t) | — |
Dimension parameter | | * |
Boom length | (m) | 19~73 |
Boom luffing angle | (°) | 30~81 |
Fixed jib length | (m) | 13~25 |
Tower jib length | (m) | — |
Max. dimension of single unit in transport state(L×W×H) | (m) | 10.5×3.0×3.35 |
Fixed jib offset angle | (°) | 15,30 |
Special jib length | (m) | — |
Speed parameter | | * |
Max. single line speed for hoist mechanism | (m/min) | 110/120 |
Max. single line speed for boom luffing mechanism | (m/min) | 34/46 |
Max. single line speed for jib luffing mechanism | (m/min) | — |
Max. slewing speed | (r/min) | 1.4 |
Max. travel speed | (km/h) | 1.3 |
Grade ability | (%) | 30 |
Mean ground pressure | (MPa) | 0.087 |
Max. single line speed for tower jib luffing mechanism | (m/min) | — |
Max. single line speed for superlift luffing | (m/min) | — |
Engine | | * |
Model | - | SC9DK270G3/QSC |
Engine power | (kW) | 200/183 |
Emission | - | National III/EU III |
Mass parameter | | * |
Overall crane mass | (t) | 104.5(main hook, 19m boom) |
Max. mass of single unit in transport state | (t) | 32.5 |
