New XCR70 70 Ton Mobile Crane 5-Section 61m Rough Terrain Crane
70t rough terrain crane with best lifting capacity in its class.
Five-section boom of 45 m, best-in-class working range; min.
turning radius of 6.5 m, smallest in its class, better site
adaptability; innovative self adjustment of turning angle,
multi-mode steering technology, more precise control and more
comfortable manipulation; integrated new energy-saving hydraulic
system and ECO energy-saving control technology, lower energy
consumption and more economical operation cost.
(1) Excellent lifting capacity, wide operating range
The 45 m boom is 2~3 m longer than the competitive products, and
lifting performance leads by 5% ~ 20%; three telescoping modes
contribute to wider operating range and stronger adaptability.
(2) Energy-saving, economical and efficient
Integrated three energy-saving measures such as new energy-saving
hydraulic system, efficient power transmission system and engine
ECO mode control, contribute to 15~24% reduction in fuel
consumption during operations and 20% while driving at high speeds;
Large displacement dual-variable plunger pump with confluent main
valve adopting patented technology integrated, leads to improvement
by 13% in operation efficiency and 20% in fine-control and
operation smoothness.
Low speed large torque optimal transmission chain, high power
performance, max. travel speed of 40 km/h and max. grade ability of
70% contribute to manoeuver ability and quick job site transfer.
(3) People first, smart and convenient
man-machine interactive system with functions such as automatic
planning of working conditions,fault self-diagnosis, and so on
integrated, provides abundant information, user-friendly interface
and reasonable layout of function keys, as well as comfortable,
intelligent and safe operating experience.
Unique self adjustment of turning angle, multi-mode steering
technology, steering wheel-controlled wheels under all steering
modes, easy to operate and more precise control; the turning angle
of rear wheels may self-adjust while switching steering mode,
leading to reduced manipulation difficulty.
Specification
| Dimension | Unit | XCR70 |
| Overall length | mm | 13135 |
| Overall width | mm | 3180 |
| Overall height | mm | 3750 |
| Weight | | |
| Total weight in travel | kg | 49000 |
| Power | | |
| Engine model | | QSB6.7 |
| Engine rated power | kW/(r/min) | 194 |
| Engine rated torque | N.m/(r/min) | 842 |
| Travel | | |
| Max. travel speed | km/h | 25 |
| Min. turning diameter | m | 12.2 |
| Min. ground clearance | mm | 467 |
| Main performance | | |
| Max. rated total lifting capacity | t | 70 |
| Min. rated working radius | m | 2.5 |
| Turning radius at turntable tail | m | 4.1 |
| Max. lifting torque | kN.m | 2033 |
| Full-extend boom | m | 1 1.3 |
| Full-extend boom+jib | m | 43.9 |
| Boom length | m | 58.1 |

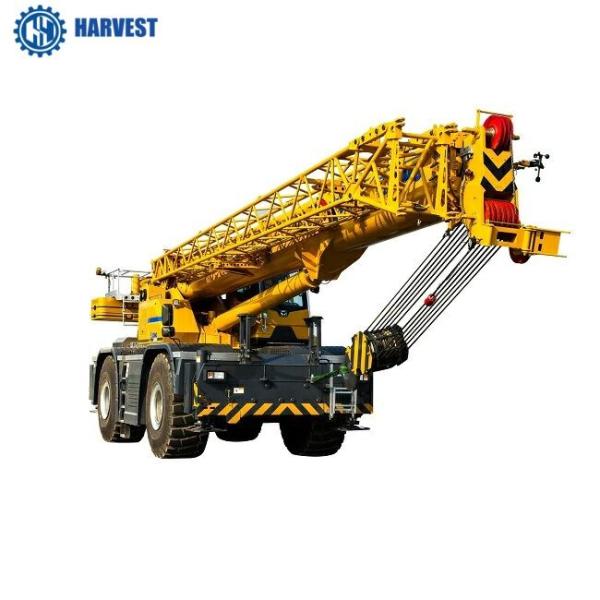

Product Picture
