6-section 58m Concrete Pump Truck HB58K Filling Height 1540mm

Dimensions (length * width * height): 14300×2500×4000mm
Weight: 44000kg
Power type: diesel engine
Certification: ISO9001
Maximum speed: 85
Weight: 44000kg
After-sales service: Services provided: Engineers can be provided for mechanical maintenance services abroad.
Mobile: Wheel
Chassis brand: SINOTRUK
Wheelbase: 2300 + 4000 + 1350mm
Maximum engine power: 294kW
Emission standard: Eruo V
Theoretical output: 170m³/h
Concrete pumping pressure: 7.4MPa
Theoretical pumping time: 25 times/minute
Diameter of the discharge cylinder×outer diameter: φ260×2000mm
Filling height: 1540mm
Place the boom structure: 6RZ
Reached height/depth/radius of gyration: 57.5 / 45.7 / 52.5 meters
Swivel angle: ±270°

Advantages

1. V7 series truck-mounted concrete pump truck is a new generation of equipment developed by Group and German SCHWING company. 2. High reliability, durability, and seven technical highlights. More reliable full hydraulic reversing technology, ultra-low pressure loss hydraulic system technology, safer and more intelligent electronic control system.

Parameter

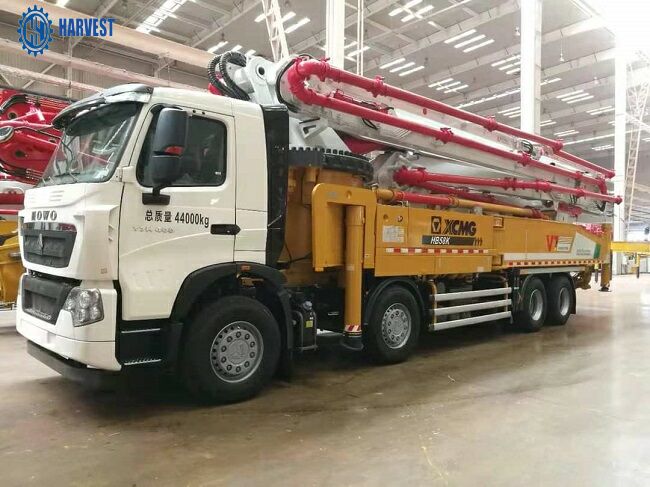

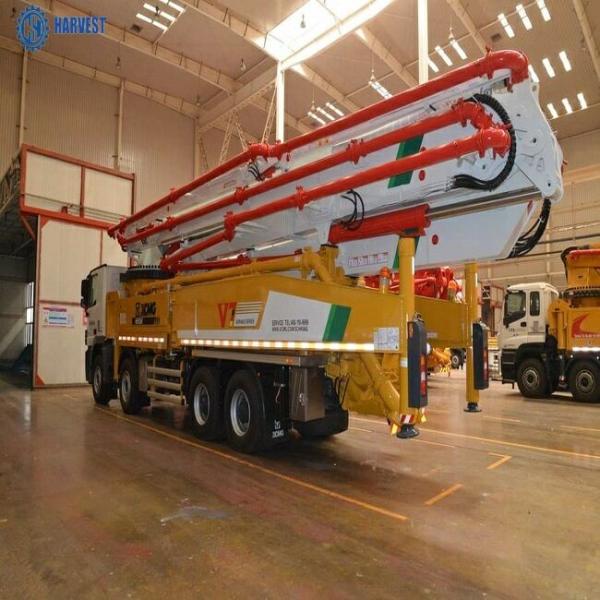

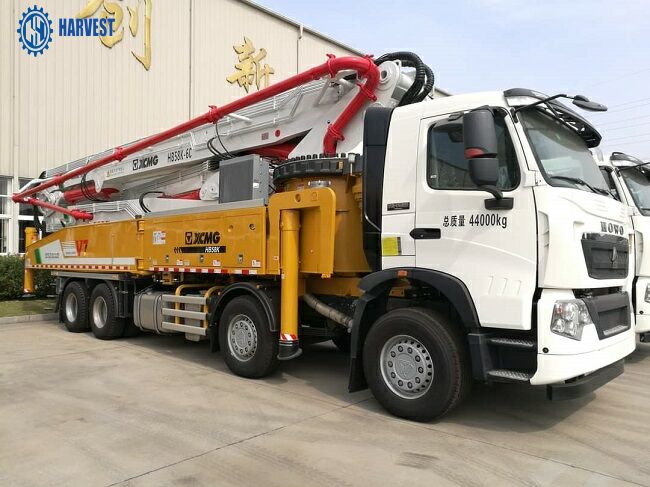

Pump Truck Picture
