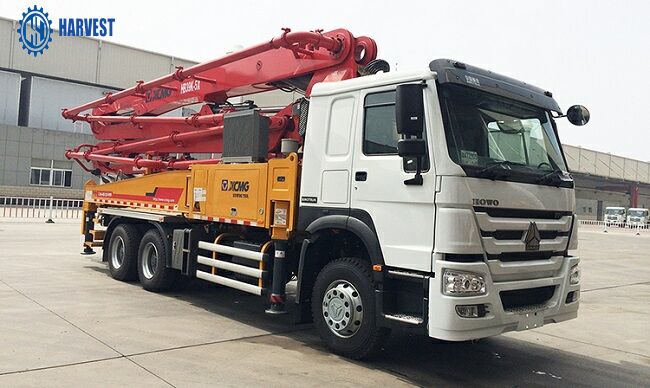

HB39K 39m Truck Mounted Concrete Pump 130m3/H Productivity 1580mm
Filling Height
Dimension(L*W*H): 10955×2500×3800mm Weight: 26500kg Power(W): 279kw
Power Type: Diesel Max.speed: 90 Weight: 26500kg
After-sales Service Provided: Engineers available to service
machinery overseas
Moving Type: wheel Chassis, Manufacturer: Sinotruk,
Wheelbase:4600+1350mm, Engine power: 279kw, Emission standard: Eruo
III
Theoretical output: 130m³/h, Concrete pumping pressure: 8MPa,
Theoretical pumping times: 25 Times / min
Delivery cylinder diameter×stroke: φ230×2000mm, Filling height:
1580mm, Placing boom structure: 5RZ
Reach height / depth / Slewing radius: 39.1/26.8/35.1m, Slewing
angle:±270°
V7 series truck mounted concrete pump is a new generation equipment
which is developed by and SCHWING Germany technology. It is highly
reliable and durable with seven technical highlights. More advanced
boom structure technology, More efficient rock valve pumping
technology, Steadier stabilizer structure technology, Steadier
reversing buffering technology, more reliable fully-hydraulic
reversing technology, Ultra-low pressure loss hydraulic system
technology, safer and smarter electrical control system.
Parameter
Description | Unit | Parameter value |
Outline dimension | mm | 10955×2500×3800 |
Overall weight | kg | 26500 |
Chassis | Model | | ZZ5307N4647C |
Max. speed | km/h | 90 |
Max. grade-ability | % | 40 |
Wheelbase | mm | 4600+1350 |
Tire | | 12.00R20 |
Engine | Model | | WD615.96 |
Max. power | kW | 279 |
Max. torque | N·m/(r/min) | 1590/1100~1600 |
Displacement | L | 9.276 |
Emission standard | | Eruo III |
Pumping system | Theoretical output | m³/h | 130 |
Concrete pumping pressure | MPa | 8 |
Theoretical pumping times | Time/min | 24~27 |
Delivery cylinder diameter ×stroke | mm | φ230×2000 |
Max. diameter of pumping concrete | mm | 40 |
Filling height | mm | 1580 |
Concrete slump range | cm | 8~23 |
Placing boom | Reach height | m | 39.1 |
Reach depth | m | 26.8 |
Slewingradius | m | 35.1 |
Slewing angle | ° | ±270 |
Unfolding angle of the 1st section | ° | 90 |
Unfolding angle of the 2nd section | ° | 180 |
Unfolding angle of the 3rd section | ° | 180 |
Unfolding angle of the 4th section | ° | 235 |
Unfolding angle of the 5th section | ° | 210 |
Stabilizer span | Longitudinal span of stabilizer | mm |
6625 |
Transverse span of front stabilizer | mm | 5951 |
Transverse span of rear stabilizer | mm | 7368 |
Others | Lubrication method | | Automatic lubrication |
Control method | | Manual/remote control |
Volume of water box | L | 600 |
