ADR 40/60ton Side Wall Semi Trailer 1310mm Axlebase For Cargo Truck

Ask Lasest Price
Brand Name :	Harvest
Model Number :	Harvest
Certification :	CE/DOT/ADR
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	1000 units/month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

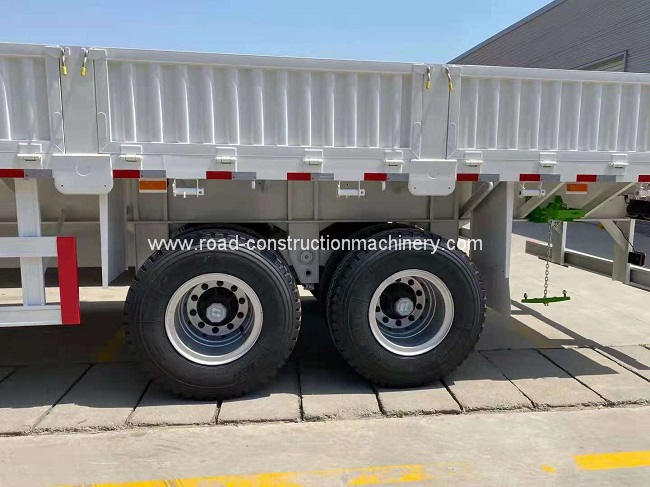

ADR 40/60ton Side Wall Semi Trailer 1310mm Axlebase For Cargo Truck

Payload 40/60 Ton Side Wall Semi-Trailer For Containers/Cargo Transport Pallet truck

We provide semi-trailers of various tonnages and models, and can also be customized according to customer requirements. Our semi-trailers are exported all over the world. Quality first, win-win cooperation.

Side Wall Semi-Trailer Technical Parameters

Side Wall Semi-Trailer Product Description
External Dimension	13000mm×2590mm×2400mm
Main Beam	Heavy duty and extra durability I beam; opting for high tensile steel Q345,welding by automatic submerged-arc processes; Top flange 14mm,width 140mm;middle flange 8mm; bottom flange 16mm,width 140mm
Side Beam	16# channel steel(U-steel)
Floor	Checkered plate ,thickness 5mm,Q235 material
Side wall	800mm,by your need
Axle	Number	3	Brand	FUWA	Capacity	13T
Suspension	Mechanical suspension
Leaf Spring	90mm×13mm×10
Tire	12.00R20
Wheel rim	8.5-22.5 steel wheel rim optional upon choice
King pin	2’/3.5’ bolt-in type
Landing gear	Holland, two-speed ,manual operating, heavy duty landing gear
Twist lock	4/8/12,By your need
Braking System	WABCO RE6 relay valve; T30/30 spring brake chamber ;40L air tanks
Electrical System	Voltage 24V, receptacle 7 ways (7 wire hamess); LED light, one set 6-core standard cable.
Painting	Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2 coats of final paint
Accessories	One standard tool box
