Name: 80ton 3 Axle Flatbed Semi Truck Trailer For Cargo Transport
Brand: Harvest
Price: 1 USD

Add to Cart

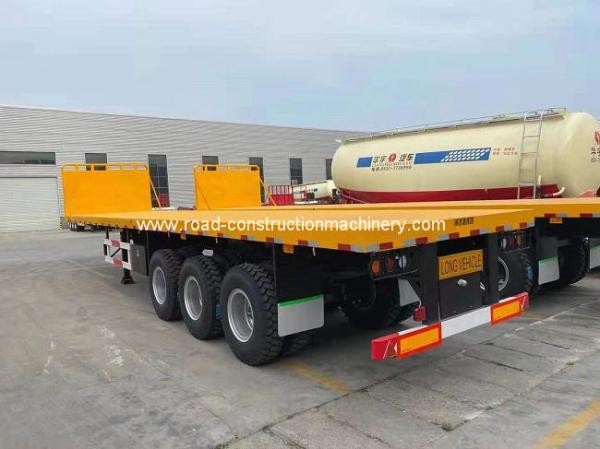

80 Ton 3 axle Flatbed semi trailer truck trailer for cargo transport

Flatbed semi trailer Product Description
External Dimension	12600mm×2500mm×1550mm
Main Beam	Heavy duty and extra durability I beam; opting for high tensile steel Q345,welding by automatic submerged-arc processes; Top flange 14mm,width 140mm;middle flange 8mm; bottom flange 16mm,width 140mm
Side Beam	16# channel steel(U-steel)
Floor	Checkered plate ,thickness 3mm,Q235 material
Axle	Number	3	Brand	FUWA	Capacity	13T
Suspension	Mechanical suspension
Leaf Spring	901310Layer
Tire	315/80R22.5
Wheel rim	9.0-22.5 steel wheel rim optional upon choice
King pin	2’/3.5’ bolt-in type
Landing gear	Jost, two-speed
Twist lock	4/8/12,By your need
Braking System	WABCO RE6 relay valve; T30/30 spring brake chamber ;40L air tanks
Electrical System	Voltage 24V, receptacle 7 ways (7 wire hamess); LED light, one set 6-core standard cable.
Painting	Complete chassis sand blasting to clean rust ,1 coat of anticorrosive prime,2 coats of final paint
Accessories	One standard tool box; one spare wheel carrier
