76KW Self Loading Mixer HK2.5 Output 2.5m3 4-Wheel Steering Sale to
Ethiopia
The fully automatic self-loading mixer truck integrates three types
of machinery: loader, concrete mixer truck and transport truck, so
it has three functions at the same time. It can complete the three
steps of loading, mixing and transportation by itself, so the work
efficiency is much higher than that of traditional concrete mixer
trucks.
Advantages of HK2.5 Self Loadding Mixer Truck
1. Stable quality of mixed cement
Due to the high degree of automation of the fully automatic self
feeding mixer truck, the cement grade mixed can be guaranteed and
the stability is also better.
2. Suitable for many occasions
Since the automatic self-feeding mixer has its own water tank and
pump, it can pump water as long as there is water, and it is
suitable for more occasions.
3. Simple operation, save manpower
Since the automatic self-feeding mixer has a higher degree of
automation, it is relatively simple to operate, usually only two
people can work, and others only need to do some auxiliary work,
which saves a lot of manpower.
How to choose the capacity of the self-loading concrete mixer?
Choosing the capacity of self-feeding mixer truck is a very
important decision, which will directly affect your construction
work efficiency and cost.
- First of all, the factors to be considered include the size of the
construction project, the amount of concrete to be used, and the
condition of the construction site. At the same time, the
performance and specifications of the mixer truck should also be
considered to ensure that it can meet your needs.
- Typically, the capacity of the mixer truck will be determined based
on the amount of concrete required. Generally speaking, the
capacity of a mixer truck can be categorized into small, medium and
large.
Small mixer trucks usually have a capacity of between 1-3 cubic
meters and are suitable for small construction projects or when the
construction site is narrow. They are usually more flexible and
suitable for scenarios that require frequent handling.
Medium-sized mixer trucks have a capacity of between 4-6 cubic
meters and are suitable for medium-sized construction projects. They
usually have high mixing efficiency and handling capacity and are
suitable for general construction projects.
Large mixer trucks have a capacity of between 7-12 cubic meters and are suitable for large-scale construction projects or where
large quantities of concrete are required. They usually have high
performance and production capacity to meet large-scale
construction needs.
- In addition to the capacity, you also need to consider the
performance parameters of the mixer truck, such as the mixing drum
speed, discharge height, mixing efficiency and so on. These
parameters will directly affect the operating efficiency of the
mixer truck and the quality of concrete.
Specification of Front Wheels Steering Self Loading Mixer HK2.5
| Model | HK2.5 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
Function | Concrete, sand, fertilizer compound, wet or dry feed materias
mixing and discharging |
| Productivity | Batch≤15mins, 4 batchs/hour |
| Driving | 4 x 4 |
| Steering | Front steering |
Engine | Yunnei engine: four-cylinder 2200rpm, 76kw |
| Speed | High speed: 32.5km/h; Low speed:5.5km/h |
Gear number | Three forwards, three backwards |
Fuel consumption | Idle state 1.8L-2L, working state 5L-7L. |
| Tire | 23.5-16 (Steel wire tyre) |
| Drum | Geometric volume 3.6 cubic meters, the best stirring 2.2-2.5 cubic
meters |
Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing
material more uniform.Turn the feed left, turn the discharge right |
Tilt of mixing tank | 16° |
Mixing tank 70°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle
for discharging around the vehicle |
| Tipping chute | Equipped with 2 chute for detachable to increase discharging length |
| Shovel | Shovel capacity: 0.35m³ |
Bucket discharge switch | Hydraulic gate, electric control |
| Operation handle | Electric control button four-way guide handle |
Moving hydraulic | Pump: Denghong |
Torque converter(HANK) |
Work hydraulic | Pump/valve: Denghong |
Mixing system | Speed reducer:(HANK) |
Mixing motor(ZHENJIANG DALI) |
| Drive axle | Liufeng |
Water supply | Hydraulic driving self-priming pumps. |
High-pressure water pump wash | High-pressure water pump wash |
Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage180L, Summer: NO68 hydraulic oil, winter: NO46 hydraulic
oil, very cold zone: NO35 hydraulic oil |
Water tank capacity | 370L |
Diesel tank capacity | 180L |
Whole weight | Complete vehicle kerb mass 6800kg |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Fire extinguisher |
| Astern image |
| Alarm lamp | Standard configuration |
| Radio | Standard configuration |
| A/C | Optional |
| Escape hammer | Standard configuration |
Astern sound prompt | Standard configuration |
Walking control mode | Standard: Configuration mechanical | Optional:Electric control |
Some key points of self-loading concrete mixing truck
Maintenance: Regularly check the components of the mixer truck, such as engine,
transmission, suspension, braking system, tank, etc., to ensure
their normal operation and service life.
Safe operation: When operating the mixer truck, attention should be paid to safety
and traffic rules, especially in the process of driving, to avoid
sharp turns, emergency braking and other operations, so as not to
cause the mixer truck overturned or material leakage and other
accidents.
Tank cleaning: The tank of the mixer truck needs to be cleaned and maintained on
a regular basis to prevent material residue and tank corrosion.
Mixing blade: The mixing blade is the main mixing component inside the tank and
should be regularly checked for wear and tear and replaced if
necessary.
Road condition selection: When selecting a route, the width of the road, gradient, curves
and other factors should be considered to ensure the safe driving
of the mixing truck and stable transportation of materials.
Load limit: The mixer truck has a certain load limit, which should be
reasonably controlled according to the model and specification of
the mixer truck and the carrying capacity of the road to ensure the
safe operation of the mixer truck.
Quality control: During the preparation and transportation of concrete, the mixing
ratio, mixing time, mixing speed and other parameters of the
concrete should be strictly controlled to ensure the quality of the
concrete.

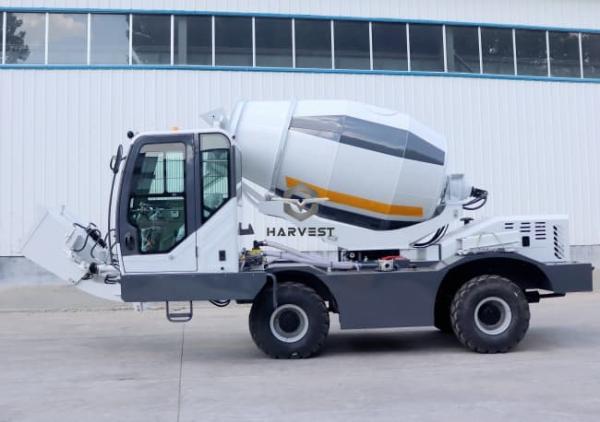

Detail pictures of Self Loading Mixer HK2.5 4-Wheel Steering Sale
to Ethiopia
