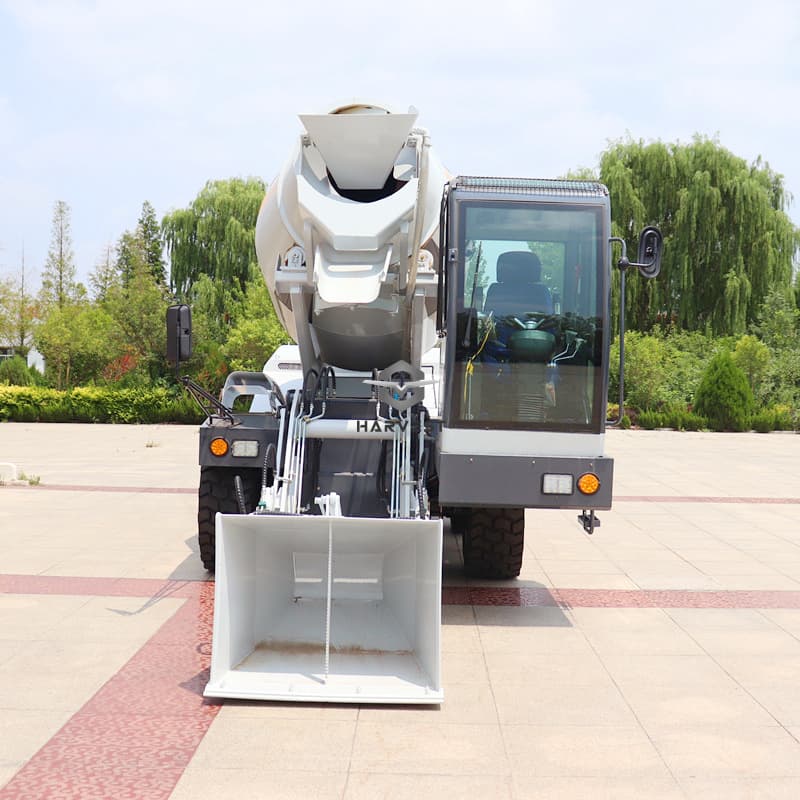

China Self Loading Mixer 4m3 HK4.0 With Electronic Weighing System
For Sale
An automatic feeding mixer truck can be used as three mechanical
vehicles, integrating loading, mixing, transporting and discharging
at a fixed point, perfectly replacing some of the effects of
loaders, mixers, transport trucks and pump trucks. After more than
20 years of experience in construction machinery research and
development and production and the practical application of
customers around the country, proved that the automatic loading
mixer truck was born for the production of concrete, and to solve
the peripheral problems and born, the real multi-purpose machine.
Self-loading concrete mixer has the following advantages:
Self-feeding mixer truck, averaging one tank of material every 15
minutes. Automatic feeding large-capacity hopper, fast feeding. Two
hydraulic discharge ports for quick unloading, saving the time of
unloading, and improving the efficiency by several times compared
with just using a mixer.
At present, the labor cost in the construction industry is getting
higher and higher, the automatic loading mixer truck can save the
labor cost. In the past, 7 or 8 workers are needed to make concrete
together, even in the way of mixer, 5 or 6 laborers are needed to
load, water, transport and unload respectively, while the automatic
loading mixer truck can be operated by only 2 laborers, one of
which is responsible for the operation, and one is responsible for
the auxiliary swinging of the material, which greatly reduces the
labor expense fee.
It is difficult for big tank trucks to go up the hill due to their
own weight and their own structure, and accidents are easy to
happen if they are not careful, but it is quite simple for
automatic loading mixer trucks. Scientific design, articulated
body, four-wheel drive, climbing within 30 degrees of power. If the
construction site is in the low-lying area, either it can be paired
with the pipeline to transport concrete downward, or it can
“personally go” to unload the material at a fixed point. Plateau is
also no problem for automatic feeding mixer truck, can be
customized for users to meet the local environment of the plateau
engine, automatic feeding mixer truck in the plains how to play,
how to play on the plateau.
- Specializing in various rugged paths
The road up the mountain has many curves and slopes, and the road
into the village is often narrow. In recent years, the new rural
high-speed development, infrastructure projects in full swing, road
repair and hardening of pavement, renovation of old houses and new
house construction, etc., each of which symbolizes the improvement
of the standard of living of the villagers, but a lot of rural
roads are not only potholes, but also extremely narrow, large
concrete trucks can not get in, the self-feeding mixer trucks with
flexible frame with a small turning radius can be easily dealt
with.
Overall, self-feeding mixer trucks are very popular as they are
efficient, cost-saving, full-featured and safe, and play a vital
role in small and medium-sized projects.
Specification of Front Wheels Steering Self Loading Mixer HK2.5
| Model | HK4.0 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
Function | Concrete, sand, fertilizer compound, wet or dry feed materias
mixing and discharging |
| Productivity | Batch≤15mins, 4 batchs/hour |
| Driving | 4 x 4 |
| Steering | Rear steering |
Engine | Yunnei engine: four-cylinder 2200rpm, 92kw |
| Speed | High speed: 36.5km/h; Low speed: 6.5km/h |
Gear number | Three forwards, three backwards |
Fuel consumption | Idle state 2L-3L, working state 6L-8L. |
| Tire | 16/70-24(Steel wire tyre) |
| Drum | Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic
meters |
Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing
material more uniform.Turn the feed left, turn the discharge right |
Mixing tank 70°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle
for discharging around the vehicle |
| Tipping chute | Equipped with 2 chute for detachable to increase discharging length |
| Shovel | Shovel capacity: 0.55m³ |
Bucket discharge switch | Hydraulic gate, electric control |
| Operation handle | Electric control button four-way guide handle |
Moving hydraulic | Pump: Denghong |
Torque converter(HANK) |
Work hydraulic | Pump/valve: Denghong |
Mixing system | Speed reducer:(HANK) |
Mixing motor(ZHENJIANG DALI) |
| Drive axle | Liufeng |
Water supply | Hydraulic driving self-priming pumps. |
High-pressure water pump wash | High-pressure water pump wash |
Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage180L, Summer: NO68 hydraulic oil, winter: NO46 hydraulic
oil, very cold zone: NO35 hydraulic oil |
Water tank capacity | 520L |
Diesel tank capacity | 180L |
Whole weight | Complete vehicle kerb mass 7600kg |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Fire extinguisher |
| Astern image |
| Alarm lamp | Standard configuration |
| Radio | Standard configuration |
| A/C | Optional |
| Escape hammer | Standard configuration |
Astern sound prompt | Standard configuration |
Walking control mode | Standard: Configuration mechanical | Optional:Electric control |
Structure and Composition of Self-loading Concrete Mixer HK4.0 for
Sale
The composition of self-feeding concrete mixer truck is mainly
composed of engine, traveling system, mixing tank, self-feeding
device, hydraulic system, water supply system, oil supply system,
electrical system and other parts.
Body structure: automatic feeding concrete mixer truck usually adopts underbody or
trailer structure, and the body is made of high-strength cast iron
or steel to ensure the stability and service life of the whole
vehicle structure.
Power system: The power system of a mixer truck usually consists of engine and
transmission device, the engine can be domestic or imported brands,
the transmission system usually adopts hydraulic transmission or
mechanical transmission.
Mixing tank: The mixing tank is the core component of the concrete mixer truck,
and usually adopts the top-mounted or rear-mounted tank, and the
surface of the mixing tank is covered with ordinary carbon steel or
stainless steel plate to prevent the concrete from adhering to and
corroding the tank.
Mixing device: The mixing device includes the main motor, gear reducer, mixing
blade, hydraulic pump and engine, etc. It is mainly used for mixing
concrete raw materials, and the concrete is discharged from the
lower part of the tank after being mixed.
Automatic feeding concrete mixer
Hydraulic system: The hydraulic system of automatic feeding concrete mixer is mainly
used to drive the mixing tank and conveying pump, etc. Its main
hydraulic components include oil pump, oil tank, hydraulic valve,
oil pipe, etc. The hydraulic system of automatic feeding concrete
mixer is mainly used to drive the mixing tank and conveying pump.
Operating system: The operating system of the mixer truck includes cab, controller
and circuit, etc. It is mainly used to control the driving, mixing
and discharging operation of the mixer truck.
