1.5m3 Self Loading Mixer HK1.5 With Electronic Weighing System 76KW
Euro 2
Automatic feeding mixer truck mixer tanker and loading truck
two-in-one combination, 1-2 people can operate that can save time
and labor, more for road repair, bridge repair, tunnel repair,
infrastructure and so on. Suitable for rural construction for small
automatic feeding mixer truck, 1.5 square, 2.5 square, 3.0 square,
etc. are more popular in rural construction of automatic feeding
mixer models, mixer truck body overall size is small, suitable for
transportation of concrete in a narrow environment construction.
Production Features
- Independence: this kind of automatic feeding mixer can complete the functions of
loading, mixing, transportation and unloading independently.
- Multi-function: the automatic feeding mixer replaces the functions of loader,
mixer, transportation truck, generator set, etc.; it also has its
own water tank, external suction pump, automatic feeding mixer, and
constantly supplies water to the mixer where there is a water
source; the multi-angle 270-degree rotating unloading, adapted to a
variety of different geographical environments.
- Easy to operate: only two people are needed to produce with it, the driver operates
the automation program, others do some auxiliary work, the
operation of the automation program is very simple, a few hours to
learn to drive.
- High cost performance ratio: the automatic feeding mixer truck, eliminating the need for
loaders, mixers, transport trucks, generator sets, water trucks and
other equipment costs and labor costs, saving time and effort,
reasonable price, high cost performance.
- Strong power: full horsepower can adapt to many environments.
Efficiency of the self-loading mixer
- Our self-feeding mixer trucks have a capacity of 1,5m3, 2.5m3, 3m3,
4m3, 5.5m3, and from the beginning of loading, watering and mixing,
it churns out a tank of material in 15 minutes on average, that is
to say, it produces 4 tanks of material per hour on average, and it
can produce 16 cubic meters of concrete per hour.This efficiency is
directly increased several times compared to the previous mixer +
multiple workers mode of producing concrete.
- In addition, the 270-degree rotary unloading function can also
improve a lot of efficiency, while transporting, unloading, workers
with tools to push it flat can be, in the construction of roads,
bridges, self-constructed housing, building factories, berms,
embankments, foundations, ground, and other projects in the
performance of the performance of the efficiency value of the full
frame.
This machine has the advantages of compact structure, simple
organization, light weight, small volume, flexible operation, fast
unloading, convenient transfer, short mixing time, high
productivity, etc. It periodically loads, mixes and discharges
materials.
Specification of 65KW Self Loading Mixer HK1.5
| Model | HK1.5 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
Function | Concrete, sand, fertilizer compound, wet or dry feed materias
mixing and discharging |
| Productivity | Batch≤15mins, 4 batchs/hour |
| Driving | 4 x 4 |
| Steering | Rear steering |
Engine | Yunnei engine: four-cylinder 2200rpm, 65kw |
| Speed | High speed: 30km/h; Low speed:4km/h |
Gear number | Three forwards, three backwards |
Fuel consumption | Idle state 1L-1.8L, working state 4L-6L. |
| Tire | 23.5-16 (Steel wire tyre) |
| Drum | Geometric volume 2.2 cubic meters, the best stirring 1.2-1..5 cubic
meters |
Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing
material more uniform.Turn the feed left, turn the discharge right |
Tilt of mixing tank | 16° |
Mixing tank 70°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle
for discharging around the vehicle |
| Tipping chute | Equipped with 2 chute for detachable to increase discharging length |
| Shovel | Shovel capacity: 0.35m³ |
Bucket discharge switch | Hydraulic gate, electric control |
| Operation handle | Electric control button four-way guide handle |
Moving hydraulic | Pump: Denghong |
Torque converter: HANK |
Work hydraulic | Pump/valve: Denghong |
Mixing system | Speed reducer: HANK |
Mixing motor: ZHENJIANG DALI |
| Drive axle | Liufeng |
Water supply | Hydraulic driving self-priming pumps |
High-pressure water pump wash | High-pressure water pump wash |
Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage110L, Summer: NO68 hydraulic oil, winter: NO46 hydraulic
oil, very cold zone: NO35 hydraulic oil |
Water tank capacity | 240L |
Diesel tank capacity | 110L |
Whole weight | Complete vehicle kerb mass 5600kg |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel |
| Adjustable seat |
| Fire extinguisher |
| Astern image |
| Alarm lamp | Standard configuration |
| Radio | Standard configuration |
| A/C | Optional |
| Escape hammer | Standard configuration |
Astern sound prompt | Standard configuration |
Walking control mode | Standard: Configuration mechanical | Optional:Electric control |
How to Operate the Self Loading Mixer?
1. Inspection equipment
Check the liquid level: Check the level of basic fluids, such as
hydraulic oil, engine oil, and coolant. If the liquid is too low,
it should be replenished in time. Check tire pressure: Proper tire
pressure is essential for the stability and maneuverability of the
mixer.
2. Starting device
Turn the key first to start the engine. Then open the control
panel, the screen will show the weighing system and watering
system, etc. Familiarize yourself with the various controls and set
them to appropriate Settings.
3. Control equipment
Using the electronic gear shift lever to control the flexible
movement of the self-loading mixer, the mobile joystick can control
the loading and unloading of concrete, and realize the on-site
production and pouring of concrete.
4. Cleaning equipment
After pouring, cut off the power supply, connect the high pressure
pump, and wash the surface of the equipment. After the basic rinse,
you can use a scraper and brush to clean up the small amount of
concrete left behind.

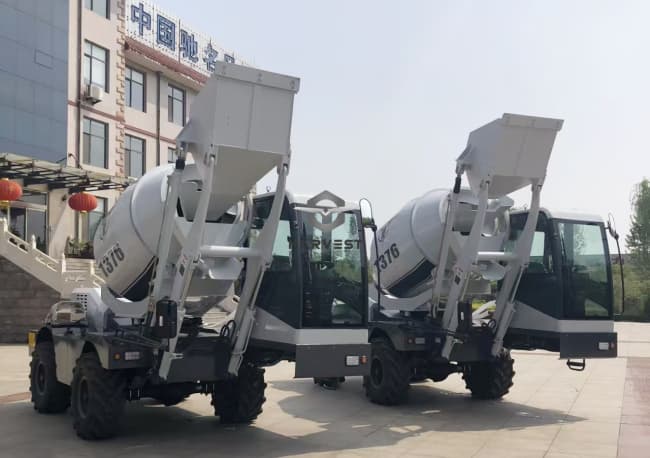

Detailed Photos of 65KW Self Loading Mixer HK1.5 Max. Output 1.5m3
Rear Steering Sale in Africa
