China Tracked Skid Steer Loader TS100 Rated Load 1000kg with 74.9kw
Engine
Tracked Skid Steer Loader TS100: The Perfect Fusion of Strength and
Efficiency
With 39 years of dedicated development in the construction
machinery industry, our factory has been committed to crafting
high-quality products with ingenuity and driving innovation. Thanks
to our profound technical accumulation and continuous R&D
investment, we have become a trusted leading brand in the industry.
The Tracked Skid Steer Loader TS100, as a masterpiece of our brand,
embodies 39 years of professional expertise, offering you an
unparalleled superior experience.
► Core Performance, Exceptionally Outstanding
The TS100 is equipped with a powerful 74kW engine, delivering
surging power at your fingertips. It can effortlessly handle
heavy-duty handling tasks and complex working conditions. With a
rated load capacity of 1200kg, far exceeding that of similar
models, it significantly boosts your work efficiency. The
all-wheel-drive design, without inter-axle differentials, ensures
stable operation even on rough, muddy, and slippery terrains,
guaranteeing efficient task execution.
► Flexible, Efficient, and Multi-functional
The TS100 features a compact structure and agile steering, with a
minimum turning radius less than half that of comparable
articulated loaders. It can easily maneuver through narrow alleys
and indoor spaces. By quickly changing dozens of attachments such
as buckets, breaker hammers, sweepers, and milling cutters, it can
instantly perform various functions like loading, excavation,
crushing, sweeping, and milling, meeting the operational needs of
multiple fields including construction, mining, municipal
maintenance, and agricultural production. Truly, with one machine
in hand, all tasks are worry-free.
► Ingenious Quality, Reliable and Durable
We not only offer products with outstanding performance but also
are dedicated to building a comprehensive service system. With 39
years of industry experience, we have cultivated a professional and
responsive after-sales service team. Wherever you are, if you
encounter any equipment issues, just make a call. Our after-sales
personnel will respond within 24 hours to quickly diagnose and
resolve problems. Moreover, our ample stock of original factory
parts ensures timely supply, minimizing equipment downtime to the
greatest extent.
Product Specifications
| Model number | TS100 |
| Performance parameter |
| Rated load(kg) | 1200 |
| Maximum speed(KM/H) | 9-18 |
| Hydraulic flow(L/min) | 88 |
| Engine model | Weichai WP4.1 |
| Rated Power(kW) | 74.9 |
| Fuel tank capacity(L) | 90 |
| Operating weight(kg) | 4500 |
| Bucket capacity (m) | 0.55 |
| Dimension parameter |
| Overall Length with bucket(mm) | 3700 |
| Without bucket length(mm) | 3000 |
| Height to bucket hinge pin(mm) | 3280 |
| Overall operating height(mm) | 4070 |
| Height to top of Cab(mm) | 2160 |
| Width with bucket(mm) | 2030 |
| Width(mm) | 1994 |
| Dumping height(mm) | 2500 |
| Dumping reach(mm) | 700 |
| Wheel base(mm) | 1500 |
| Bucket tipping angle at maximum (mm) | 104 |
| Wheelbase (mm) | 991 |
| Tread width(mm) | 1654 |
| Front turning radius(mm) | 2200 |
| Rear truning radius(mm) | 1742 |
| Angle of departure(°) | 20 |
| The bucket reverses the Angle at its highest(°) | 104 |
| Track width(mm) | 320*86 |
| Track ground length(mm) | 1500 |
| Ground clearance(mm) | 200 |
| Overall dimensions(mm) | 3700×2030×2160 |
China Brand Tracked Skid Steer Loader TS100 Detailed Introduction

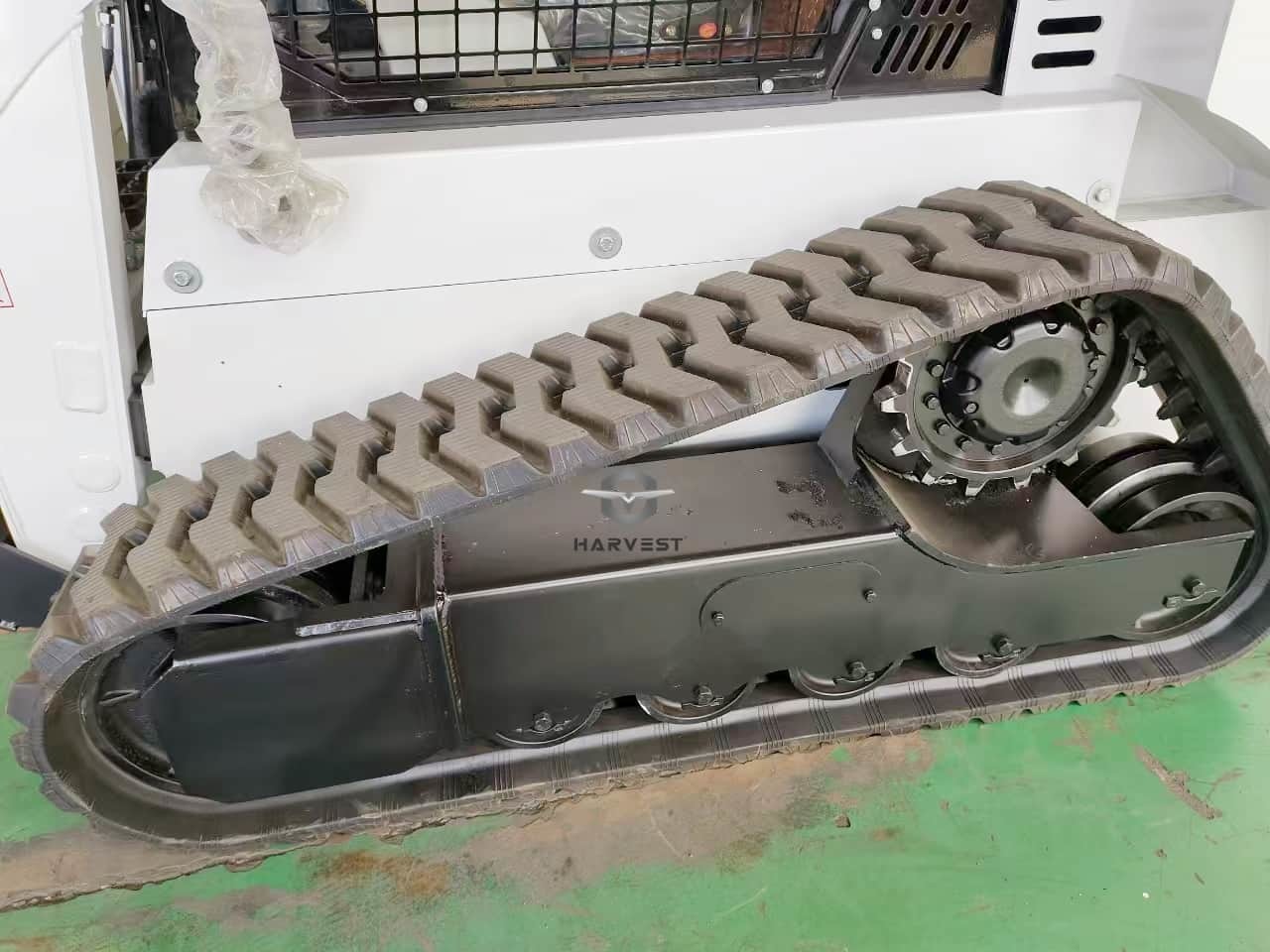

The TS100 skid - steer loader adopts a tracked walking mode, with
the model number 320×86. The track has a large contact area with
the ground and a small ground - contact pressure, enabling it to
travel on muddy, soft and other harsh terrains without easy
slipping or sinking. It can also reduce damage to the ground,
making it suitable for places with high requirements for ground
protection. Moreover, it has good cross - country and climbing
capabilities and can adapt to complex terrains.
The quick - change device allows the loader to quickly replace
different attachments, such as buckets, breaker hammers, milling
machines, mowers, etc. The replacement process is simple and
convenient, usually taking only a few minutes, which improves the
versatility and operation efficiency of the equipment, enabling one
device to work in various working conditions such as shoveling,
stacking, lifting, digging, drilling, and breaking. During
operation, first close the two - way ball valves on both sides and
remove the quick - change connectors on both sides. Then start the
vehicle, pull the quick - change handle inward to retract the quick
- change cylinder, and pull it outward to extend the cylinder.
Finally, connect the quick - change connectors on both sides and
close the ball valves.
- Operational Comfort: The interior space is spacious, allowing the operator to move
freely and reducing the sense of constriction during long - term
operation. The seat may have functions such as shock absorption to
reduce operation fatigue.
- Operational Precision: It adopts a pilot - operated control system.
The control levers are light and flexible, enabling precise control
of the loader's movements and improving operation accuracy.
- Good Visibility: The cab design optimizes visibility, greatly
reducing the blind areas in the front and on the sides. When
shuttling in a narrow construction site or handling fine materials,
the operator can accurately grasp the surrounding environment,
enhancing the safety and accuracy of operation.
The multifunctional buttons integrate a variety of control
functions:
- Work - device Control: They can control lights, wipers, etc., to
meet the lighting and clear - vision requirements in different
working environments.
- Safety Warning: For example, the red emergency stop button can
quickly stop the equipment in case of an emergency, ensuring the
safety of personnel and equipment. There is also a warning light
button, and when turned on, it warns surrounding personnel of the
equipment's operating status.
- Other Functions: It may include controlling the air - conditioning
(if optional), engine pre - heating, etc., for convenient
operation.
- Optional Air - conditioning
The TS100 skid - steer loader offers an optional heating and
cooling air - conditioning. After installation, it can cool in hot
summers and heat in cold winters, adjusting the temperature in the
cab to create a comfortable operating environment. It reduces the
fatigue of the operator caused by inappropriate ambient
temperatures and improves work efficiency and comfort.
