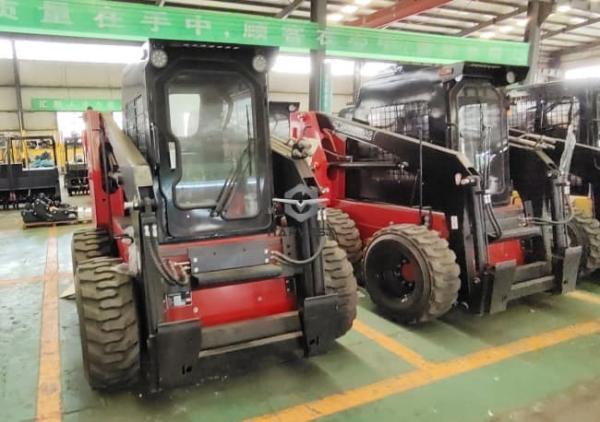

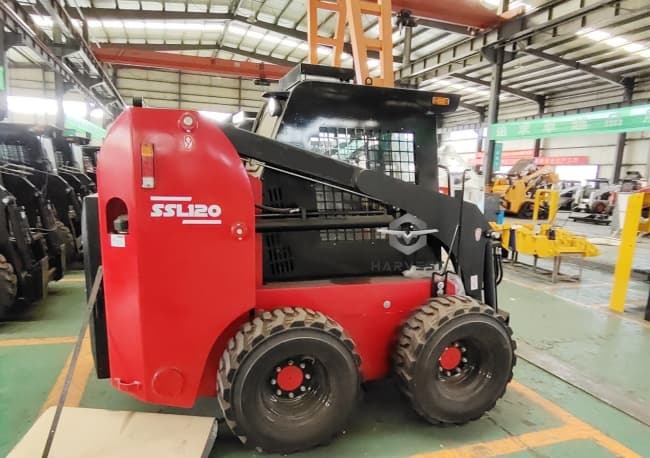

Dual-speed Skid Steer Loader 0.55m3 JC120 Weichai 140HP Sale in
Cameroon
What is a
skid steer loader?
Skid steer loader (SSL), also known as skid loader, multifunctional
engineering vehicle, multifunctional engineering machine, is a kind
of wheeled special chassis equipment using the difference in linear
speed of the wheels on both sides of the vehicle to realize the
steering, the use of wheeled walking mechanism, all-wheel drive,
skid steering, can be randomly and quickly replaced at the site of
the operation or hooked up to a variety of working devices to adapt
to different working environments and job content. It can be
randomly and quickly replaced or connected with various working
devices at the work site to adapt to different working environments
and work contents.
JC120 Skid Steer Loader with Snow Blower
Snow blower is an important equipment for snow removal, has become
the mainstay of snow removal equipment, high efficiency and
practicality. Compared with other snow removal machinery, snow
blowers have a more complex structure and a more rational design,
which can be said to be the main technological improvement in the
snow removal industry. Snow blowers can directly remove the natural
snow on the road surface or compacted snow, suitable for snow
removal on high-grade roads, city roads and squares.
Snow throwers are mainly composed of a prime mover, a transmission
unit, a snow collection device, a snow removal device, a traveling
system and an operating system. The snow collection device is used
to collect snow, mainly using snow shovels or augers, and the snow
thrower throws the collected snow to the side of the road, or in
the collection equipment. The main method is to throw snow
impellers and blowers, the operating device mainly controls the
operation of the device and the direction of travel.
Parameters of the snow blower equipped with JC120
Item: 84'' Snow Blower
Operation width: 2130mm
Throw distance: >6m
Operation pressure: 16MPa
Operation flow: 75-115
Weight: 410kg
Length: 900mm
Width: 2150mm
Height: 690mm
Which country might a snow blower be needed?
The countries that use skid steer loaders equipped with snow
blowers are mainly concentrated in regions with cold climates and
high winter snowfall. These countries mainly include:
Northern European countries: such as Sweden, Norway, Finland and
other countries, because these countries have long winters and
large amounts of snowfall, road snow clearing work is very frequent
and important.
Russia: due to the vast area of the country, the climate varies
greatly from place to place, many areas will snow in winter, so it
is necessary to use such equipment.
Japan: Especially in Hokkaido area, a lot of snowfall in winter,
skidding snow thrower is its common equipment.
Technical Parameter
Description | Unit | JC120 |
Engine | Model |
| Weichai |
Rated power | KW | 103 |
Emission |
| Euro 3 |
Working hydraulic system | Standard flow | L/min | 75 |
Optional high flow | L/min | 140 |
Traveling System | Maximum traveling speed | Km/h | 9/18 |
Tire specification |
| 12-16.5 |
Control system | Operating weight | Kg | 3600 |
Loading performance | Rated load | Kg | 1200 |
Bucket capacity | m3 | 0.55 |
Overall dimensions | Overall operation height | mm | 4070 |
Height to bucket hinge pin | mm | 3280 |
Height to top of cab | mm | 2160 |
Height to bottom of level bucket | mm | 3140 |
Dumping angle at maximum height | ° | 40 |
Dumping height | mm | 2500 |
Dumping reach | mm | 700 |
Wheelbase | mm | 1115 |
Gound clearance | mm | 205 |
Angle of departure | ° | 20 |
Font tuning radius | mm | 2144 |
Rear tuning radius | mm | 1857 |
Tread width | mm | 1500 |
Width | mm | 1880 |
Bucket width | mm | 1880 |
In addition to the snow blower, what other attachments is is the
skid steer loader road snow removal optional?
