4279*610mm Blade Motor Grader Machine 922F 6F/3R Gears With 5-Shank Ripper

High efficiency and reliability

1. The Shangchai engine increases ECO mode, which is more energy-saving and environmentally friendly, and the whole vehicle optimizes the axle load ratio for better traction performance.
2. The variable piston pump is directly connected to the gearbox, which has high transmission efficiency, reduces the noise of the vehicle and improves the performance of the whole vehicle.
3. Standard equipped with shovel blade floating function, which reduces the working difficulty and operator's working intensity, and effectively improves the construction efficiency.
4. Large-diameter plastic fan with large air volume and good cooling effect can better ensure the continuous and stable work of the machine; lower noise and improved driving comfort.

Sturdy and durable

1. Flanged box structure frame ensures durability under continuous high-intensity operation and prolongs the service life of structural parts.
2. Continuous upper and lower plate structure of the front frame, CAE global optimization, ensuring consistency and high strength.
3. The traction frame is made of two square steel to form an A-shape structure, which has good durability and strength, long service life and low failure rate.
4. Caterpillar's in-house rear axle with four planetary gears for final drive and higher load carrying capacity.
5. Reinforced gearbox guards are standard, providing comprehensive protection for the gearbox and the urea exhaust gas treatment tank.
6. The radiator is mounted with suspension damping pads to ensure reliability under harsh and bumpy conditions; optional 50°C high-temperature package is available for high-temperature areas.

Convenient and considerate maintenance

1. Removable traction frame connecting ball head, easy to replace, the ball head can be adjusted according to the wear of the gap (adjusting shims), reducing user maintenance costs.
2. Replaceable bushings are standardized in the seven-hole connecting rod holes, which has good maintainability and reduces service time and cost.
3. External caliper disc brake, short braking distance, good braking effect, friction pads are common with Shankong loaders, easy to replace, high reliability.
4. Mold-forming engine cover, left and right door design, convenient for maintenance and repair.
5. Grease-free lubrication design for rear axle and balance box bearings, and chain adjustment-free design, which prolongs the maintenance cycle and saves time, money and labor.
6. Universalized design of front and rear wheel rims, interchangeable front and rear wheels, high utilization rate.

Technical Specification

4279*610mm Motor Grader Machine SEM 922F Cab Interior

1. The cab is located on the front frame with good visibility, and when folding, you can clearly see the inside of the front wheels and the position of the traction frame, gear ring, and shovel knife, which ensures the safety and accuracy of the operation.
2. Load-sensing hydraulic system provides precise cylinder speeds, easily realizing fine leveling and precise control.
3. Electro-hydraulic controlled seven-hole linkage mechanism automatically realizes one-touch pin change with high operating efficiency; the angle between the shovel blade and the ground can be better adjusted by changing the holes to complete special operations.
4. Adhering to Caterpillar's industry-standard joystick layout, with appropriate travel and spacing, low maneuvering force, and one-hand operation of multiple joysticks.
5. Spacious cab with mechanical suspension seat, standard high power air conditioning and multiple air vents to maximize operator comfort.
6. Front and rear adjustable multifunctional instrument panel, new dashboard, non-reflective, ergonomic requirements, improve driving experience.

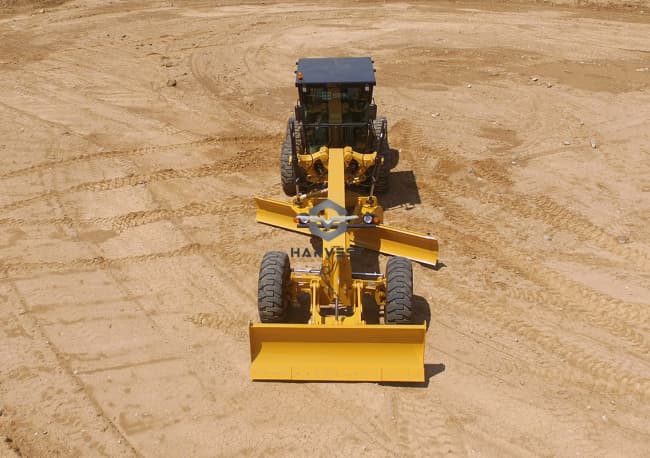

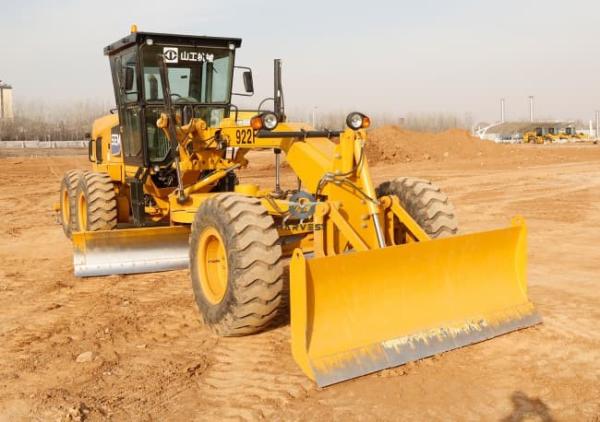

Details Photos of Motor Grader Machine 922F 6F/3R Gears With 5-Shank Ripper
