    1.2m3 Backhoe Loader Machine 388H With 4 in 1 Bucket For Sale In Russia

    Ask Lasest Price
    Brand Name : HARVEST
    Model Number : 388H
    Certification : CE/ ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    1.2m3 Backhoe Loader Machine 388H With 4 in 1 Bucket For Sale In Russia

    1.2m3 Backhoe Loader Machine 388H With 4 in 1 Bucket For Sale In Russia

    The backhoe loader is a versatile construction machine characterized by a loading bucket at the front end of the vehicle and a backhoe digging arm at the rear end of the vehicle. This design enables it to perform tasks such as excavation, loading, transportation and backfilling in a variety of construction projects. Key features:
    Versatility: Combining loading and digging functions in one vehicle allows it to be used for a wide range of jobs, reducing the need for other equipment.
    Mobility: Usually equipped with four-wheel drive, it has good off-road performance and can work in various terrain conditions.
    Ease of operation: Relatively easy to learn and operate, reducing the skills required of the operator.
    Economical: Backhoe loaders are more economical than purchasing a separate loader and excavator.


    Main Functions of Backhoe Loader 388H with 4 in 1 Bucket

    Backhoe loaders equipped with 4-in-1 buckets greatly expand their capabilities, making them even more versatile tools. A 4-in-1 bucket, also known as a 4-in-1 bucket or multi-purpose bucket, is essentially a bucket that can be configured into different modes to handle a variety of materials and tasks. Here are its main functions:

    • Gripping: similar to pliers or claws, it can grab irregularly shaped objects such as logs, rocks, pipes, waste, and more. This is very useful in site clearance, demolition work and material handling.
    • Loading: Like a standard bucket, it can be used to load dirt, sand, gravel and other bulk materials.
    • Bulldozing: The bucket can be partially opened to create a bulldozer-like plane for leveling the ground, backfilling ditches or moving materials.
    • Scraping: By precisely controlling the opening and closing of the bucket, it can be used to scrape the ground for fine leveling work.
    • Unloading: The bucket can be opened like a clamshell to dump or unload material into trucks, containers or designated areas.

    Product Parameter

    Parameter


    Operating Weight10500KG
    Overall Dimension (L*W*H)6450*2530*3120mm
    Wheel base2335mm
    Min. Ground Clearance450mm
    Bucket Capacity1.2m3
    Breakout Force47KN
    Loading lifting Capacity2500kg
    Bucket Dumping Height3050mm
    Bucket Dumping Distance870mm
    Digging Depth52mm
    Backhoe Capacity0.3 m3
    Max. Digging Depth3820mm
    Swing Angle of Excavator Grab180°
    Max. Pulling Force60KN

    ENGINE


    ModelYuchai
    TypeTurbocharging four-stroke
    Cylinder-Inside Diameter-Stroke4-108*132
    Rated Power75KW
    Rated Speed2200r/min
    Min.Fuel Consumotion230g/km.h
    Max. Torque400N.M
    Displacement4.837L

    TEERING SYSTEM


    Model of Steering DeviceBZZ5-250
    Steering Angle±36 °
    Min. Turining Radius6581mm
    Pressure of the System12Mpa

    AXLE


    ManufacturerFront xle: Yitu Kaichuang
    Rear Axle: Feicheng Axle Factory
    Main Transmission TypeDouble Reduction
    Final ReducerSingle Stage Final Reducer
    Rated Loader of Axle22.5t/18.5t

    TORQUE CONVERTER


    ModelYJ290
    TypeSingle-stage Three Elements
    Max. Efficiency84.40%
    Inlet Pressure0.4-0.65Mpa
    Outlet Pressure1.5Mpa-1.8Mpa
    Cooling MethodOil-cooling Pressure Circulation

    GEARBOX


    TypeFixed Shaft Power Transmission
    Oil Pressure of Clutch1373Kpa—1569 Kpa
    GearsTwo Gears Ahead, Two Gears Astern
    Max. Speed24Km/h

    TIRE


    Model14-17.5/19.5L-24
    Pressure of front wheel0.4Mpa
    Pressure of Rear wheel0.35Mpa

    BRAKE SYSTEM


    Service Brake

    Air Over Oil Caliper Brake

    (External Type, Self-regulation,Self -balance)

    Emergency BrakeOperation Power Implementing brake/Manual Operation Power Terminating Brak

    HYDRAULIC SYSTEM


    Digging Power of Excavator Grab50KN
    Digging Power of Dipper31KN
    Bucket lifting Time6.8s
    Bucket Lowering Time3.1s
    Bucket DischargeTime2.0s

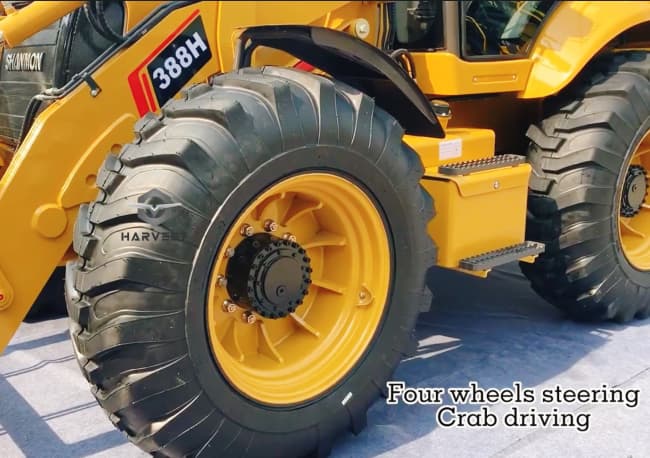

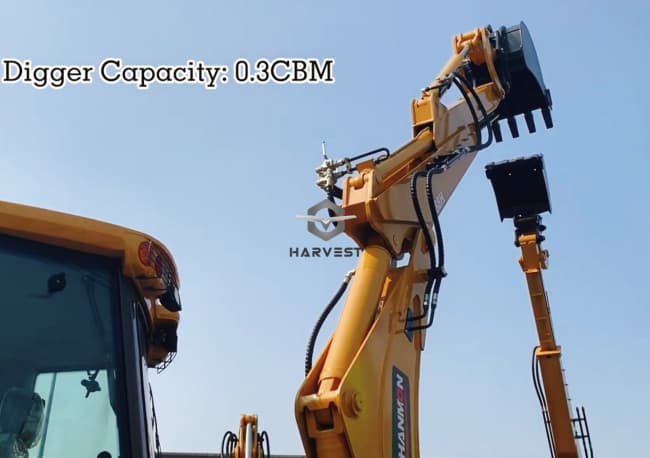

    Detail Photo Display of 1.2m3 Backhoe Loader 388H With 4 in 1 Bucket For Sale Near Me

    Quality 1.2m3 Backhoe Loader Machine 388H With 4 in 1 Bucket For Sale In Russia for sale
