    190hp Motor Grader Machine 4180D 3960mm Blade For Snow Removing In Russia

    Ask Lasest Price
    Brand Name : Liugong
    Model Number : 4180D
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    190hp Motor Grader Machine 4180D 3960mm Blade For Snow Removing In Russia

    190hp Motor Grader Machine 4180D 3960mm Blade For Snow Removing In Russia
    Cold winter, snowy, beautiful and at the same time bring some trouble to our life. Snow removal is one of the indispensable tasks in winter, but the traditional manual snow removal is inefficient, time-consuming and laborious. LiuGong motor grader can be your best snow removal partner, easy to deal with a variety of snow conditions. LiuGong motor grader is an efficient and reliable snow removal equipment. Equipped with advanced technology and a powerful power system, it can quickly and thoroughly clear snow from roads and grounds. Whether it is a small parking lot, sidewalks or large squares and roads, Liugong motor grader can easily cope with it, so that your snow removal work can be twice as effective with half the effort.

    Breakthrough Innovation, Leading the Way

    1. Patented five-column cab, 324° panoramic view.
    2. Unique working device mechanism, higher lifting height of shovel knife, can lift the knife directly on the truck.
    3. Large shovel angle adjustment range, smaller turning radius, adapt to more working conditions.

    High efficiency and reliable, the king of flat road

    1. Cummins engine, high quality ZF transmission, professional matching, green environmental protection, high efficiency output.
    2. Slewing bearing integral bridge, closed roller working device, equipped with 203 knife plate, easy to “open the big pile”.
    3. Patented frame structure, finite element depth optimization, easy to deal with extreme working conditions.

    Comfortable and easy to use, safety upgrade

    1. High-quality interior and integrated air-conditioning, creating a comfortable space.
    2. Optimized and reconstructed handling system, comfort increased by 30%.
    3. Intelligent housekeeper optimization, equipment dynamics under control.
    4. Standard LED work light, safer construction at night.

    Easy maintenance, worry-free

    1. The hood electro-hydraulic control lifts and tilts forward by 50°, making it easy to maintain the engine in all directions.
    2. Large frame articulation space, transmission, pump one-stop maintenance.
    3. Fuel tank low position design, refueling is super convenient.

    Technical Specification of Motor Grader Machine 4180D For Snow Removing In Russia

    Item
    4140D
    Basic parameters
    Engine model
    6BTAA5.9-C190
    Rated power/speed
    142 kW(190 hp)/2,200 rpm
    Overall dimension (standard)
    9140X2675X3380
    Total weight (standard)
    16050kg
    Tire specification
    17.5-25
    Ground clearance (front axle)
    602mm
    Wheelbase
    6230mm
    Performance parameters
    Maximum Travel Speed, fwd
    40 km/h
    Maximum Travel Speed, rev
    26.2 km/h
    Number of Speeds, fwd
    6
    Number of Speeds, rev
    3
    Front Axle, Wheel Lean Angle
    Left / right 18°
    Minimum Turning Radius
    7200 mm
    Steering Relief Pressure
    17.2 MPa
    Working parameters
    Maximum Draw Pull
    85 kN
    Cutting Pressure
    7600kg
    Moldboard Standard Length
    3960 mm
    Moldboard Standard Thickness
    19mm
    Moldboard Standard Height
    610 mm
    Scrape knife
    Bank Cut Angle
    28~74°
    Moldboard Lift Above Ground
    600 mm
    Moldboard Side Shift, left/right
    660 / 740 mm
    Maximum Sloping Angle
    90°
    Cutting Depth
    680 mm
    Circle Rotation
    360°
    Oil filling amount
    Coolant
    35L
    Fuel tank
    348L
    Engine
    18L
    Transmission
    33L
    Hydraulic oil
    115L
    Drive axle
    90L

    How does the motor grader 4180D in Russia remove snow?

    • First, we have great snow removal capabilities. Whether it's heavy snow piles or icy roads, we can handle it with ease. Its unique design and powerful power system ensure excellent snow removal effect. Equipped with professional snow removal knives can quickly clear the snow on the road to ensure the smoothness and safety of the road.
    • Secondly, we also have excellent adaptability. Whether it's a city road, a highway or a country lane, LiuGong grading equipment is capable of handling it. Its powerful power system and stable performance make it perform well in all kinds of road conditions. Whether it's a flat road or a steep slope, LiuGong grading equipment can run stably, ensuring your safety on the road.
    • In addition, we use high-quality materials and advanced manufacturing processes to ensure the stability and reliability of the machine. Whether in harsh weather conditions or long hours of continuous operation, LiuGong grading equipment can maintain excellent performance and provide you with long-lasting snow removal services.

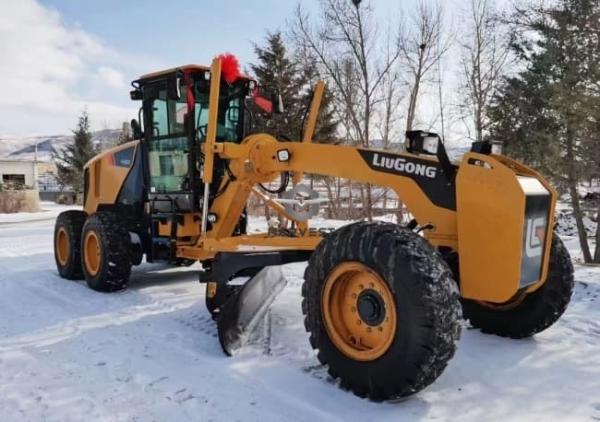

    Detailed Photos of The 4180D For Snow Removing In Russia
