    4m3 Self Loading Mixer HK4.0 with 270° Rotary Discharge Sale To Africa

    Ask Lasest Price
    Brand Name : Harvest
    Model Number : HK4.0
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    4m3 Self Loading Mixer HK4.0 with 270° Rotary Discharge Sale To Africa

    4m3 Self Loading Mixer HK4.0 with 270° Rotary Discharge Sale To Africa
    As a member of concrete production line, self-feeding concrete mixer truck is a kind of equipment integrating concrete mixing, transportation and unloading. Different from traditional concrete mixer truck, self-feeding concrete mixer truck does not need to be weighed with the help of on-site batching machine, the ratio of feed, cement, sand and stone in its mixing cylinder is determined in advance, the truck weighs and feeds automatically, which reduces manual operation and improves production efficiency.

    Self-loading concrete mixer has the following advantages:

    1. High automation: a series of working steps such as automatic feeding, automatic batching, automatic feeding, automatic mixing, automatic unloading, etc., which reduces the manual operation and completes the full-automatic production of concrete and improves the production efficiency.
    2. Uniform mixing: the truck has an efficient mixer, which can fully mix the feed, cement, sand and stone to ensure the quality of concrete.
    3. Energy-saving and environmental protection: the self-feeding concrete mixer truck adopts a high-efficiency and environmentally friendly power system, low noise, low emission, energy-saving and environmental protection.

    The working range of the self-loading concrete mixer:

    • Road Repairing, Road Hardening

    Automatic loading mixer truck is a good tool for road repair and hardening. After mixing the concrete, it can unload the material while working in the scale of 270 degrees around the body of the car, and the workers only need to push the concrete flat. Compact and sensitive and reasonable body planning, four-wheel drive tires and other applications can make the mixer truck in the mountains, plateaus, grasslands, countryside, rugged roads “steady walking”.

    • Building houses, laying foundations

    Global economic development, infrastructure construction is gradually improved, the former low hut is gradually turned into a grand house, concrete automatic loading mixer truck in this production to play this effect, laying the foundation, supplying the concrete needed to build houses.

    • Production of flooring

    Square, playgrounds and other public areas of the floor production is also a concrete self-feeding mixer truck hand, the body in a large area of the scale of stop and go, churning unloading, power not to mention how high.
    Other, building bridges, tunnels, slopes, guardrails and other infrastructure is also self-feeding mixer trucks, high automation programs, no electricity, very suitable for mountainous areas, plateaus, grasslands, such as road building, building houses, building bridges, tunnels, flooring, slopes, guardrails and other production.

    Specification of Front Wheels Steering Self Loading Mixer HK2.5

    ModelHK4.0
    TypeIntegral frame chassis movable, self loading, mixing, transporting

    Function

    Concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
    ProductivityBatch≤15mins, 4 batchs/hour
    Driving4 x 4
    SteeringRear steering

    Engine

    Yunnei engine: four-cylinder 2200rpm, 92kw

    SpeedHigh speed: 36.5km/h; Low speed: 6.5km/h

    Gear number

    Three forwards, three backwards

    Fuel consumption

    Idle state 2L-3L, working state 6L-8L.

    Tire16/70-24(Steel wire tyre)
    Drum

    Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic meters

    Spiral blade in tank

    Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right

    Mixing tank 70°discharges

    The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
    Tipping chute

    Equipped with 2 chute for detachable to increase discharging length

    ShovelShovel capacity: 0.55m³

    Bucket discharge switch

    Hydraulic gate, electric control

    Operation handleElectric control button four-way guide handle

    Moving hydraulic

    Pump: Denghong

    Torque converter(HANK)

    Work hydraulic

    Pump/valve: Denghong

    Mixing system

    Speed reducer:(HANK)

    Mixing motor(ZHENJIANG DALI)

    Drive axleLiufeng

    Water supply

    Hydraulic driving self-priming pumps.

    High-pressure water pump wash

    High-pressure water pump wash

    Weighing system

    Electronic weighing system (language optional)

    Voltage

    Battery 24V-100A 2 pieces

    Hydraulic oil boxTankage180L, Summer: NO68 hydraulic oil, winter: NO46 hydraulic oil, very cold zone: NO35 hydraulic oil

    Water tank capacity

    520L

    Diesel tank capacity

    180L

    Whole weight

    Complete vehicle kerb mass 7600kg

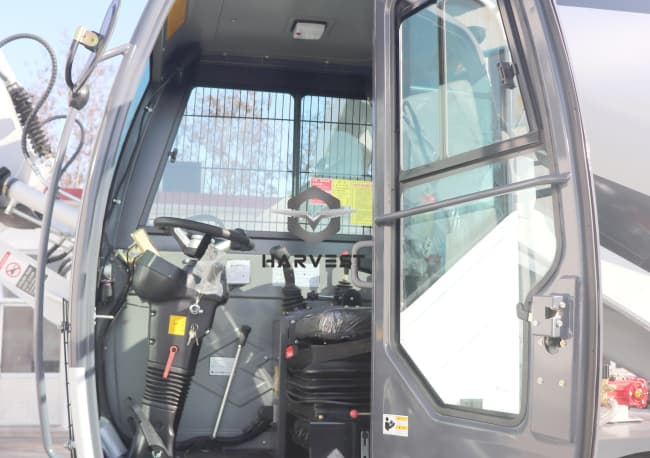

    CabPrevent falling objects cab
    Adjustable steering wheel
    Adjustable seat
    Fire extinguisher
    Astern image
    Alarm lampStandard configuration
    RadioStandard configuration
    A/COptional
    Escape hammerStandard configuration

    Astern sound prompt

    Standard configuration

    Walking control mode

    Standard: Configuration mechanicalOptional:Electric control

    How to use self loading concrete mixer truck correctly?
    Step 1: Secure the concrete mixer truck to the ground
    When making concrete, the first step is to secure the mixer truck to the ground. This is very important because if the car is not stabilized, unnecessary dangers will occur when mixing. The mixer truck must be stabilized when in use.
    Step 2: Add Aggregates
    Adding aggregates is the first step in concrete production. Add the aggregate to the mixer truck and start mixing.
    Step 3: Add Water
    Add water. The amount of water added should be controlled in the right amount. Otherwise it will affect the quality of concrete. Add the right amount of water while mixing.
    Step 4: Add cement
    Add cement. The cement used in most concrete mixers is silicate cement. The mixer should add the required amount of cement for the concrete.
    Step 5: Start Mixing
    Start mixing the mixture through the mixer of the self-feeding concrete mixer truck. It is important to mix the mixture for the time required so that the quality of the concrete will be guaranteed. Once the mixing is done, you can start transporting the concrete.


    Standard Equipment of the Self Loading Mixer HK4.0 Sale To Africa

    Integral frame, rear wheel steering, maximum discharge capacity 4m3, 280 split torque converter.


    Forward and backward hydraulic control hopper, reversing video, can be zeroed digital water meter, electronically controlled hydraulic pump pumping, 20T hydraulic wheel drive axle.


    Deluxe cab, waterproof wiring harness of the whole vehicle, broken window hammer, fire extinguisher, single handle operation, seat belt, high and low speed fan, adjustable seat, key start off.


    High and low speed mixing function, 270° tank rotating discharge, electronic weighing system, cold and warm air conditioning.
